Place of Origin: | CHINA |
---|---|
Brand Name: | OEM ODM |
Certification: | CE LVD EMC |
Model Number: | S2301RF |
Minimum Order Quantity: | 100pcs |
Price: | negotiation |
Packaging Details: | 1 piece in color box,8pcs in innex box,2 innex boxes in 1 out carton |
Delivery Time: | 30 DAYS |
Payment Terms: | T/T |
Supply Ability: | 100000/MONTH |
Material: | OMRON Relay | VOLT: | 16V |
---|---|---|---|
AMP: | 10A | Color: | White |
Blacklight: | Bule Or Orange | Programmable: | Non-programmable |
High Light: | wireless house thermostat,wireless boiler thermostat |
Mode:S2301 RF
Transmitter: Receiver:
POWER:2*AAA size battery AUTO/MANUAL Switch
Temperature range:5℃-35℃ in 0.5℃ LED system indicator
Control temp.range:10℃-30℃ in 0.5℃ Contact rating:8(2)A 230VAC Max
868Mhz for more stable communication
HEAT/OFF/COOL switch
Bat-low indicator

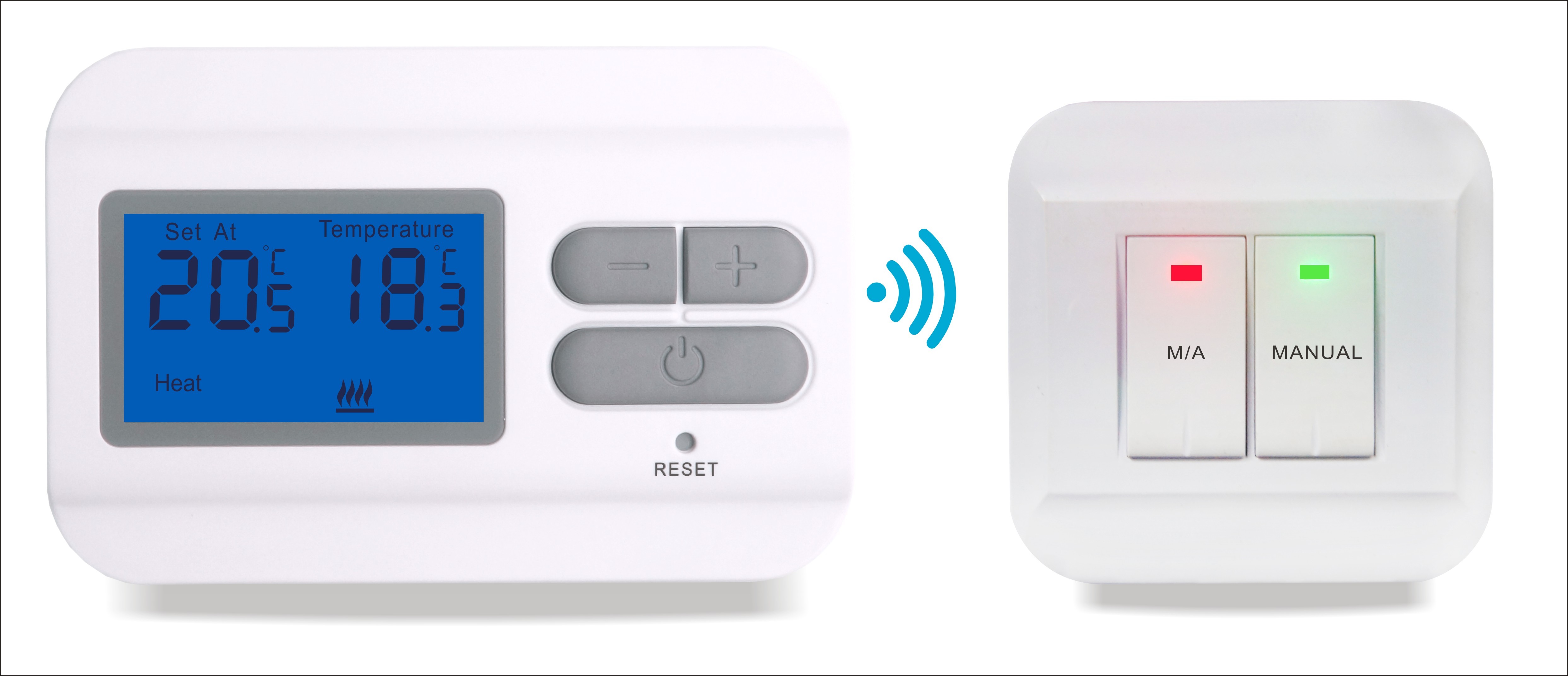

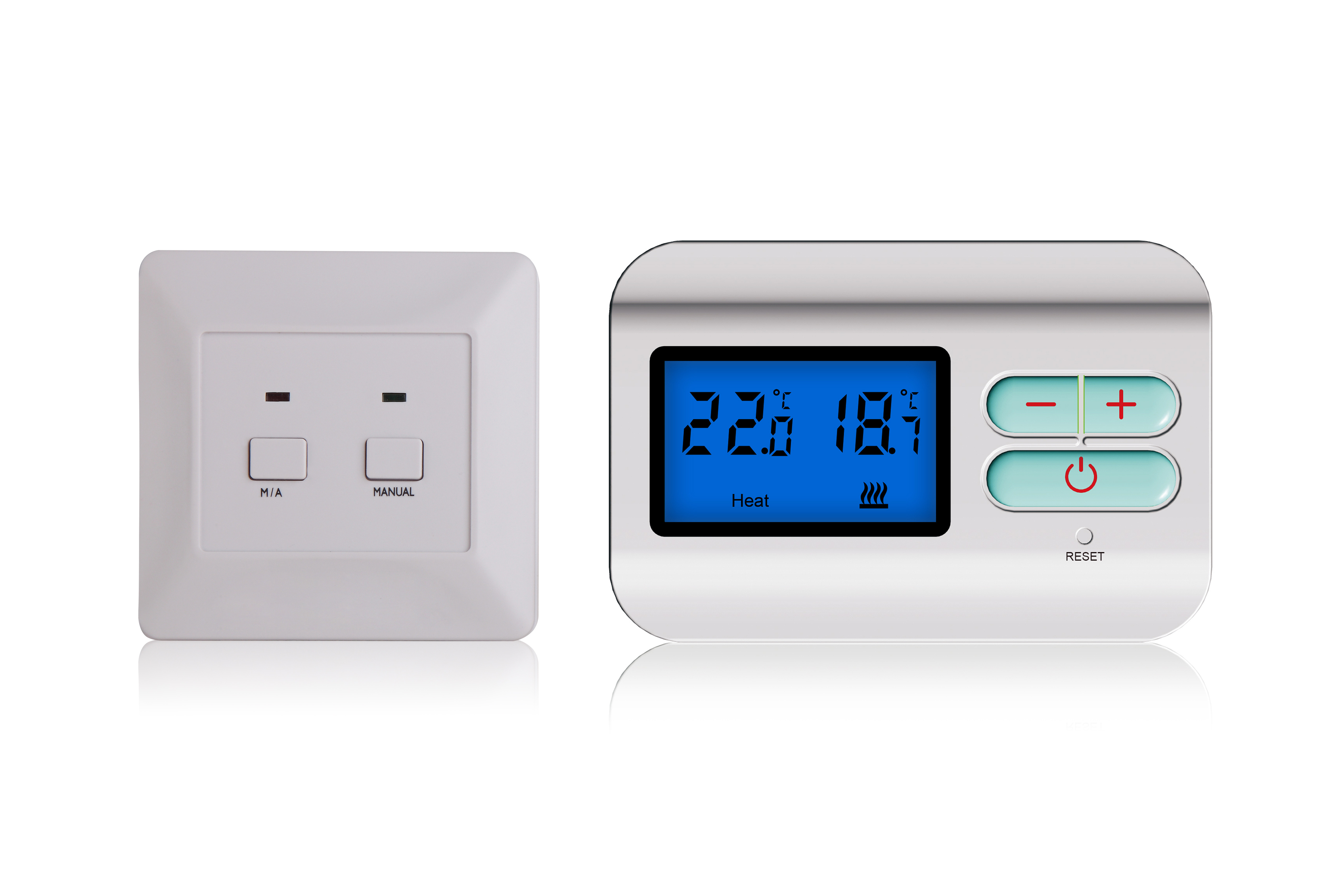

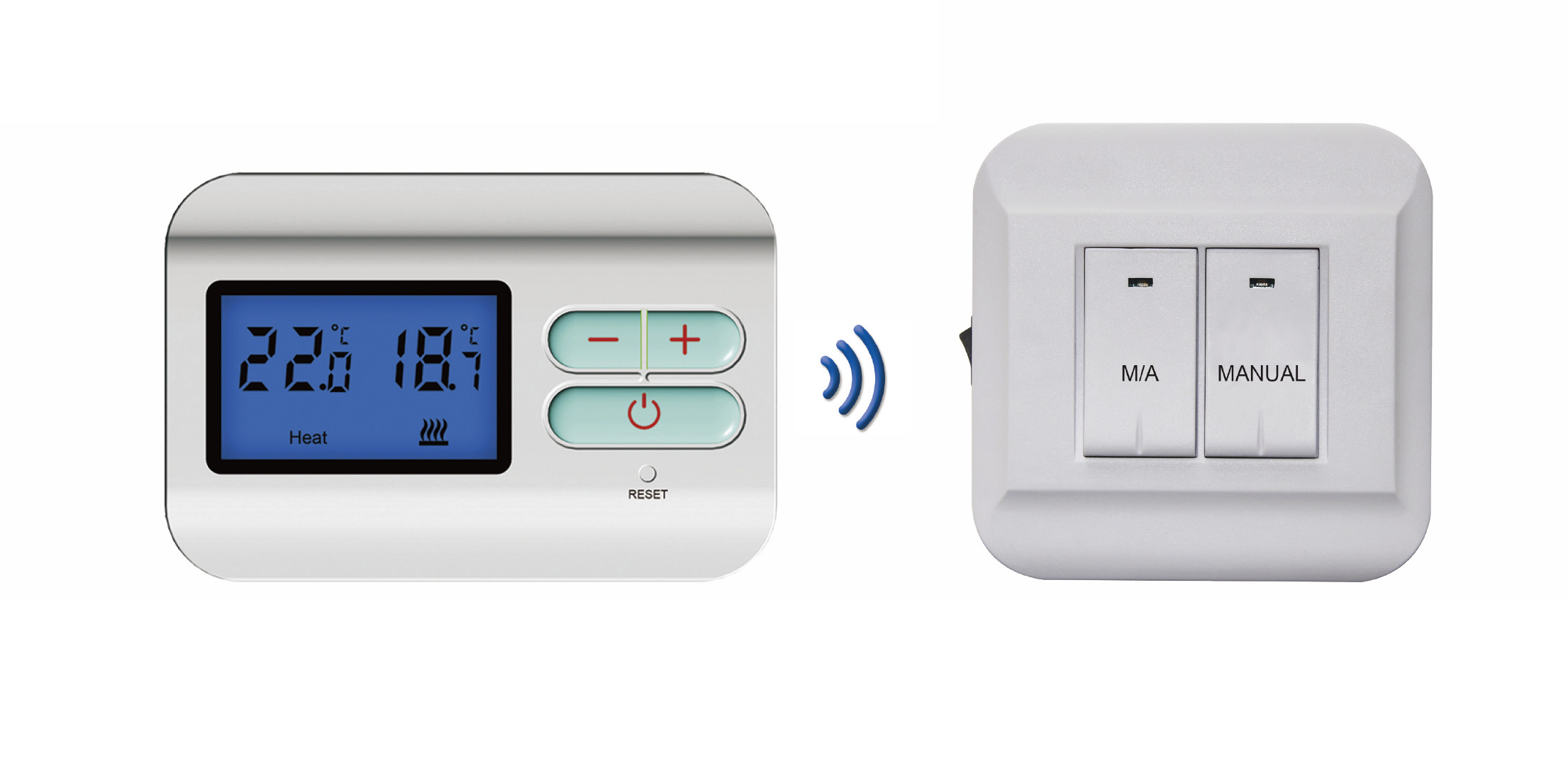

· Wireless Room Thermostat
Transmitter:
· 868Mhz with more stable communication
· Blue backlight
· HEAT (Heating) / COOL (Cooling) / OFF (Frost Protection)
· Wall mount or base mount
· ON/OFF switch
· Room Temperature Calibration adjustment (in -3~+3)
· Bat-low indicator
· Battery power supply
Receiver:
· AUTO/MANUAL Switch
· ON/OFF switch
· LED system indicator
· Power supply: 230V AC
· Contact rating:6(2)A 250VAC Max
Model No.: |
S2301 RF |
Transmitter: |
|
Operating Frequency: |
868.35 MHz |
Programmability: |
Non-Programmable |
Temperature Range (°C): |
0°C-40°C in 0.1°C |
Control Temp.Range (°C): |
5°C-35°C in 0.5°C |
Temp.Meas.Accuracy: |
±1°C (at 20°C) |
Defrosting Temperature: |
+7°C |
Power Method: |
2 x AAA 1.5V Lithium batteries |
Dimensions: |
118 x 80 x 26 mm (without holder) |
Receiver: |
|
Power Consumption: |
6W |
Power Supply Voltage: |
230V AC, 50Hz |
Switchable Current: |
6 A (2 A inductive load) |
Transmission Distance: |
approx. 50 m in open terrain |
Dimensions: |
86 x 86 x 26 mm |
