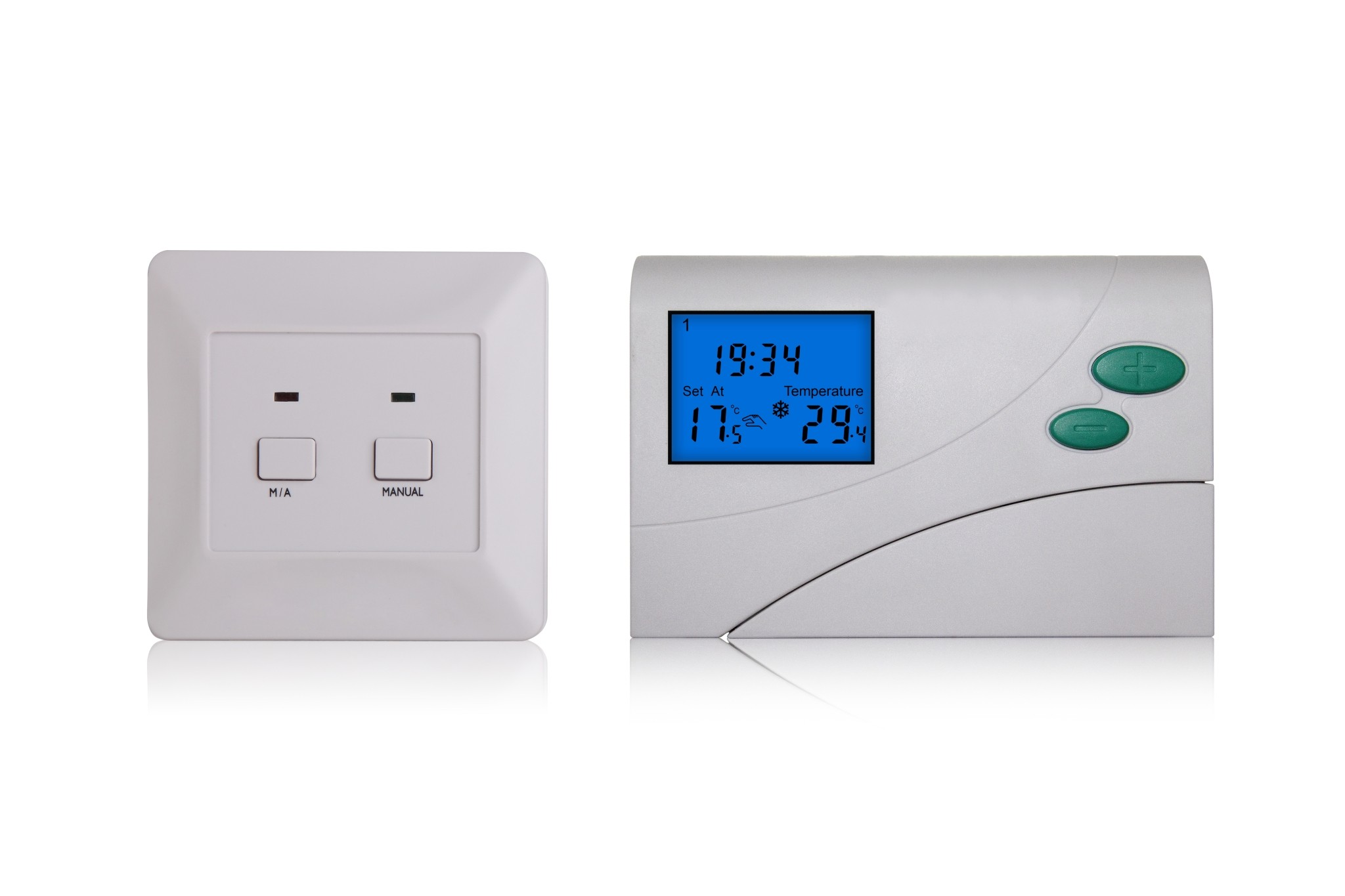

Electric Wall Heater Wireless Room Thermostat For Electric Floor Heating
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM ODM |
| Certification: | CE LVD EMC ROHS |
| Model Number: | S2304RF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 1PCS in color box,8pcs in innex carton,2 innex carton in 1 out carton |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000SET PER MONTH |
|
Detail Information |
|||
| VOLT: | 230V | MHZ: | 868MHZ |
|---|---|---|---|
| Material: | OMRON Relay | Color: | White |
| Programmable: | Programmable | Blacklight: | Bule Blacklight & Orange Blacklight |
| High Light: | wireless house thermostat,wireless boiler thermostat |
||
Product Description
Model S2307 RF
Transmitter: Receiver:
7 Day programmable AUTO/MANUAL Switch
6 Time & 6 Temp,per day LED system indicator
LED Blue backlight Contact rating: 8(2)A 230VAC Max
2*AA A size battery
Keypad lockout
HEAT/COOL mode switch
868Mhz for more stable communication

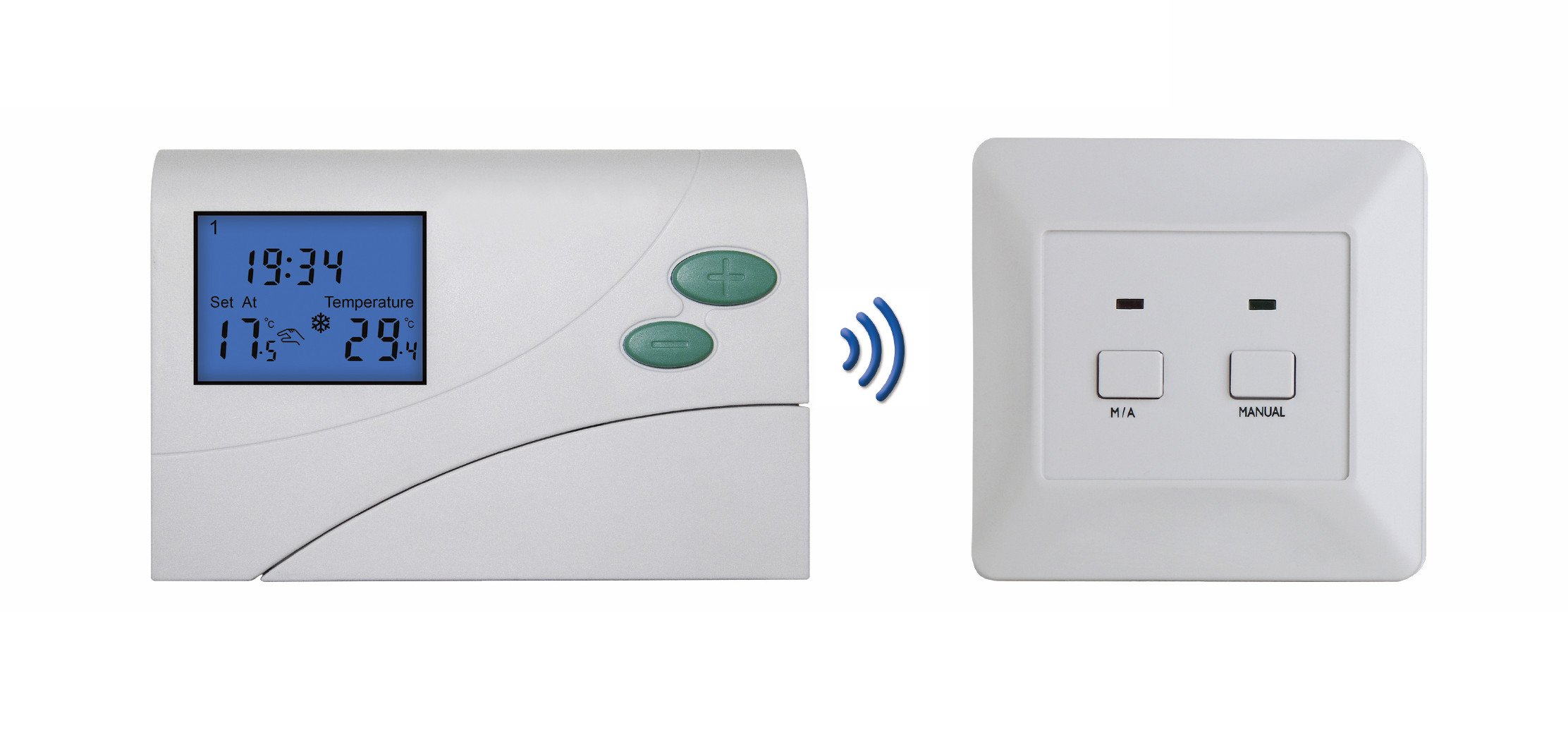

· Wireless Room Thermostat
Transmitter:
· 7 Day programmable
· Blue backlight or orange backlight
· HEAT (Heating) / COOL (Cooling)
· 6 Time & 6 Temp,per day
· Manual override mode
· 868Mhz with more stable communication
· Wall mount or base mount
· Room Temperature Calibration adjustment
· Lock key function
· Battery power supply
Receiver:
· AUTO/MANUAL Switch
· ON/OFF switch
· LED system indicator
· Power supply: 230V AC
· Contact rating:6(2)A 250VAC Max
Applications:
1. HVAC System
2. Building ventilation systems
3. Industry ventilation systems
4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication
heat/cool
5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%
6. All other ventilation systems
|
Model No.: |
S2307 RF |
|
Transmitter: |
|
|
Operating Frequency: |
868.35 MHz |
|
Programmability: |
Programmable |
|
Temperature Range (°C): |
0°C-40°C in 0.1°C |
|
Control Temp.Range (°C): |
5°C-35°C in 0.5°C |
|
Temp.Meas.Accuracy: |
±1°C (at 20°C) |
|
Storage Temperature: |
-10°C to +60°C |
|
Power Method: |
2 x AAA 1.5V Lithium batteries |
|
Dimensions: |
119 x 80 x 26 mm (without holder) |
|
Receiver: |
|
|
Power Consumption: |
6W |
|
Power Supply Voltage: |
230V AC, 50Hz |
|
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
|
Switchable Current: |
6 A (2 A inductive load) |
|
Transmission Distance: |
approx. 50 m in open terrain |
|
Dimensions: |
86 x 86 x 26 mm |
