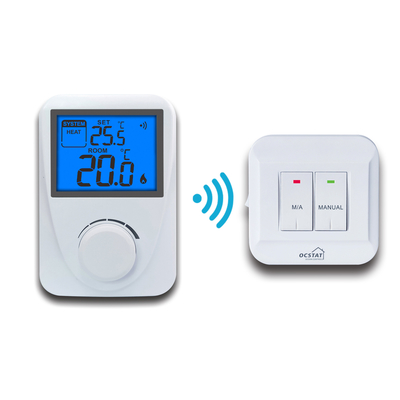

White Smart Household Wireless Room Thermostat For Underfloor Heating

Basic Information
Place of Origin: China
Brand Name: OCSTAT
Certification: CE, UL, ROHS, FCC, CSA
Model Number: S2601RF
Minimum Order Quantity: 100 Pcs
Price: USD 25- 30/ pcs
Packaging Details: Carton
Delivery Time: 5-40 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pcs/ Month
Detail Information
Material: ABS Sensor: NCT Sensor
Relay: Omron Contact Resistance: ≤50 MΩ
Voltage: 24 V Warranty: 1 Year
Programmability: Non-Programmable Display: LCD Touch Screen Display
Backlight: White/ Blue/ Various Color: White/Customized
High Light:

wireless controlled thermostat


wireless boiler thermostat

Product Description


White Smart Household Programmable Wireless Underfloor Heating Room Thermostat



Product Describtion:

The thermostat S2601RF is supplied with a wall-fixing frame, base and a receiver (surface-mounted), you Can  placed on the desk or anywhere that you use convenice to detect and control the temperature of an area of the user's choices. it is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.


• Large, easy to ready clear LCD display
• Various backlight color optional
• HEAT (Heating) / COOL (Cooling) / OFF (Frost Protection)
• Room Temperature Calibration adjustment (in -3~+3°C)
• Switching sensitivity adjustable
• Large dial adjustable button
• Simple to use
• Easy installation

Product Specification:

Model No: ST2601RF
Switchable Voltage: 24 V AC / DC,...250 V AC; 50 Hz
Switchable Current: 6 A (2 A inductive load)
Programmability: Non-Programmable
Temperature Range (°C): 0°C-40°C in 0.1°C
Control Temp.Range (°C): 5°C-35°C in 0.5°C
Temp.Meas.Accuracy: ±1°C (at 20°C)
Power Source: DC 2 x AAA 1.5V Alkaline batteries
Dimensions: 130 x86 x30 mm



Power Supply: 230VAC, 50HZ
Operating Frequency: 868.35MHZ
Transmission Distance: approx. 200m in open terrain
Consumption: 6W
Maximum Load: 6(2)A, 230V
Dimensions: 86 x 86 x 26 mm


Product Sence:


White Smart Household Wireless Room Thermostat  For Underfloor Heating 0


Product Detailed:

White Smart Household Wireless Room Thermostat  For Underfloor Heating 1

What we are manufacturing?


  • 1. Wireless RF/Wired thermostat
  • 2. Programmable/Non-programmable thermostat
  • 3. Touch Screen/Dail/Push Button thermostat
  • 4. Timer/Programmable/Humidity thermostat
  • 5. Pipe/Cylinder Control
  • 6. Ventilation Control
  • 7.Underfloor Heating Control
  • 8. Heating System Control Center
  • 9. Provide OEM/ODM service to worldwide customer, including manufacturing, design,engineering and tooling.



  • Trade Terms:FOB ,CIF ,CFR,EXW,DDP
  • Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
  • Delivery time:1-7working days for Sample, 1-40 for bulk order
  • Packing:Neutral carton,Wooden case for large size
  • Shipping:By sea,by air and by express delivery


About Us


Ocean Controls Limited was founded by an industrial engineer with 15 years experience in design and manufacturering of top-end electronic room thermostats.We provide OEM/ODM services to worldwide customers, including manufacturing, design,engineering and tooling.

White Smart Household Wireless Room Thermostat  For Underfloor Heating 2


White Smart Household Wireless Room Thermostat  For Underfloor Heating 3



Q1. Can I place sample order first?

A: Yes. We will quote you different prices for small, medium and large qty. You can order with different prices for different qty.


Q2. How could I pay them?

A: T/T, PayPal and Western Unionare preferred, so just tell us which is easier to you. Then we will send you our bank details. Or as your requirements.


Q3. How to place the order?

A: Please send us your purchase order by email, Trade Manager or Skypeor you can ask us to send you a Performa Invoice for your order.


Q4. How long can I get my order?

A: For samples, we will finish production within 3-4 working days. For bulk orders, usually 25 working daysand also depend on your design.


Q5. Can you customize according to our designs and put our logo on the products?

A: Yes, we support both standard and customized productsand can put your logo on the products. Our experienced R&D team will support technical questions.
