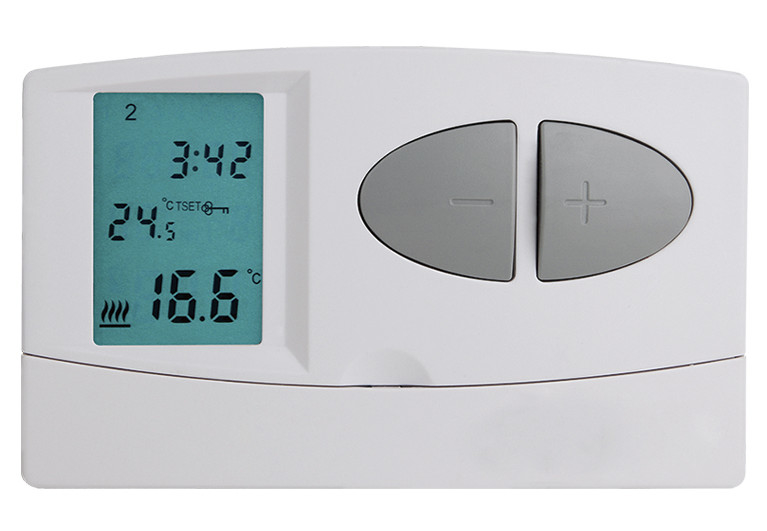

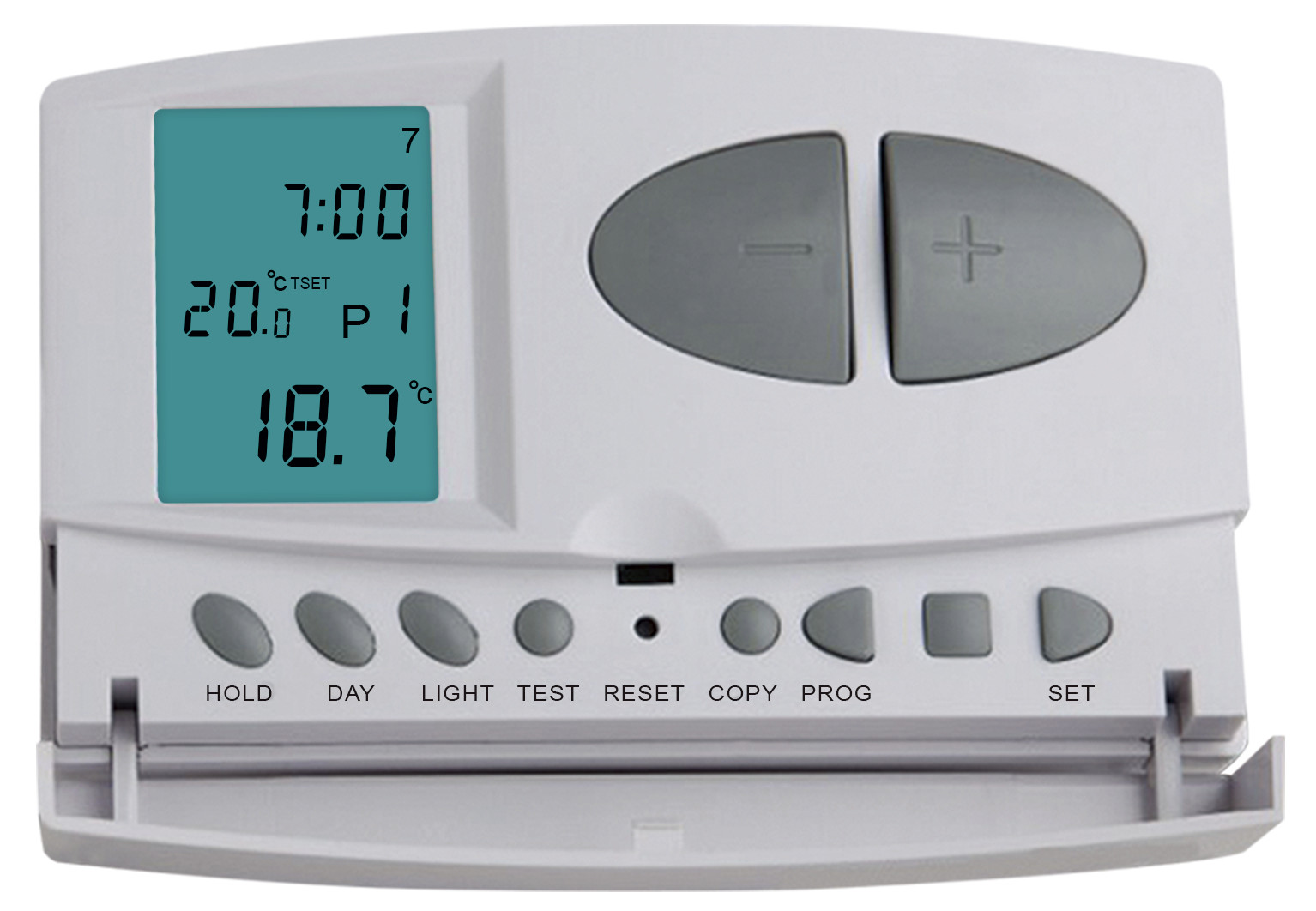

Heat Only Digital Programmable Thermostat With Heat Pump And Large Screen

Basic Information
Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC
Model Number: Q7
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1 piece in color box,8pcs in innex box,2 innex boxes in 1 out carton
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detail Information
Color: White Votl: 16V
Programmable: Programmable Power: 2*AAA Size Battery
Contact Rating: 8(2)A 230VAC Max Material: OMRON Relay
High Light:

heat pump programmable thermostat

,

digital fan coil thermostat


Product Description



 Model :Q7

1. 7 Day programmable

2. 6 Time & 6 Temp,per day

3. EL back light

4. Manual override mode

5. 2*AA size battery

6. Contact rating: 8(2)A 230VAC Max

Model No.:

Q7

Switchable Voltage:

24 V AC / DC,…250 V AC; 50 Hz

Switchable Current:

8 A (2 A inductive load)

Programmability:

7 Day Programmable

Temperature Range (℃):

5℃-35℃ in 0.5℃

Control Temp.Range (℃):

10℃-30℃ in 0.5℃

Temp.Meas.Accuracy:

±0.5°C

Sensitivity:

±0.2°C / ±0.3°C

 Storage Temperature:

-10°C to +60°C

Power Method:

2x1.5 V AA alkaline batteries (LR6 type)

Power Consumption:

1.3 mW

Dimensions:

130 x 80 x 35mm

Temp. Sensor Type:

NTC 10 kΩ ±1% at 25°C
