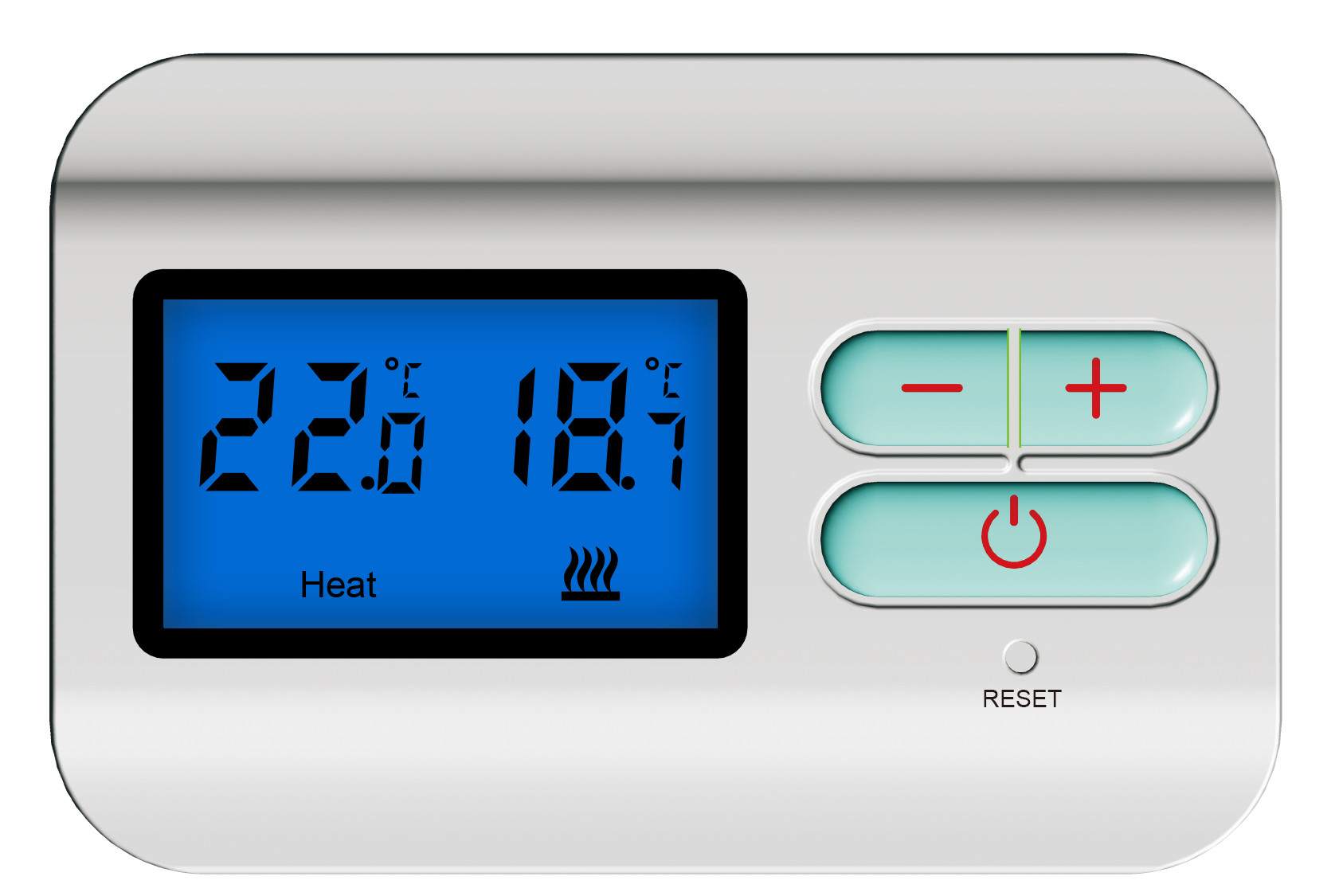

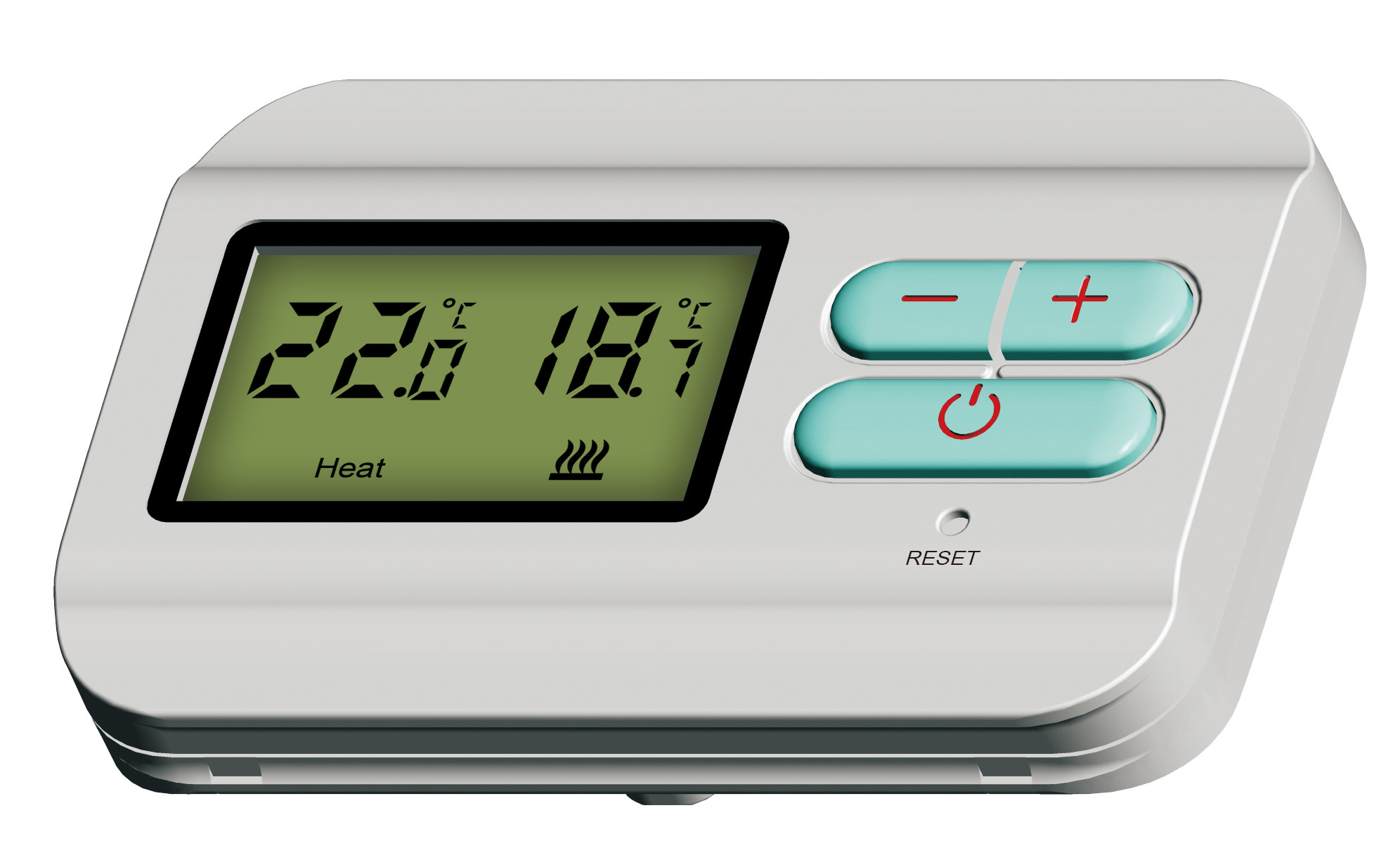

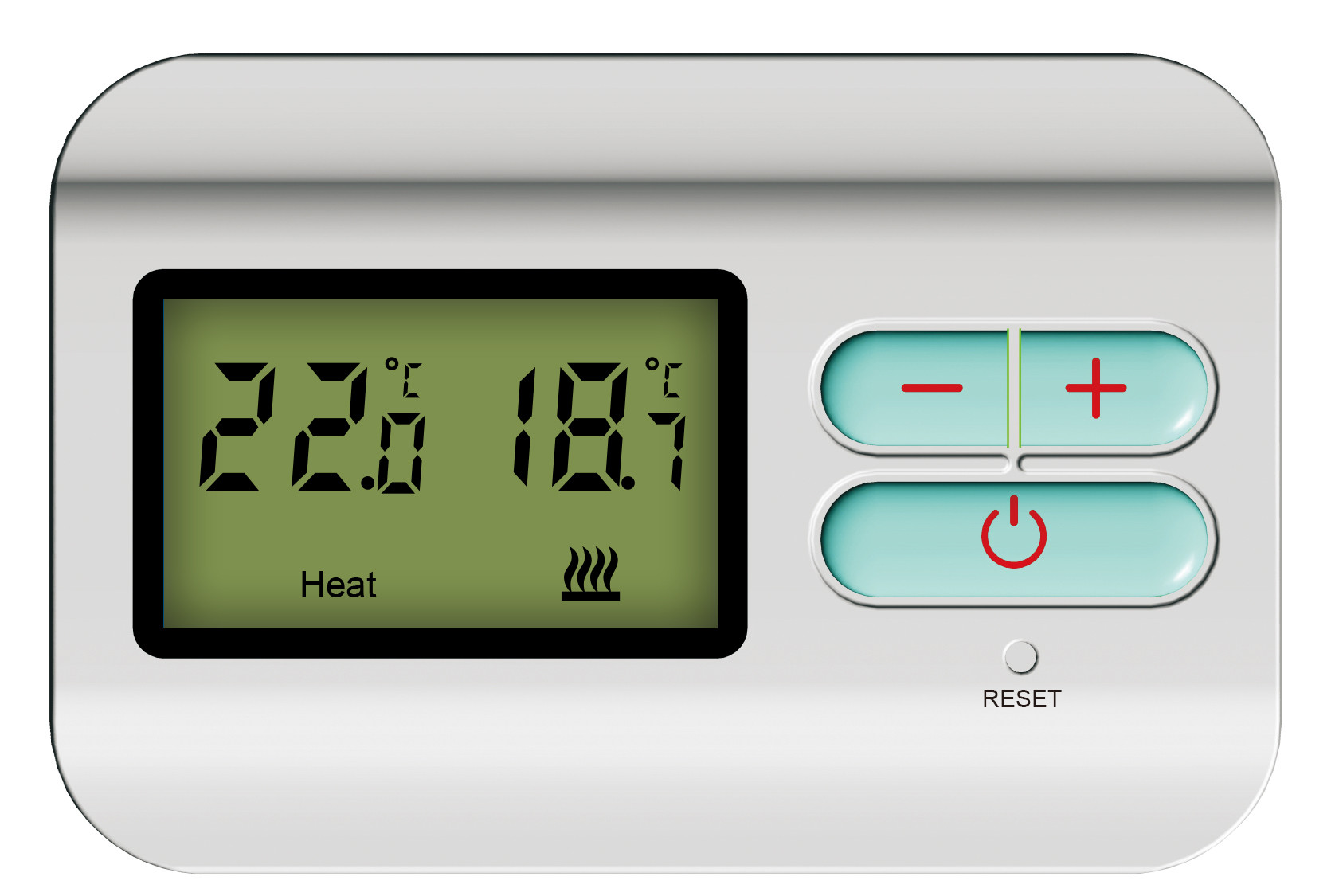

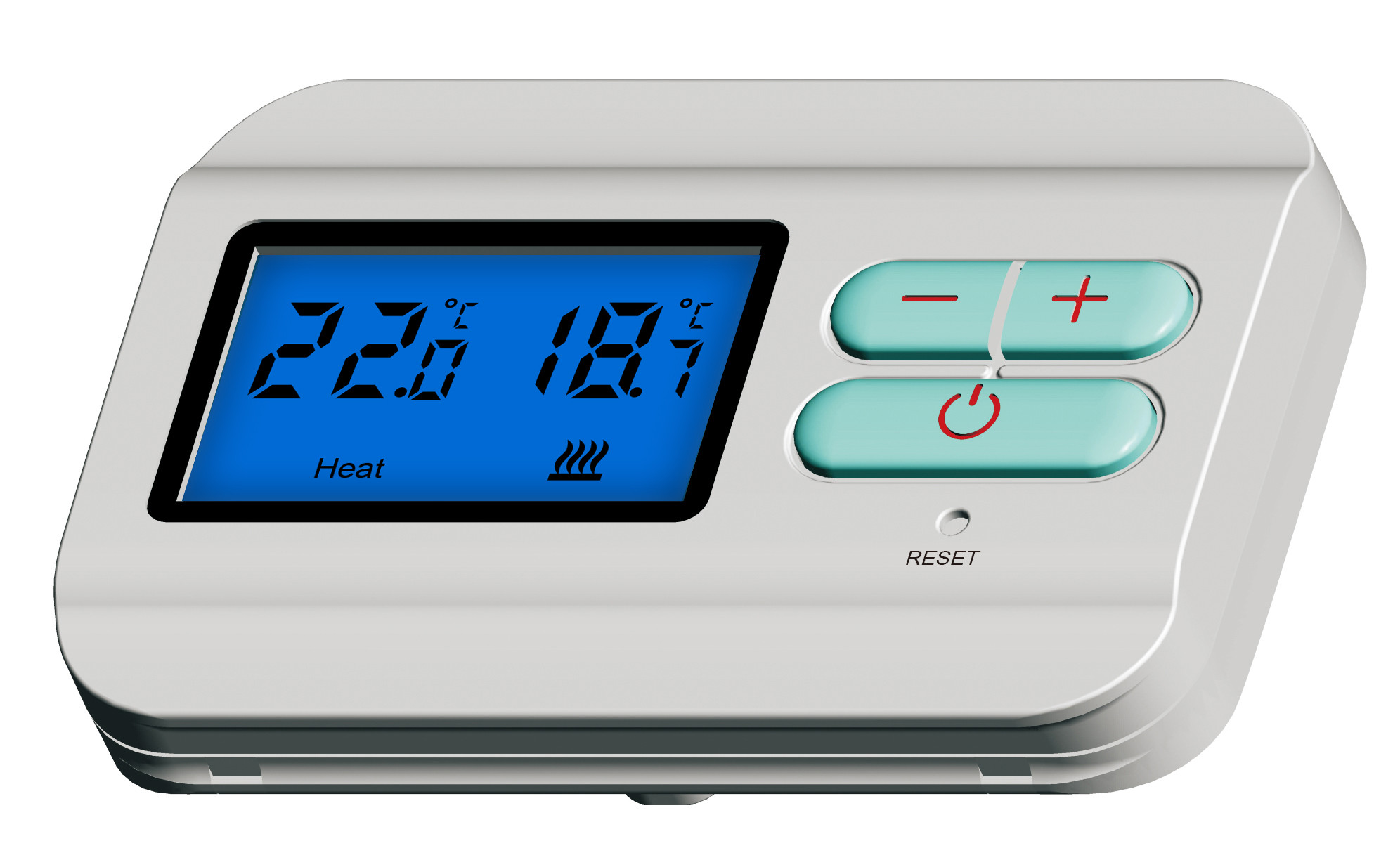

Wired HVAC Thermostat Non - Programmable For Radiant Floor Heating elcecronic digital room thermostat
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM ODM |
| Certification: | CE LVD EMC |
| Model Number: | S2301 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | I piece in color box,8pcs in innex box,2 innex boxes in 1 out carton |
| Delivery Time: | 30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000/MONTH |
|
Detail Information |
|||
| Material: | OMRON Relay | VOLT: | 16V |
|---|---|---|---|
| Color: | White | Programmable: | Non Programmable |
| Contact Rating: | 8(2)A 230VAC Max | POWER: | 2*AAA Size Battery |
| High Light: | heat only programmable thermostat,air conditioning thermostats |
||
Product Description
|
Model No.: |
S2301 |
|
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
|
Switchable Current: |
6 A (2 A inductive load) |
|
Programmability: |
Non-Programmable |
|
Temperature Range (°C): |
0°C-40°C in 0.1°C |
|
Control Temp.Range (°C): |
5°C-35°C in 0.5°C |
|
Temp.Meas.Accuracy: |
±1°C (at 20°C) |
|
Defrosting Temperature: |
+7°C |
|
Power Method: |
2 x AAA 1.5V Lithium batteries |
|
Dimensions: |
118 x 80 x 26 mm |
Applications:
1. HVAC System
2. Building ventilation systems
3. Industry ventilation systems
4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication heat/cool
5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%
6. All other ventilation systems
|
Model No.: |
S2301 |
|
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
|
Switchable Current: |
6 A (2 A inductive load) |
|
Programmability: |
Non-Programmable |
|
Temperature Range (°C): |
0°C-40°C in 0.1°C |
|
Control Temp.Range (°C): |
5°C-35°C in 0.5°C |
|
Temp.Meas.Accuracy: |
±1°C (at 20°C) |
|
Defrosting Temperature: |
+7°C |
|
Power Method: |
2 x AAA 1.5V Lithium batteries |
|
Dimensions: |
118 x 80 x 26 mm |
Features:
• Large LCD display
• Blue backlight
• HEAT (Heating) / COOL (Cooling) / OFF (Frost Protection)
• Wall mount
• ON/OFF switch
• Room Temperature Calibration adjustment (in -3~+3)
• Bat-low indicator • Battery power supply Specification:
Switchable Voltage: 24 V AC / DC,…250 V AC; 50 Hz Switchable Current: 6 A (2 A inductive load) Programmability:non-Programmable
Temperature Range (°C): 0°C-40°C in 0.1°C Control Temp.Range (°C): 5°C-35°C in 0.5°C Temp.Meas.Accuracy: ±1°C (at 20°C) Defrosting Temperature: +7°C
Power Method: 2 x AAA 1.5V Li
Advantage
1. Competitive price and stable quality.
2. Deliver promptly.
3. 1:1 replacement for defective in materials or workmanship.
4. Release new products regularly.
