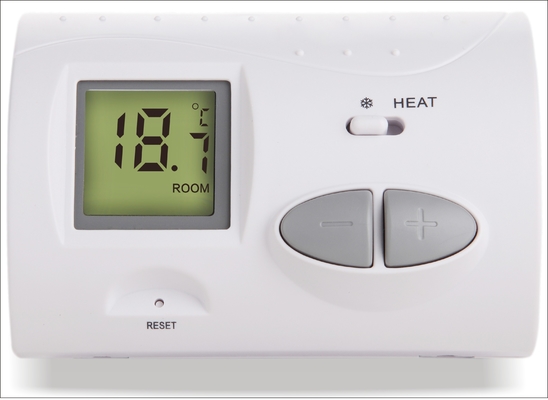

Digital Underfloor Heating Thermostat DC / Thermostat For Heat Pump elecronice or gas room thermostat line voltage

Basic Information
Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC ROHS
Model Number: Q3
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1PCS in color box,8pcs in innex carton,2 innex carton in 1 out carton
Delivery Time: 30 WORK DAYS
Payment Terms: T/T
Supply Ability: 100000SET PER MONTH
Detail Information
VOLT: 230V MHZ: 868MHZ
Material: OMRON Relay Color: White
Programmable: Non Programmable Blacklight: No Blacklight
High Light:

underfloor heating wireless thermostat

,

underfloor heating programmable thermostat


Product Description





 Model Q3

Transmitter:                                                     Receiver:

1. POWER:2*AA size battery                             1. AUTO/MANUAL Switch

2. Temperature range:5℃-35℃ in 0.5℃           2. LED system indicator

3. Control temp.range:10℃-30℃ in 0.5℃         3. Contact rating:8(2)A 230VAC Max

4. 868Mhz for more stable communication

5. ON/OFF switch

6. Bat-low indicator



Applications:

1. HVAC System

2. Building ventilation systems

3. Industry ventilation systems

4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication heat/cool

5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%

6. All other ventilation systems



Model No.:

Q3

Switchable Voltage:

24 V AC / DC,…250 V AC; 50 Hz

Switchable Current:

8 A (2 A inductive load)

Programmability:

Non-Programmable

Temperature Range (℃):

5℃-35℃ in 0.1℃

Control Temp.Range (℃):

10℃-30℃ in 0.5℃

Temp.Meas.Accuracy:

±0.5°C

Sensitivity:

±0.2°C / ±0.3°C

Defrosting Temperature:

+7°C

Power Method:

2x1.5 V AA alkaline batteries (LR6 type)

Power Consumption:

1.5 mW

Dimensions:

110 x 75 x 45 mm

Temp. Sensor Type:

NTC 10 kΩ ±1% at 25°C
