| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM ODM |
| Certification: | CE LVD EMC |
| Model Number: | Q7 |
| Minimum Order Quantity: | 100pcs |
| Price: | negotiation |
| Packaging Details: | 1 piece in color box,8pcs in innex box,2 innex boxes in 1 out carton |
| Delivery Time: | 30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000/MONTH |
| Color: | White | Votl: | 16V |
|---|---|---|---|
| Programmable: | Programmable | Power: | 2*AAA Size Battery |
| Contact Rating: | 8(2)A 230VAC Max | Material: | OMRON Relay |
| Highlight: | underfloor heating wireless thermostat,underfloor heating programmable thermostat |
||

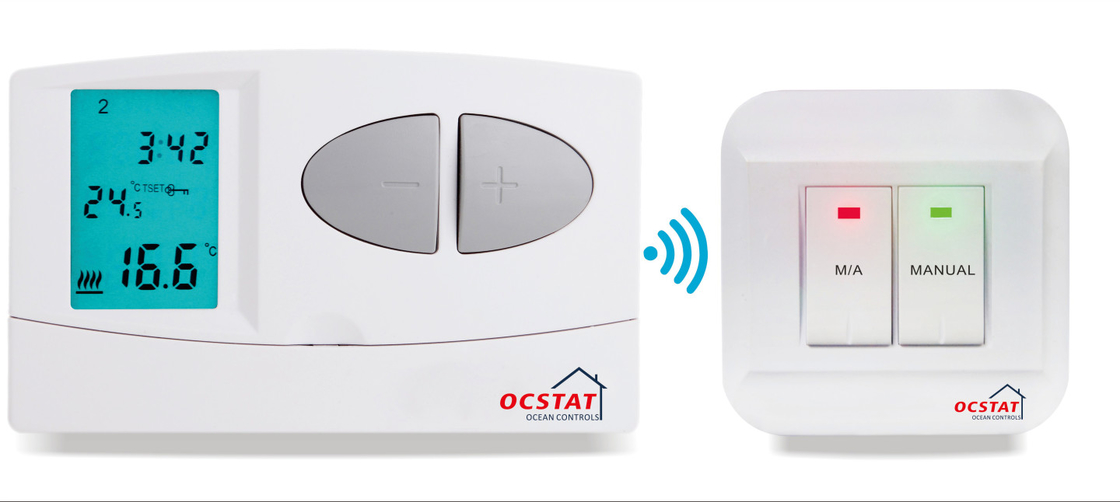

Model :Q7
1. 7 Day programmable
2. 6 Time & 6 Temp,per day
3. EL back light
4. Manual override mode
5. 2*AA size battery
6. Contact rating: 8(2)A 230VAC Max
|
Model No.: |
Q7 |
|
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
|
Switchable Current: |
8 A (2 A inductive load) |
|
Programmability: |
7 Day Programmable |
|
Temperature Range (℃): |
5℃-35℃ in 0.5℃ |
|
Control Temp.Range (℃): |
10℃-30℃ in 0.5℃ |
|
Temp.Meas.Accuracy: |
±0.5°C |
|
Sensitivity: |
±0.2°C / ±0.3°C |
|
Storage Temperature: |
-10°C to +60°C |
|
Power Method: |
2x1.5 V AA alkaline batteries (LR6 type) |
|
Power Consumption: |
1.3 mW |
|
Dimensions: |
130 x 80 x 35mm |
|
Temp. Sensor Type: |
NTC 10 kΩ ±1% at 25°C |
