Wire Programmable Digital Room HVAC Thermostat Single Stage Omron Relay

Basic Information
Place of Origin: China
Brand Name: OCSTAT
Certification: CE, UL, FCC, CSA, ROHS
Model Number: STN705
Minimum Order Quantity: 100Pcs
Price: USD 20-25/pcs
Packaging Details: One pcs in one box
Delivery Time: 7-50 Working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 Pcs/ Month
Detail Information
Material: ABS Relay: Omron
Control Type: Digital Voltage: 24V
Warranty: 1 Year Feature: Save Energy
Backlight: White/blue/ Various Color: White/Customized
Display: LCD Touch Screen Display Power Method: 2×AAA Size Battery
High Light:

heat only programmable thermostat


air conditioning thermostats

Product Description

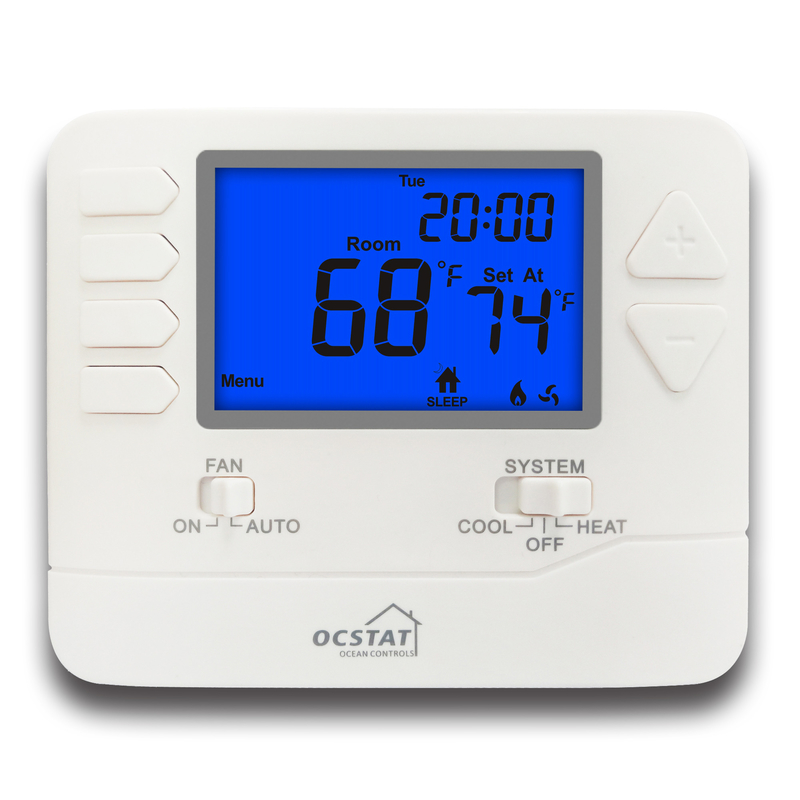

Single Stage 24 V Wire Programmable HVAC Digital Room Thermostat



 Product Describtion:



HVAC Room Thermostat STN705 is the new American model with 5+1+1 days programmable function, 1 Heat / 1 Cool make it easily use, and is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.




• Single stage
• 1 Heat / 1 Cool
• 5/1/1 programmable

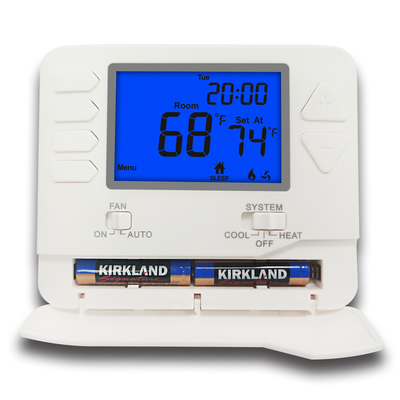

• Batteries or 24V power
• Large, easy to ready clear LCD display
• Various backlight color optional
• Easy menu driven programming
• Intuitive wake, leave, return, sleep programming icons
• Electric or Gas configurable
• Separate B & O terminals
• Separate heating and cooling swing (cycle rate) adjustments
• Room temperature calibration adjustable
• 5 minute compressor delay protection (selectable on or off)
• Contemporary design
Product Specificatiion:


Programmability: 5/1/1 Programmable
Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)
Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)
Temp.Meas.Accuracy: ±1°C (at 20°C)
Power Source: DC 2 x AAA 1.5V Alkaline batteries
Power Supply 24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)
Dimensions: 120 x98 x28 mm
