Wall Mounted Heat Pump Wiring Thermostat / 24 V Multiple Stage Thermostat For Air Conditioners

Basic Information
Place of Origin: CHINA
Brand Name: ODM/OEM
Certification: CE,UL
Model Number: S721
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: One piece in one gift box
Delivery Time: 7-50 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs/month
Detail Information
Theory: Floor Electric Heating System Temperature Range: 5~30
Type: DC Power Jack Color: White/customized
Material: ABS+PC Size: 120 X115 X24 Mm
Function: Heating/cooling Installation: Wall Mounted Installation
High Light:

heat pump programmable thermostat


digital fan coil thermostat

Product Description

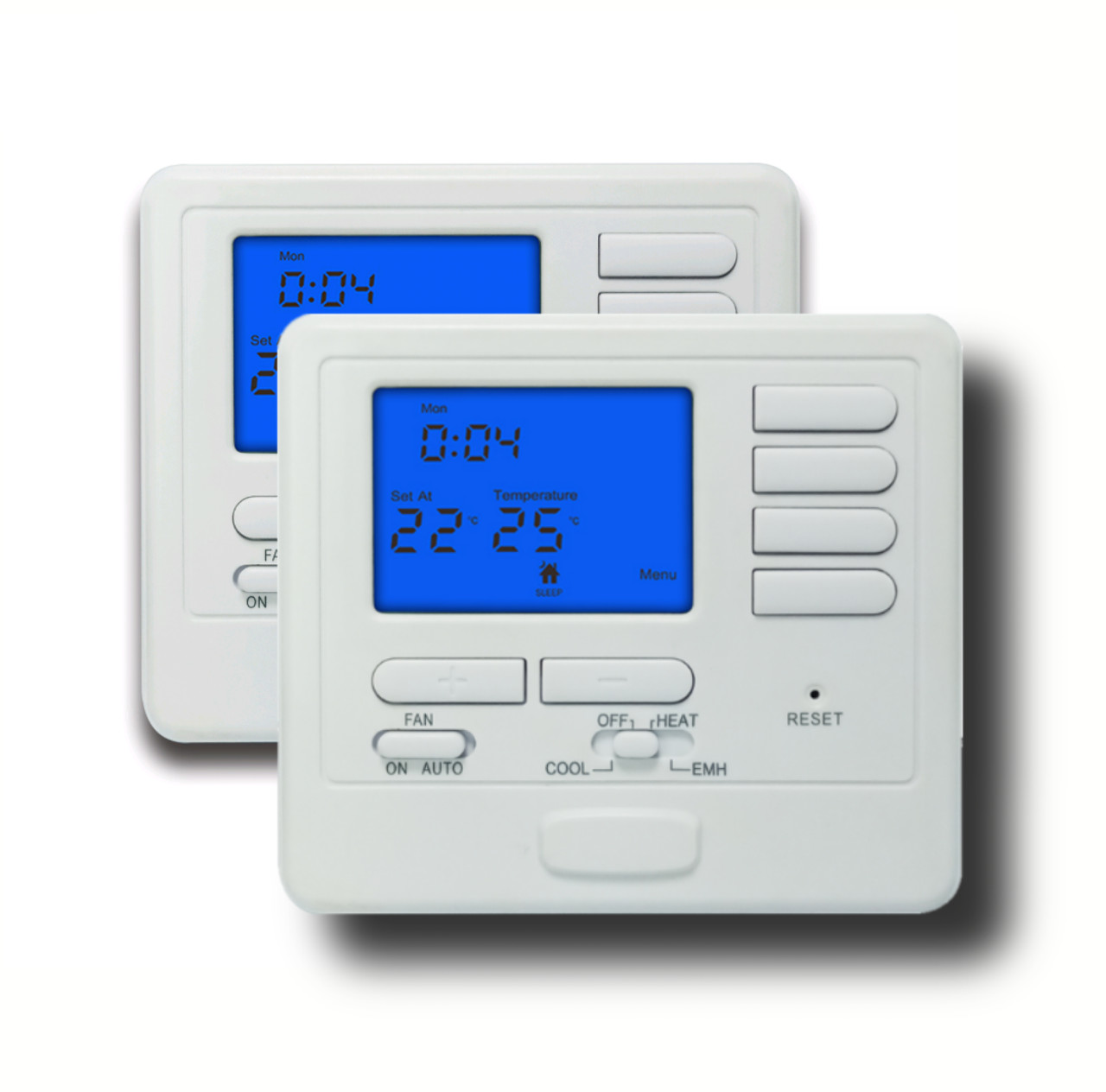

Heat Pump 24 V Multiple Stage Thermostat For Air Conditioners


Product Description

1.Large screen display with backlight is easy to read—even in the dark.

2.Precise comfort control keeps temperature within 0.5°C of the level you set.

3.Internal and external sensor selectable is suitable for any place.(optional)

4.Data memory when power is off.

5.Easy installation.

6.Dimensions: 120 x115 x24 mm

Type Electric Underfloor heating & Air Conditioners heating
Power Supply DC 2 x AAA 1.5V,24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)
Current Load 3A (Water Heating/Water Bolier/Gas Bolier);
16A(Electric Heating)
Sensor NEC
Accuracy +-0.5℃
Set Temp. Range 5-35℃
Control Temp.Range 7-32℃
Ambient Temp. 0-45℃
Ambient Humidity 5~85%RH (Non Condensing)
Storage Temp. -5~50℃
Power Consumption <3W
Timing Error <1%
Shell Material PC + ABS (Fireproof)
Installation Box 86*86mm Square
Wire Terminals Wire 2*2mm 2 or 1*3mm 2
Programmability Non Programmable

Wall Mounted Heat Pump Wiring Thermostat / 24 V Multiple Stage Thermostat For Air Conditioners 0



Wall Mounted Heat Pump Wiring Thermostat / 24 V Multiple Stage Thermostat For Air Conditioners 1



1. Install the thermostat on the indoor wall vertically. The distance to the ground is about 1.5m so as to make sure the thermostat can get sufficient air and fix the room temperature.

2. Make sure the thermostat be placed away from direct light, windows and doors and cooking equipment or other heat



Q1. Can I have a sample order for thermostat?
A: Yes, we welcome sample order to test and check quality. More detail please contact with us directly.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3. Do you have any MOQ limit for thermostat?
A: 50pcs. 10pcs for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, TNT or by air or by sea. It usually takes 3-5 days to arrive.

Airline and sea shipping is also optional. Airline need 3-6 days and sea shipping need 20-35 days.


Q6. Is it OK to print my logo on thermostat?
A: Yes. When quantity is more than 100 pcs, your logo could be printed on the thermostat.
Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1YEAR warranty to our products.


Q8. Can you do OEM and ODM for us?
A: Yes. We are professional in provide OEM and ODM service.
