| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM ODM |
| Certification: | CE LVD EMC ROHS |
| Model Number: | C3 |
| Minimum Order Quantity: | 100pcs |
| Price: | negotiation |
| Packaging Details: | 1PCS in color box,8pcs in innex carton,2 innex carton in 1 out carton |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000SET PER MONTH |
| VOLT: | 230V | MHZ: | 868MHZ |
|---|---|---|---|
| Material: | OMRON Relay | Color: | White |
| Programmable: | Non Programmable | Blacklight: | No Blacklight |
| High Light: | wiring hvac thermostat,digital furnace thermostat |
||

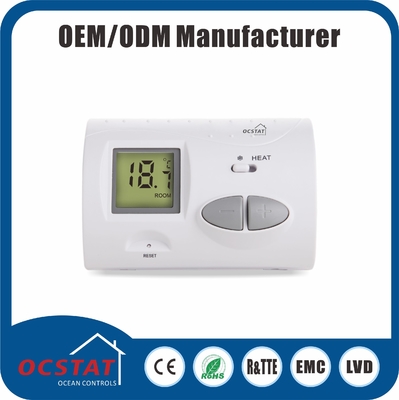

Model C3
Transmitter: Receiver:
1. POWER:2*AA size battery 1. AUTO/MANUAL Switch
2. Temperature range:5℃-35℃ in 0.5℃ 2. LED system indicator
3. Control temp.range:10℃-30℃ in 0.5℃ 3. Contact rating:8(2)A 230VAC Max
4. 868Mhz for more stable communication
5. ON/OFF switch
6. Bat-low indicator
Applications:
1. HVAC System
2. Building ventilation systems
3. Industry ventilation systems
4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication
heat/cool
5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%
6. All other ventilation systems
|
Model No.: |
C3 |
|
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
|
Switchable Current: |
8 A (2 A inductive load) |
|
Programmability: |
Non-Programmable |
|
Temperature Range (℃): |
5℃-35℃ in 0.1℃ |
|
Control Temp.Range (℃): |
10℃-30℃ in 0.5℃ |
|
Temp.Meas.Accuracy: |
±0.5°C |
|
Sensitivity: |
±0.2°C / ±0.3°C |
|
Defrosting Temperature: |
+7°C |
|
Power Method: |
2x1.5 V AA alkaline batteries (LR6 type) |
|
Power Consumption: |
1.5 mW |
|
Dimensions: |
110 x 75 x 45 mm |
|
Temp. Sensor Type: |
NTC 10 kΩ ±1% at 25°C |
