| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM ODM |
| Certification: | CE LVD EMC ROHS ISO9001.2008 |
| Model Number: | C7RF |
| Minimum Order Quantity: | 100pcs |
| Price: | negotiation |
| Packaging Details: | 1piece in color box,8pcs in a innex box,2 innex boxs in 1 out carton |
| Delivery Time: | 30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000/MONTH |
| Material: | OMRON Relay | Volt: | 16V |
|---|---|---|---|
| Color: | White | Programmable: | Programmable |
| Power: | 2*AAA Size Battery | Contact Rating: | 8(2)A 230VAC Max |
| Highlight: | programmable electric thermostat,rf electronic programmable thermostat |
||
Model :C7 RF
Transmitter: Receiver:
1. 2*AA size battery 1. AUTO/MANUAL Switch
2. 6 Time & 6 Temp,per day 2. LED system indicator
3. 7 Day programmable 3. Contact rating: 8(2)A 230VAC Max
4. 868Mhz for more stable communication
5. EL back light
6. Manual override mode
Description:
◆ Communicates at 868 MHz for stand-alone interface
◆ Transmits up to Beeline distance 660ft(200m)in the field (The distance will shorten if through walls and floors)
◆ 7days programmable, 6 events per day
◆ Backlit display (automatically turns off after 8 seconds of non-use)
◆ Fahrenheit / Centigrade
◆ 24Vac,110Vac,230Vac power supplied Controller
◆ Easy Installation
5+2 Day Programmable
◆ Override/Timing ON/OFF
◆ White Backlight (Optional)
◆ Infrared Remote Control (Optional)
Quick Detail:
220Vac
Surface mounting
7days 6 periods or 5+2 programmable
Description:
◆ Large LCD display
◆ 7days 6 periods or 5+2 programmable
◆ Error alarm
◆ low voltage alarm
◆ system setting mode selectable
◆ bule or orange backlight
◆ 12/24 hours clock selectable
◆ manual override
◆ batteries power supply
◆ Temperature accuracy selectable
Applications:
Our thermostat provides temperature control in industrial , commercial and residentcial application, especially for gas, oil, electric boiler and wall-hung boiler etc.
The Programmable Thermostat is designed for heating operation purpose with 7-Day, 6-periodes programming thermostat that provides universal system compatibility, precis comfort control to meet energy saving requirements.
Specifications:
◆ Temperature display range
◆ Temperature setting range
◆ Temperature accuracy
◆ Supply Voltage
◆ Sensor
◆ Wiring
◆ Enclosure
◆ Key
◆ Load voltage
0°C-37°C (32°F-99°F)
7°C-35°C (45°F-95°F)
± 0.5°C (± 1°F)
2 AA alkaline batteries
NTC 1% B=3950
terminal block
ABS
Silicone Rubber
AC220(5A)
Wireless Room Thermostat
Transmitter:
• 7 Day programmable
• 6 Time & 6 Temp,per day
• Green back light
• Manual override mode
• 868Mhz with more stable communication
• Wall mount or base mount
• °F/℃: Temperature display in °F/℃ format
• Battery power supply

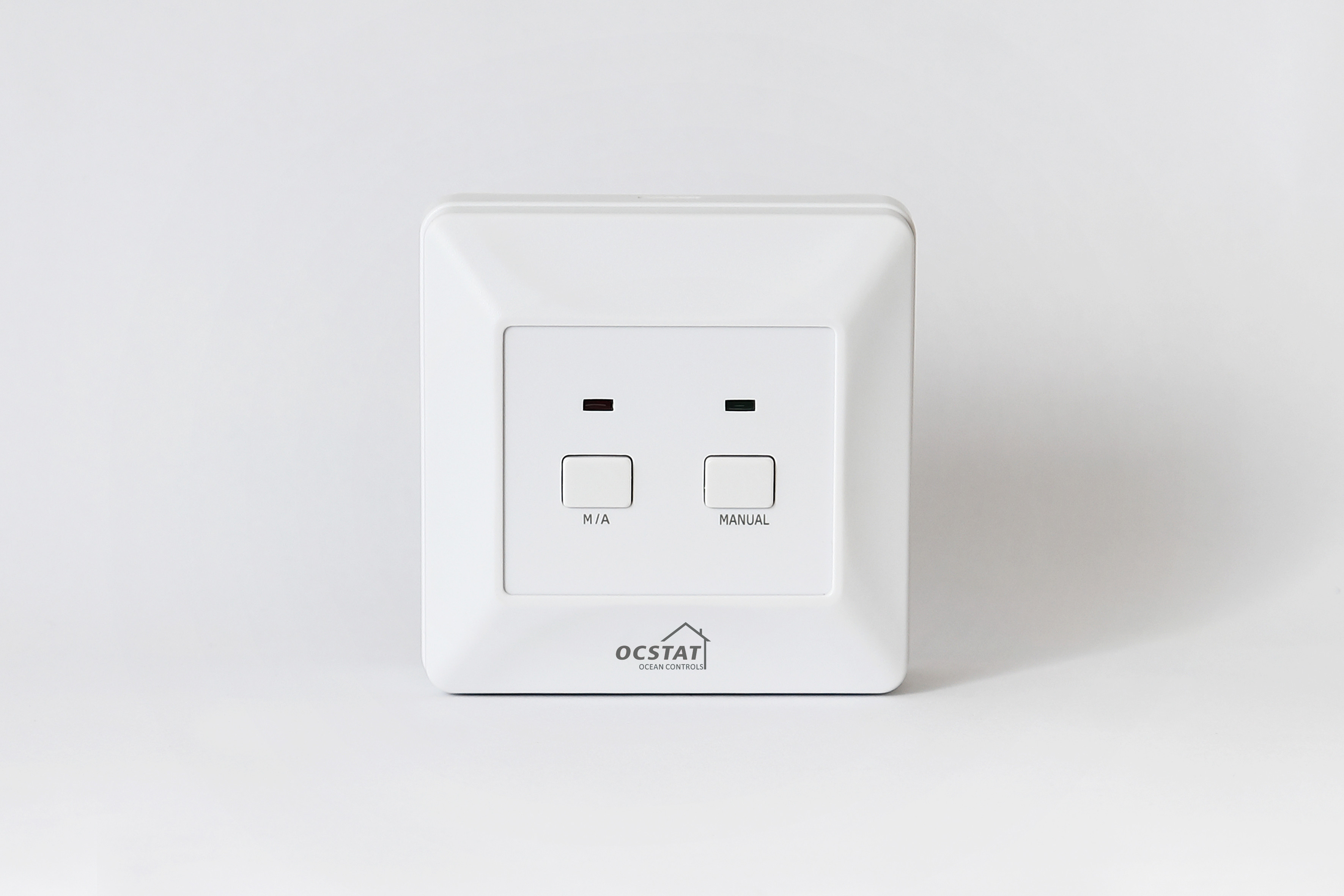

Receiver:
• AUTO/MANUAL Switch
• LED system indicator
• Power supply: 230V AC
• Contact rating:6(2)A 250VAC Max
|
Model No.: |
C7 RF |
|
Transmitter: |
|
|
Operating Frequency: |
868.35 MHz |
|
Programmability: |
Programmable |
|
Temperature Range (℃): |
5℃-35℃ in 0.5℃ |
|
Control Temp.Range (℃): |
10℃-30℃ in 0.5℃ |
|
Temp.Meas.Accuracy: |
±0.5°C |
|
Sensitivity: |
±0.2°C / ±0.3°C |
|
Storage Temperature: |
-10°C to +60°C |
|
Power Method: |
2x1.5 V AA alkaline batteries (LR6 type) |
|
Power Consumption: |
1.3 mW |
|
Dimensions: |
130 x 80 x 35mm (without holder) |
|
Temp. Sensor Type: |
NTC 10 kΩ ±1% at 25°C |
|
Receiver: |
|
|
Power Consumption: |
6W |
|
Power Supply Voltage: |
230V AC, 50Hz |
|
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
|
Switchable Current: |
6 A (2 A inductive load) |
|
Transmission Distance: |
approx. 50 m in open terrain |
|
•
|
|
