Wireless RF Electronic Programmable Thermostat For Heating System 868MHZ Radio Frequency

Basic Information
Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC ROHS ISO9001.2008
Model Number: C7RF
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1piece in color box,8pcs in a innex box,2 innex boxs in 1 out carton
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detail Information
Material: OMRON Relay Volt: 16V
Color: White Programmable: Programmable
Power: 2*AAA Size Battery Contact Rating: 8(2)A 230VAC Max
High Light:

programmable electric thermostat


rf electronic programmable thermostat

Product Description

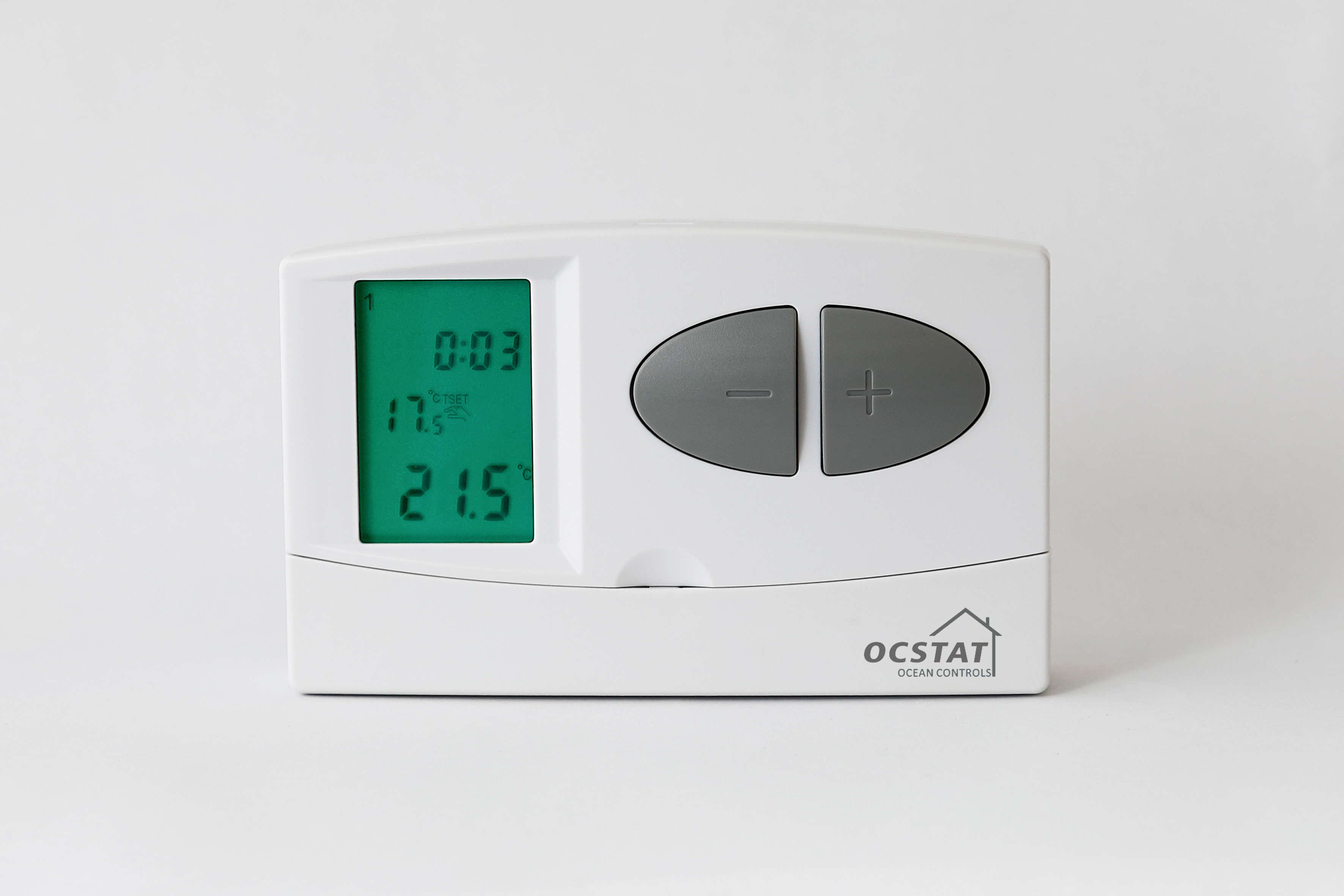

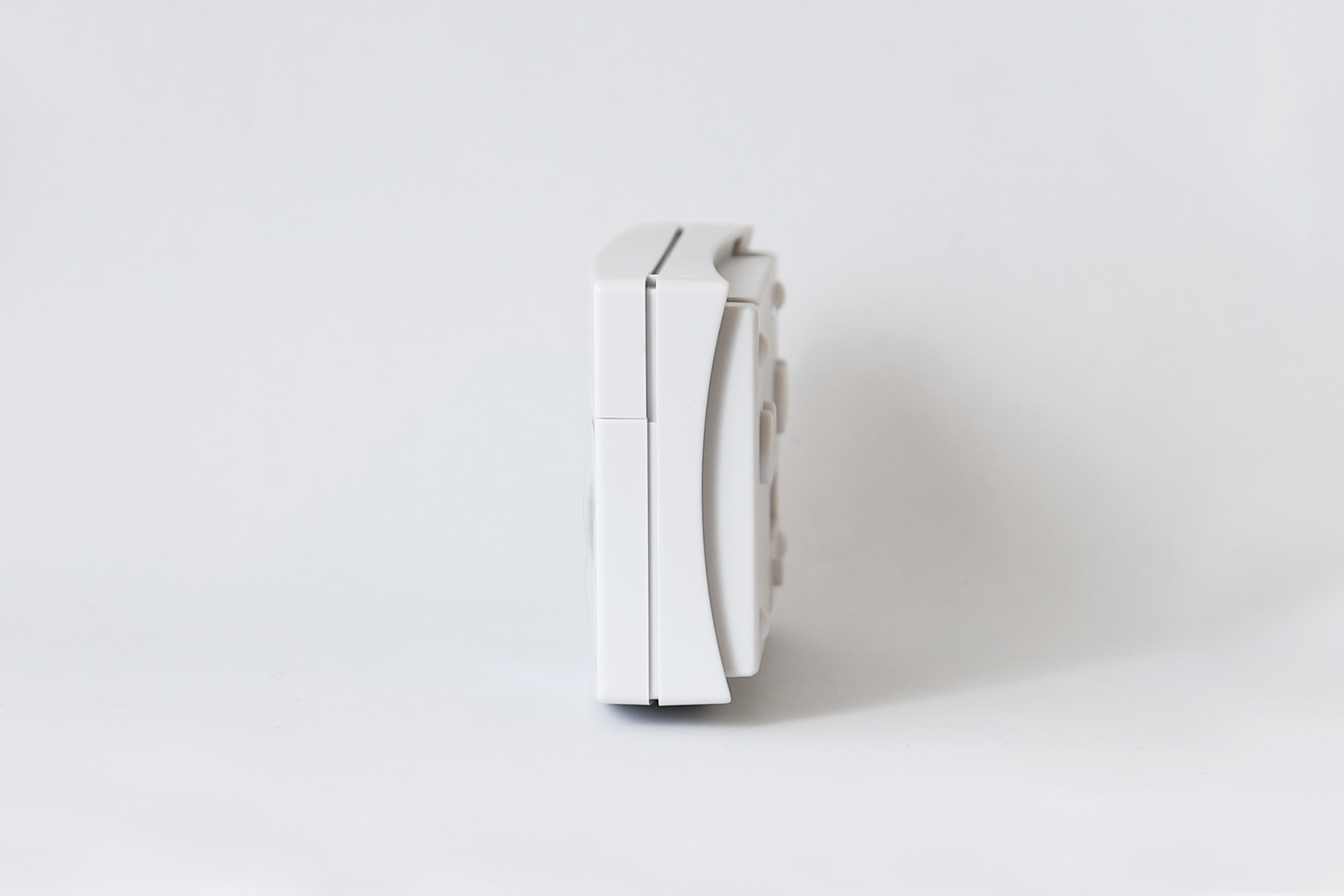

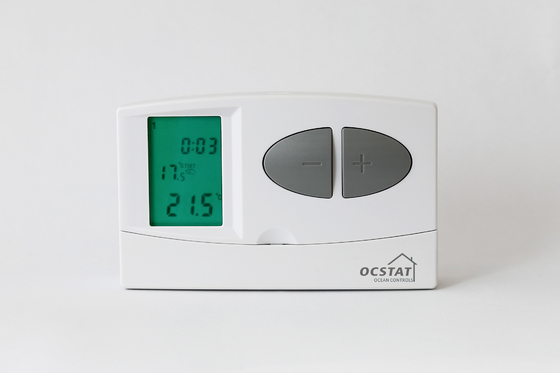

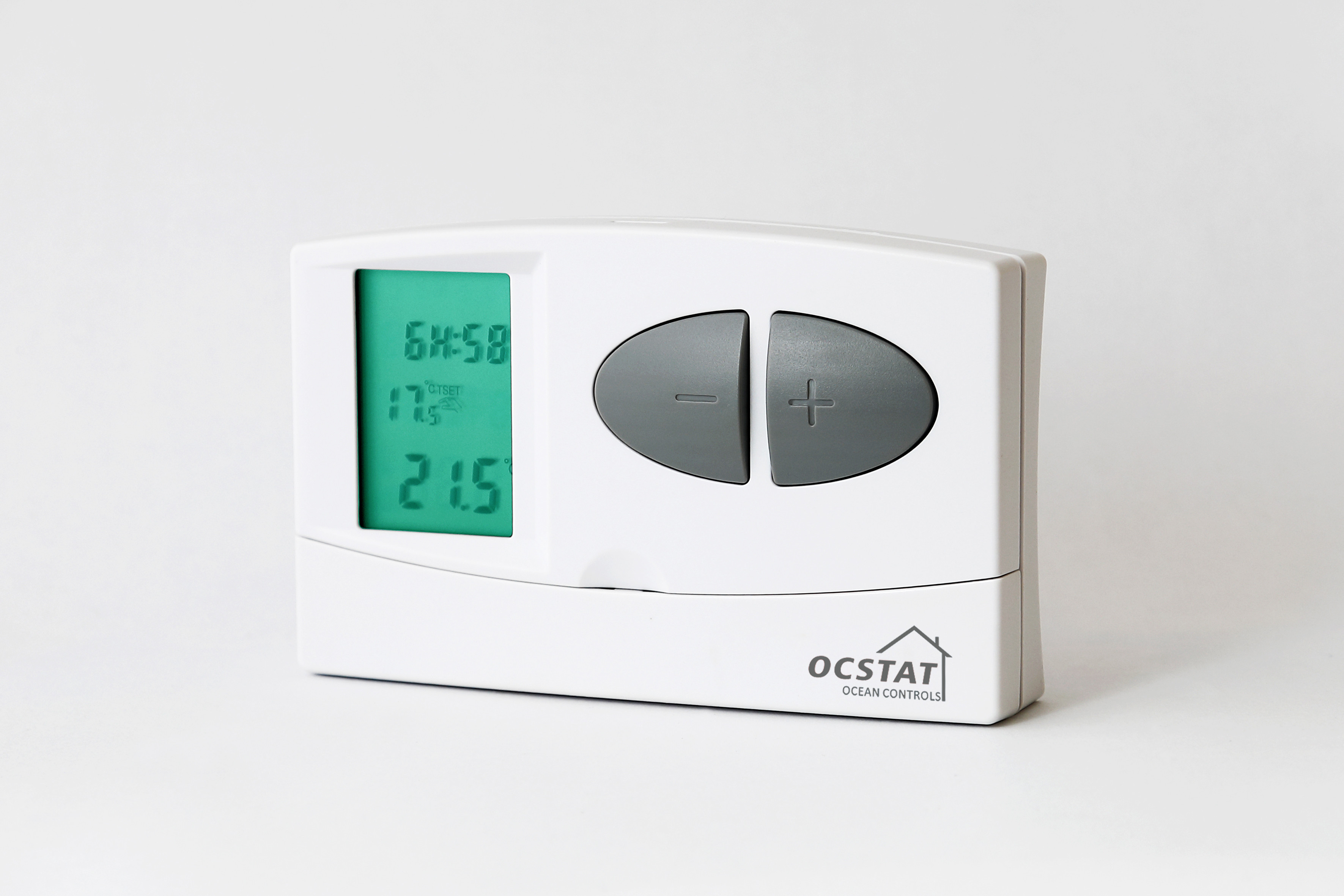

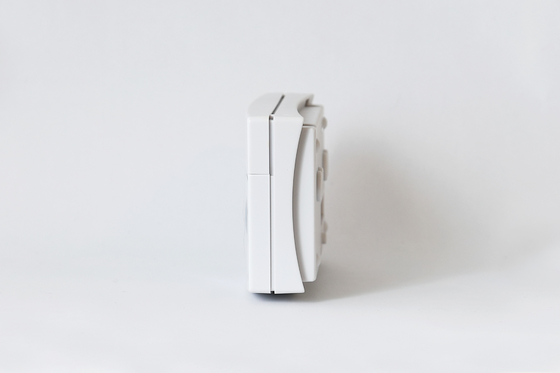

 Model :C7 RF

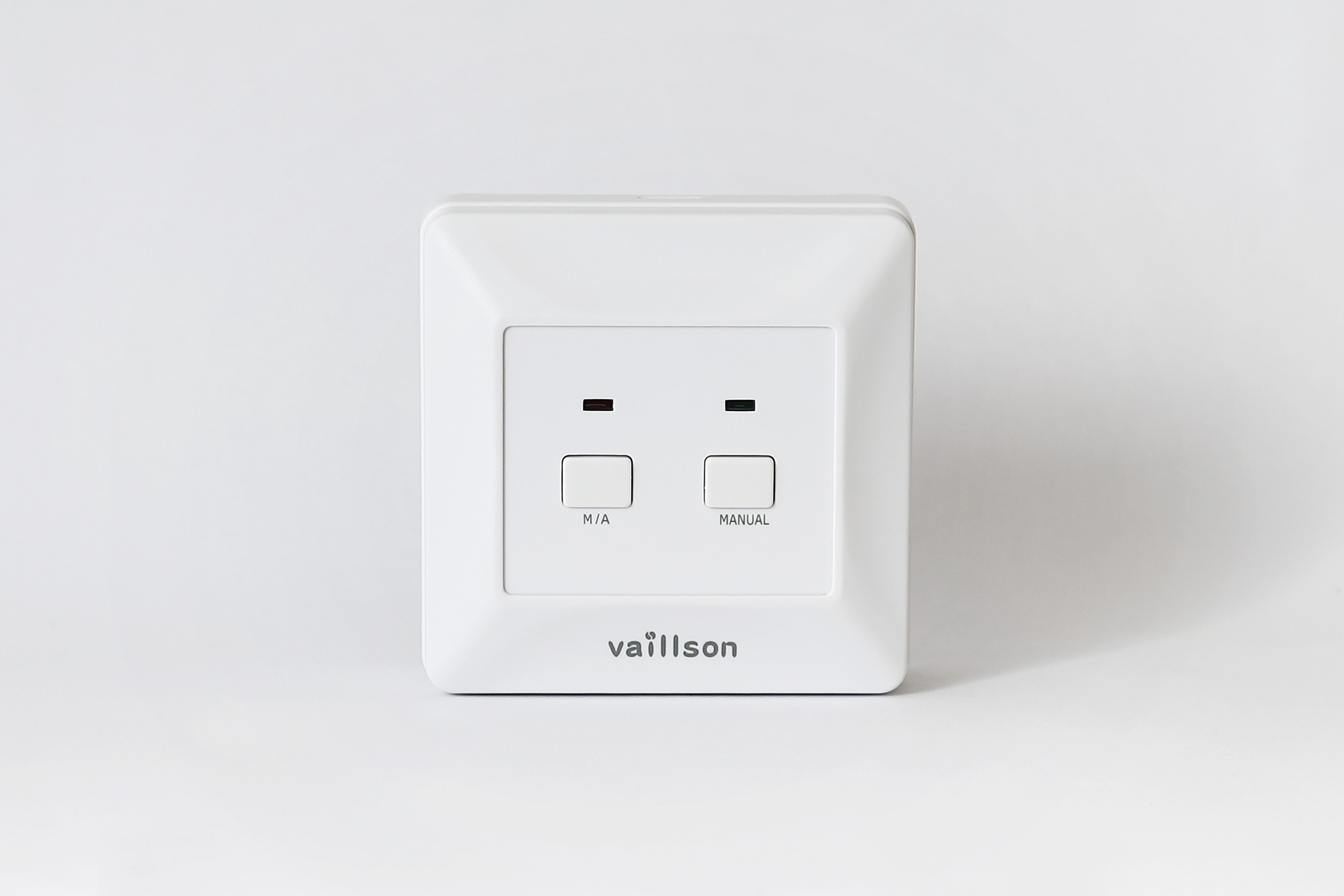

Transmitter:                                                Receiver:

1. 2*AA size battery                                     1. AUTO/MANUAL Switch

2. 6 Time & 6 Temp,per day                        2. LED system indicator

3. 7 Day programmable                               3. Contact rating: 8(2)A 230VAC Max

4. 868Mhz for more stable communication

5. EL back light

6. Manual override mode




◆ Communicates at 868 MHz for stand-alone interface
◆ Transmits up to Beeline distance 660ft(200m)in the field (The distance will shorten if through walls and floors)
◆ 7days programmable, 6 events per day
◆ Backlit display (automatically turns off after 8 seconds of non-use)
◆ Fahrenheit / Centigrade
◆ 24Vac,110Vac,230Vac power supplied Controller
◆ Easy Installation


5+2 Day Programmable
◆ Override/Timing ON/OFF
◆ White Backlight (Optional)
◆ Infrared Remote Control (Optional)


Quick Detail:



Surface mounting

7days 6 periods or 5+2 programmable





◆ Large LCD display
◆ 7days 6 periods or 5+2 programmable
◆ Error alarm
◆ low voltage alarm
◆ system setting mode selectable
◆ bule or orange backlight
◆ 12/24 hours clock selectable
◆ manual override

◆ batteries power supply
◆ Temperature accuracy selectable





Our thermostat provides temperature control in industrial , commercial and residentcial application, especially for gas, oil, electric boiler and wall-hung boiler etc.
The Programmable Thermostat is designed for heating operation purpose with 7-Day, 6-periodes programming thermostat that provides universal system compatibility, precis comfort control to meet energy saving requirements.





◆ Temperature display range
◆ Temperature setting range
◆ Temperature accuracy
◆ Supply Voltage
◆ Sensor
◆ Wiring
◆ Enclosure
◆ Key
◆ Load voltage

0°C-37°C (32°F-99°F)
7°C-35°C (45°F-95°F)
± 0.5°C (± 1°F)
2 AA alkaline batteries
NTC 1% B=3950
terminal block
Silicone Rubber



Model No.:




Operating Frequency:

868.35 MHz



Temperature Range (℃):

5℃-35℃ in 0.5℃

Control Temp.Range (℃):

10℃-30℃ in 0.5℃




±0.2°C / ±0.3°C

 Storage Temperature:

-10°C to +60°C

Power Method:

2x1.5 V AA alkaline batteries (LR6 type)

Power Consumption:

1.3 mW


130 x 80 x 35mm (without holder)

Temp. Sensor Type:

NTC 10 kΩ ±1% at 25°C



Power Consumption:


Power Supply Voltage:

230V AC, 50Hz

Switchable Voltage:

24 V AC / DC,…250 V AC; 50 Hz

Switchable Current:

6 A (2 A inductive load)

Transmission Distance:

approx. 50 m in open terrain
