Place of Origin: | CHINA |
---|---|
Brand Name: | OEM ODM |
Certification: | CE LVD EMC |
Model Number: | S2301RF |
Minimum Order Quantity: | 100pcs |
Price: | negotiation |
Packaging Details: | I piece in color box,8pcs in innex box,2 innex boxes in 1 out carton |
Delivery Time: | 30 DAYS |
Payment Terms: | T/T |
Supply Ability: | 100000/MONTH |
Material: | OMRON Relay | VOLT: | 16V |
---|---|---|---|
Color: | White | Programmmable: | Non Programmable |
POWER: | 2*AAA Size Battery | Contact Rating: | 8(2)A 230VAC Max |
High Light: | programmable heating thermostat,programmable electric thermostat |

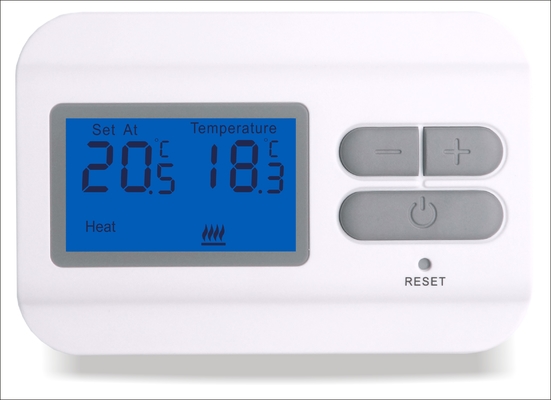

Mode:S2301 RF
Transmitter: Receiver:
1. POWER:2*AAA size battery 1. AUTO/MANUAL Switch
2. Temperature range:5℃-35℃ in 0.5℃ 2. LED system indicator
3. Control temp.range:10℃-30℃ in 0.5℃ 3. Contact rating:8(2)A 230VAC Max
4. 868Mhz for more stable communication
5. HEAT/OFF/COOL switch
6. Bat-low indicator
Description:
◆ Communicates at 868 MHz for stand-alone interface
◆ Transmits up to Beeline distance 660ft(200m)in the field (The distance will shorten if through walls and floors)
◆ Non days programmable
◆ Backlit display (automatically turns off after 8 seconds of non-use)
◆ Fahrenheit / Centigrade
◆ 24Vac,110Vac,230Vac power supplied Controller
◆ Easy Installation
Applications:
1. HVAC System
2. Building ventilation systems
3. Industry ventilation systems
4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication heat/cool
5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%
6. All other ventilation systems
Model No.: |
S2301 RF |
Transmitter: |
|
Operating Frequency: |
868.35 MHz |
Programmability: |
Non-Programmable |
Temperature Range (°C): |
0°C-40°C in 0.1°C |
Control Temp.Range (°C): |
5°C-35°C in 0.5°C |
Temp.Meas.Accuracy: |
±1°C (at 20°C) |
Defrosting Temperature: |
+7°C |
Power Method: |
2 x AAA 1.5V Lithium batteries |
Dimensions: |
118 x 80 x 26 mm (without holder) |
Receiver: |
|
Power Consumption: |
6W |
Power Supply Voltage: |
230V AC, 50Hz |
Switchable Current: |
6 A (2 A inductive load) |
Transmission Distance: |
approx. 50 m in open terrain |
Dimensions: |
86 x 86 x 26 mm |
