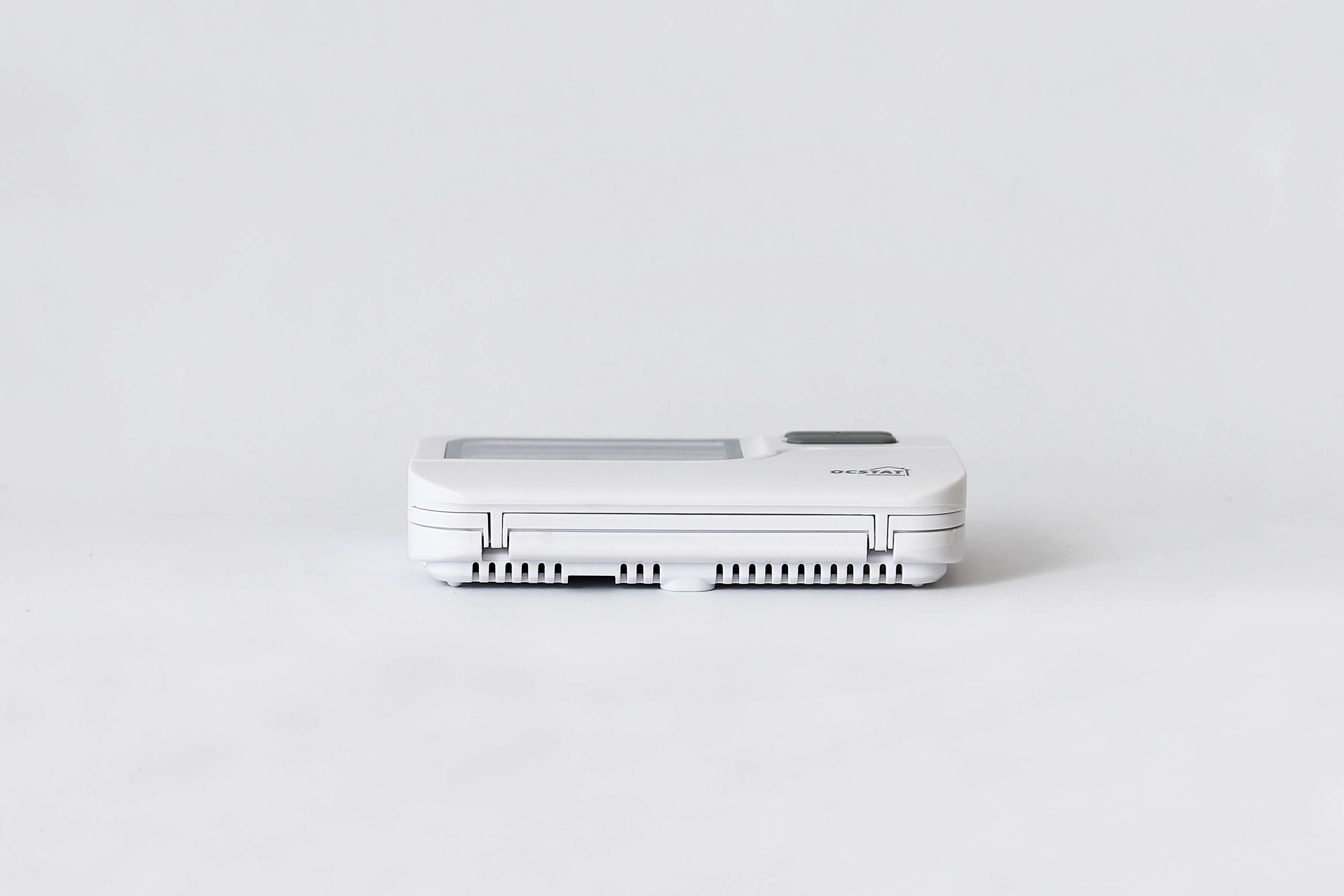

Two Wire Room Thermostat 2 Wire Heat Only Thermostat 7 Days Programmable wired HVAC system underfloor thermostat

Basic Information
Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC
Model Number: S2302
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1 piece in color box,8pcs in innex box,2 innex boxex in 1 out carton
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detail Information
Material: OMRON Relay VOLT: 16V
AMP: 10A Color: White
Programmable: 7 Days Programmable RF: Non Wireless
High Light:

wiring hvac thermostat

,

digital furnace thermostat


Product Description



 Model S2302

1. 7 Day programmable

2. 6 Time & 6 Temp,per day

3. LED Blue backlight

4. Manual override mode

5. 2*AA A size battery

6. Contact rating: 8(2)A 230VAC Max

7. Keypad lockout

8. HEAT/COOL mode switch



Switchable Voltage: 24 V AC / DC,…250 V AC; 50 Hz
Switchable Current: 6 A (2 A inductive load)
Programmability: 7 Day Programmable
Temperature Range (°C): 0°C-40°C in 0.1°C
Control Temp.Range (°C): 5°C-35°C in 0.5°C
Temp.Meas.Accuracy: ±1°C (at 20°C)
Storage Temperature: -10°C to +60°C
Power Method: 2 x AAA 1.5V Lithium batteries
Dimensions: 119 x 80 x 26 mm





Model No.:

S2302

Switchable Voltage:

24 V AC / DC,…250 V AC; 50 Hz

Switchable Current:

6 A (2 A inductive load)

Programmability:

7 Day Programmable

Temperature Range (°C):

0°C-40°C in 0.1°C

Control Temp.Range (°C):

5°C-35°C in 0.5°C

Temp.Meas.Accuracy:

±1°C (at 20°C)

 Storage Temperature:

-10°C to +60°C

Power Method:

2 x AAA 1.5V Lithium batteries

Dimensions:

119 x 80 x 26 mm
