| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM ODM |
| Certification: | CE LVD EMC |
| Model Number: | S2301 |
| Minimum Order Quantity: | 100pcs |
| Price: | negotiation |
| Packaging Details: | I piece in color box,8pcs in innex box,2 innex boxes in 1 out carton |
| Delivery Time: | 30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000/MONTH |
| Material: | OMRON Relay | VOLT: | 16V |
|---|---|---|---|
| Color: | White | Programmable: | Non Programmable |
| Contact Rating: | 8(2)A 230VAC Max | POWER: | 2*AAA Size Battery |
| High Light: | wiring hvac thermostat,digital air conditioner thermostat |
||

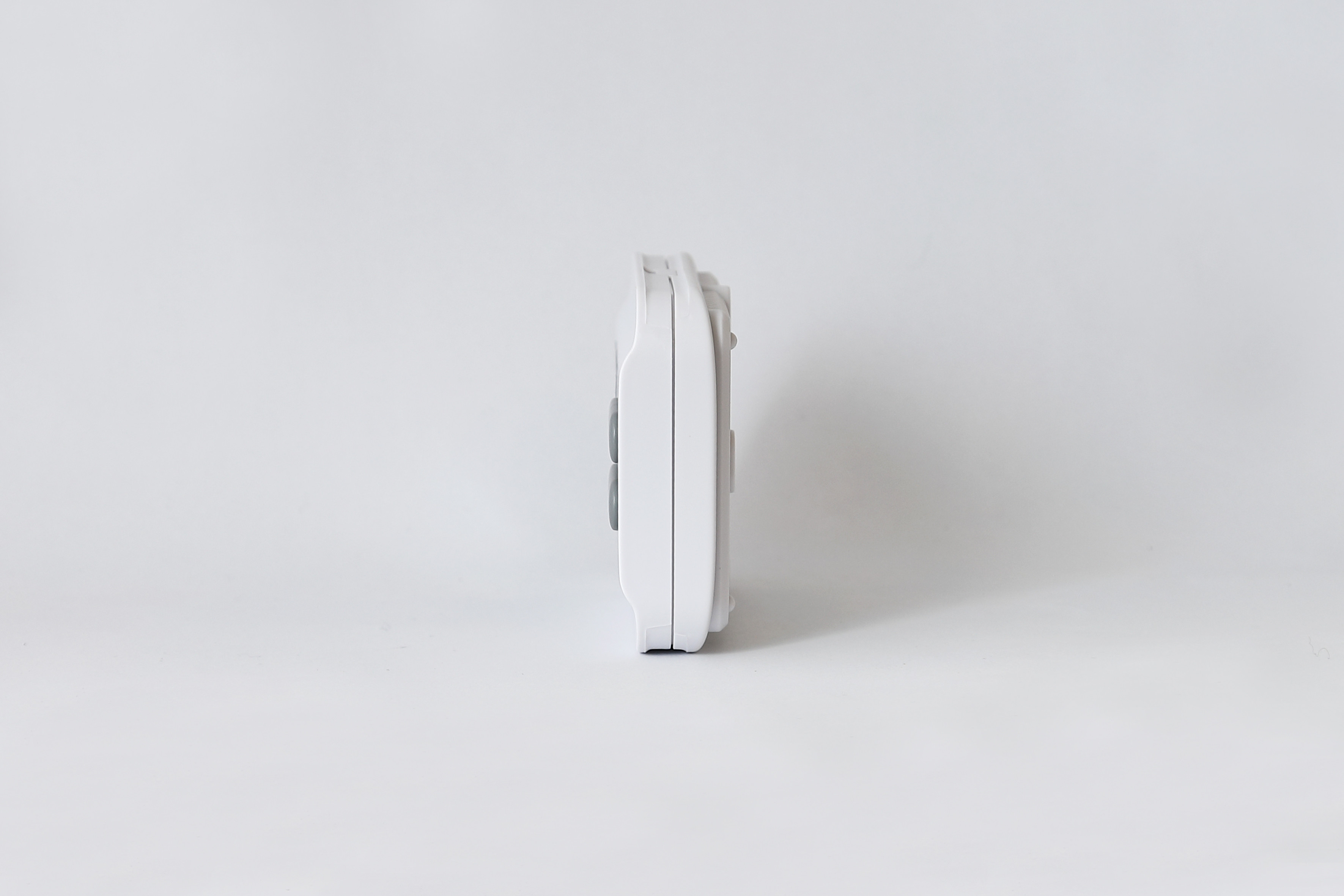

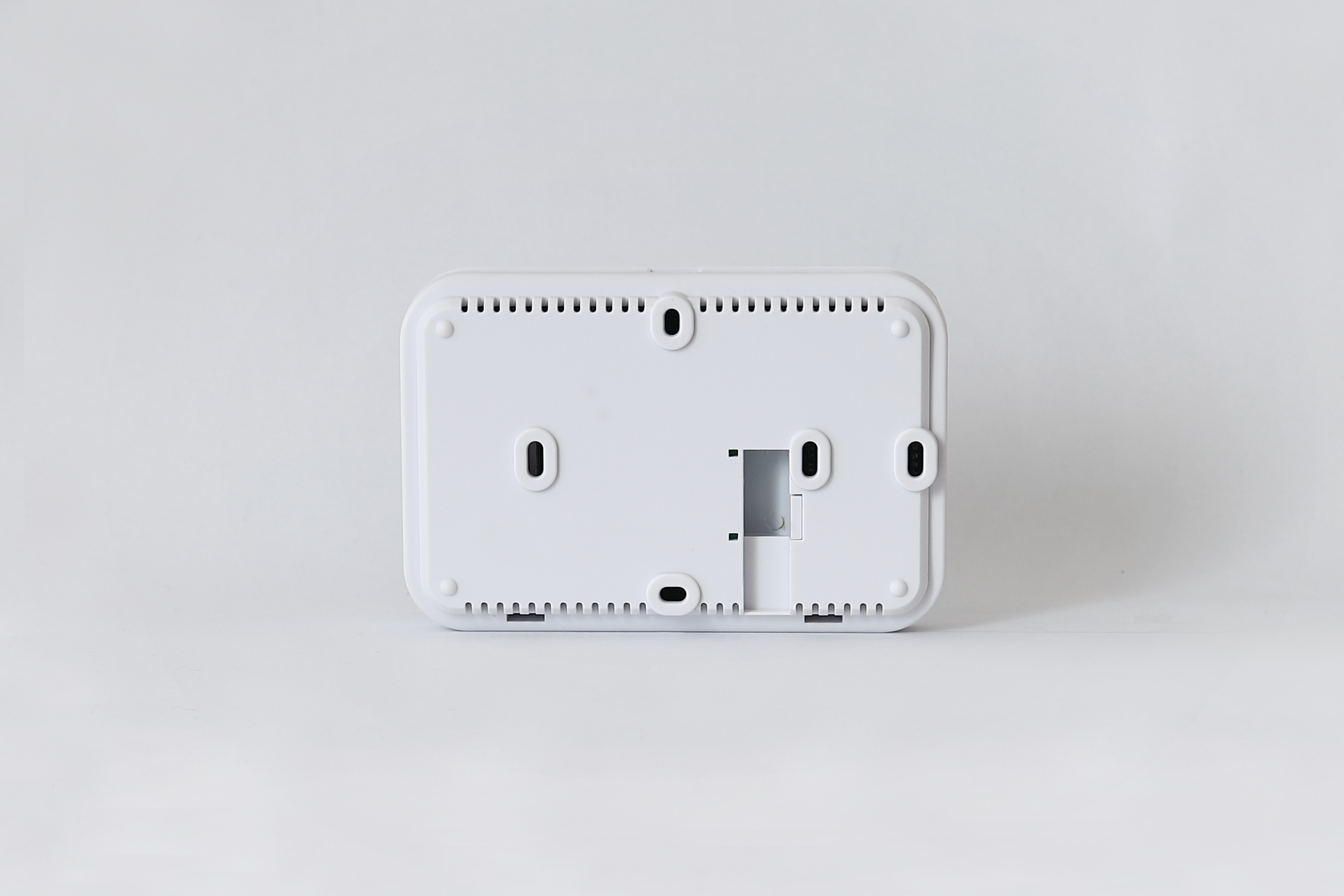

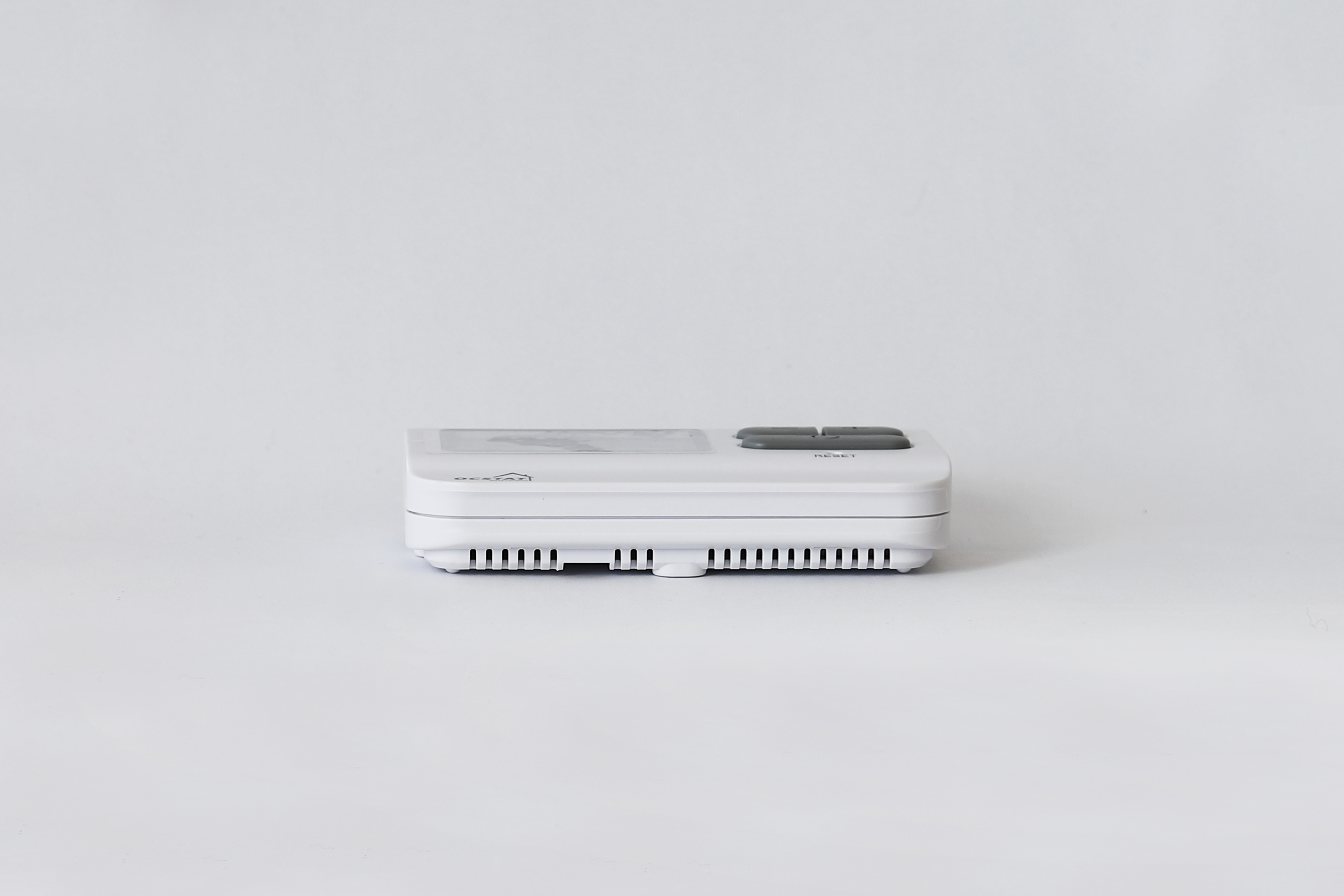

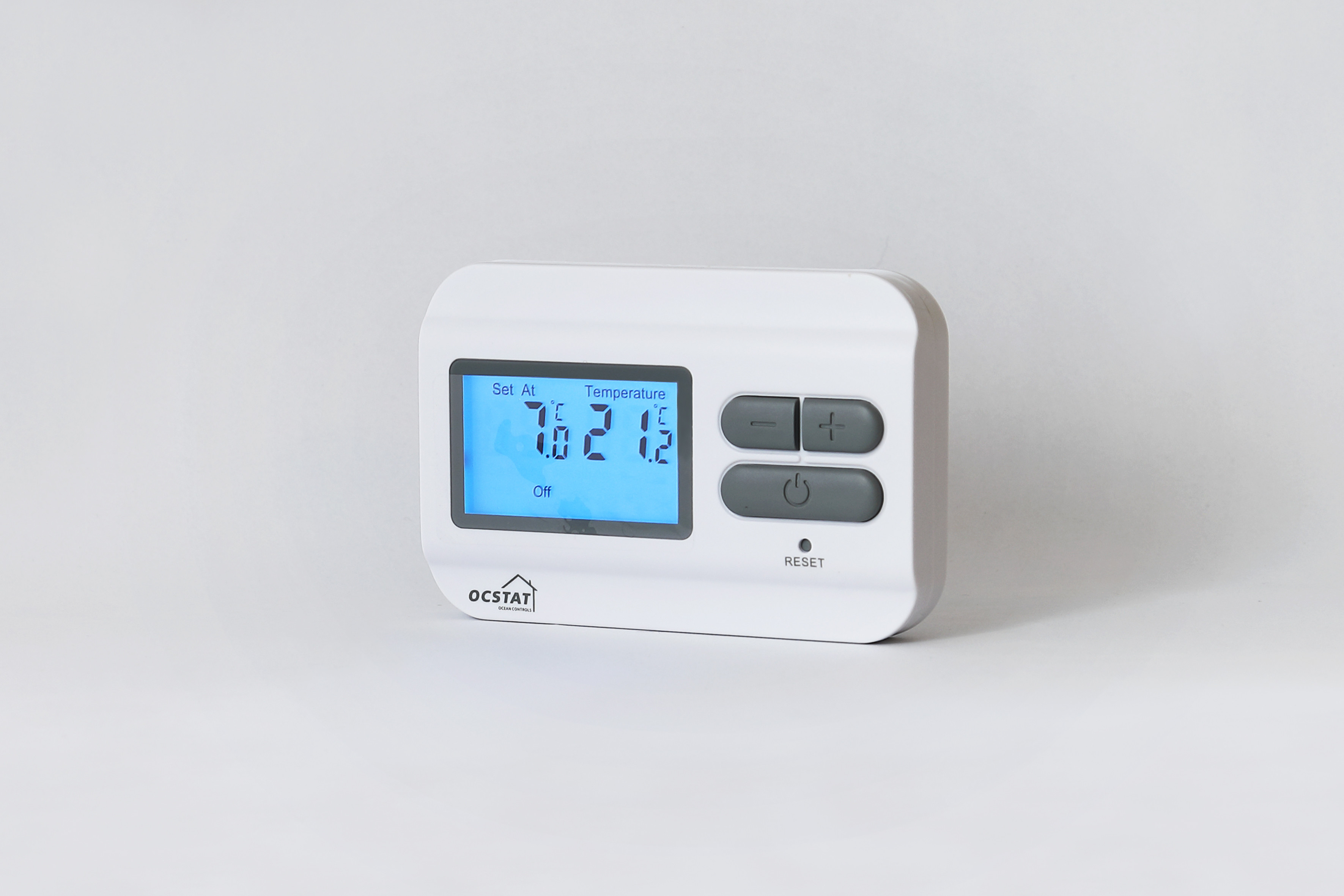

Model:S2301
Applications:
1. HVAC System
2. Building ventilation systems
3. Industry ventilation systems
4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication heat/cool
5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%
6. All other ventilation systems
|
Model No.: |
S2301 |
|
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
|
Switchable Current: |
6 A (2 A inductive load) |
|
Programmability: |
Non-Programmable |
|
Temperature Range (°C): |
0°C-40°C in 0.1°C |
|
Control Temp.Range (°C): |
5°C-35°C in 0.5°C |
|
Temp.Meas.Accuracy: |
±1°C (at 20°C) |
|
Defrosting Temperature: |
+7°C |
|
Power Method: |
2 x AAA 1.5V Lithium batteries |
|
Dimensions: |
118 x 80 x 26 mm |
