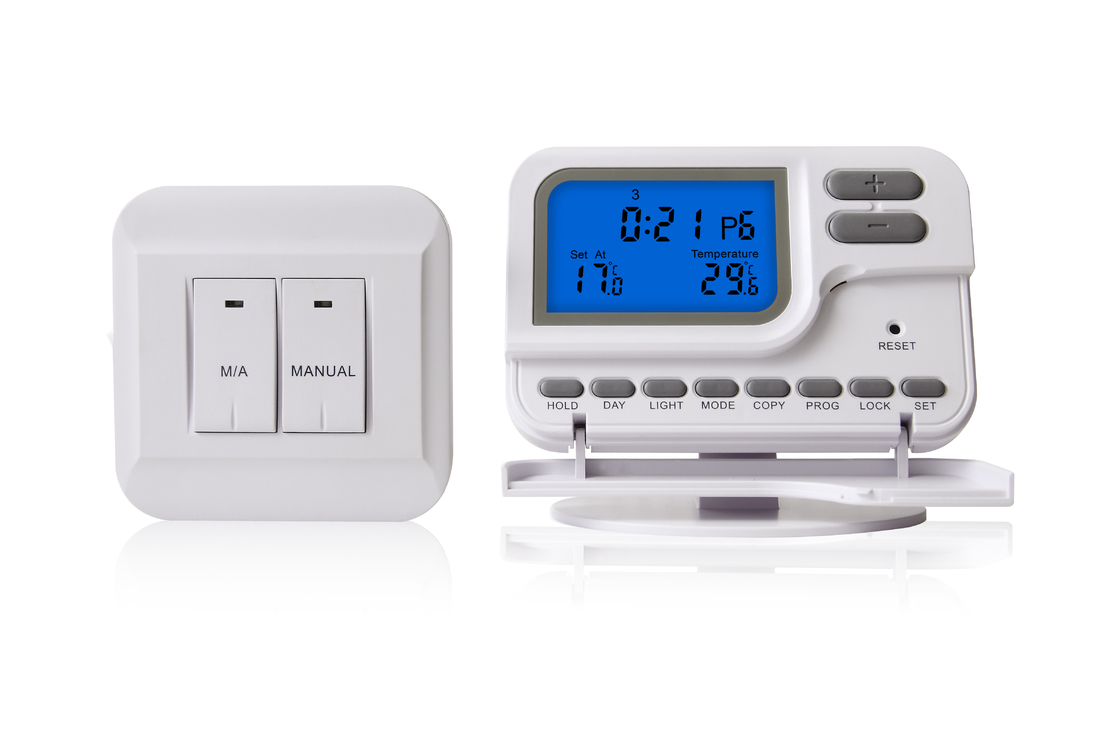

Digital wirelesss weekly programmable Thermostat For Heat Pump digital programmable thermostat

Basic Information
Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC ROHS
Model Number: S2302RF
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1PCS in color box,8pcs in innex carton,2 innex carton in 1 out carton
Delivery Time: 30 WORK DAYS
Payment Terms: T/T
Supply Ability: 100000SET PER MONTH
Detail Information
VOLT: 230V MHZ: 868MHZ
Material: OMRON Relay Color: White
Programmable: Programmable Blacklight: Bule Blacklight & Orange Blacklight
High Light:

digital air conditioner thermostat

,

digital heating thermostat


Product Description





 Model S2303 RF



Transmitter:                                Receiver:

7 Day programmable                         AUTO/MANUAL Switch

6 Time & 6 Temp,per day                     LED system indicator

LED Blue backlight                          Contact rating: 8(2)A 230VAC Max

2*AA A size battery

Keypad lockout

HEAT/COOL mode switch

868Mhz for more stable communication





·       Wireless Room Thermostat

        Transmitter:

·        7 Day programmable

·       Blue backlight or orange backlight

        · HEAT (Heating) / COOL (Cooling)

·        6 Time & 6 Temp,per day

·       Manual override mode

·       868Mhz with more stable communication

      · Wall mount or base mount

      · Room Temperature Calibration adjustment

      · Lock key function

      · Battery power supply



        Receiver:

·       AUTO/MANUAL Switch

      · ON/OFF switch

·       LED system indicator

·       Power supply: 230V AC

      · Contact rating:6(2)A 250VAC Max







Applications:

1. HVAC System

2. Building ventilation systems

3. Industry ventilation systems

4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication heat/cool

5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%

6. All other ventilation systems



Model No.:

S2302 RF

Transmitter:



Operating Frequency:

868.35 MHz

Programmability:

Programmable

Temperature Range (°C):

0°C-40°C in 0.1°C

Control Temp.Range (°C):

5°C-35°C in 0.5°C

Temp.Meas.Accuracy:

±1°C (at 20°C)

 Storage Temperature:

-10°C to +60°C

Power Method:

2 x AAA 1.5V Lithium batteries

Dimensions:

119 x 80 x 26 mm (without holder)

 Receiver:



Power Consumption:

6W

Power Supply Voltage:

230V AC, 50Hz

Switchable Voltage:

24 V AC / DC,…250 V AC; 50 Hz

Switchable Current:

6 A (2 A inductive load)

Transmission Distance:

approx. 50 m in open terrain

Dimensions:

86 x 86 x 26 mm
