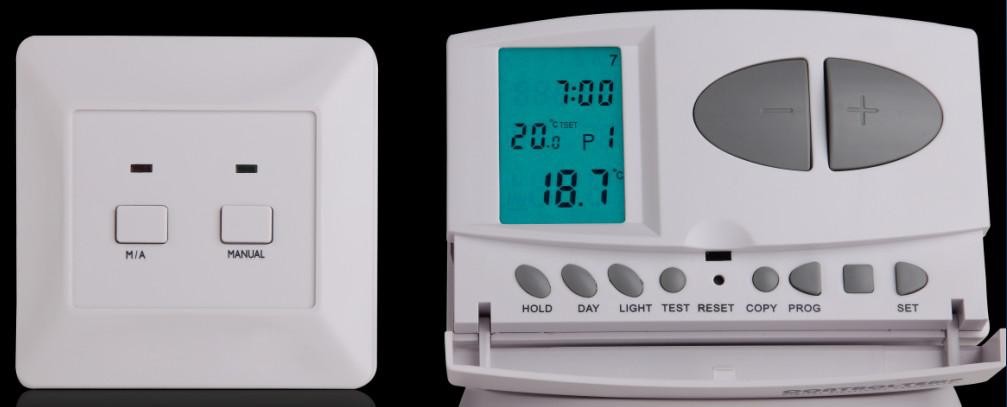

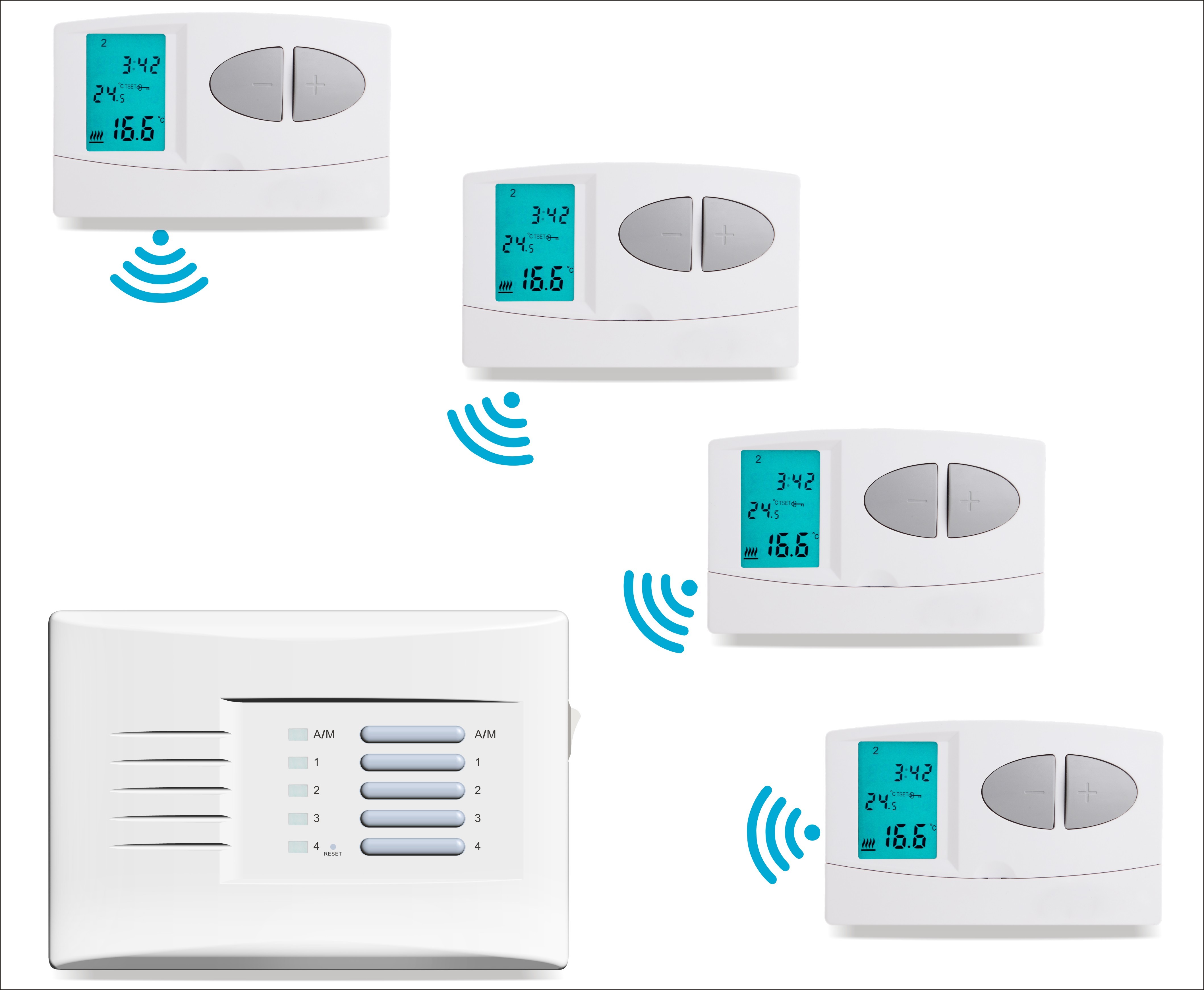

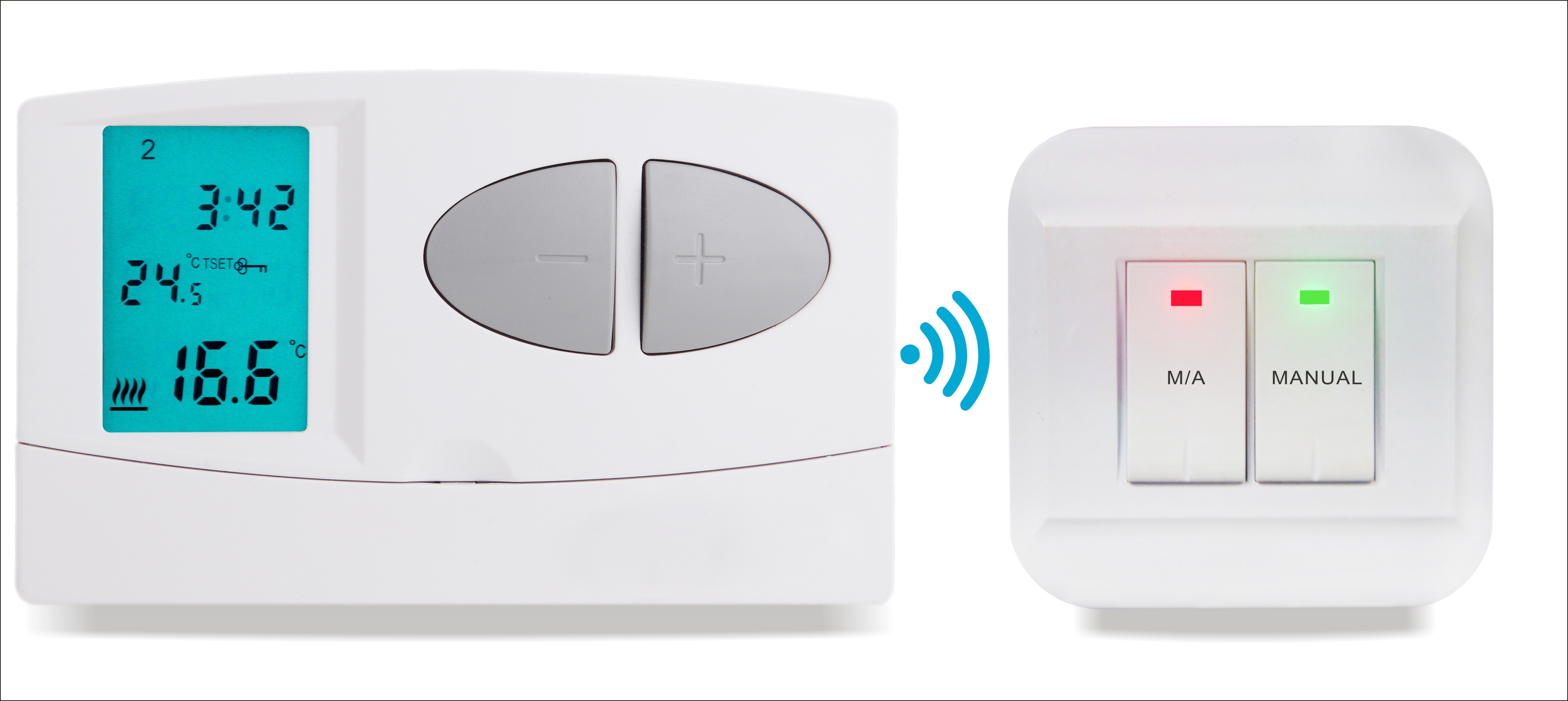

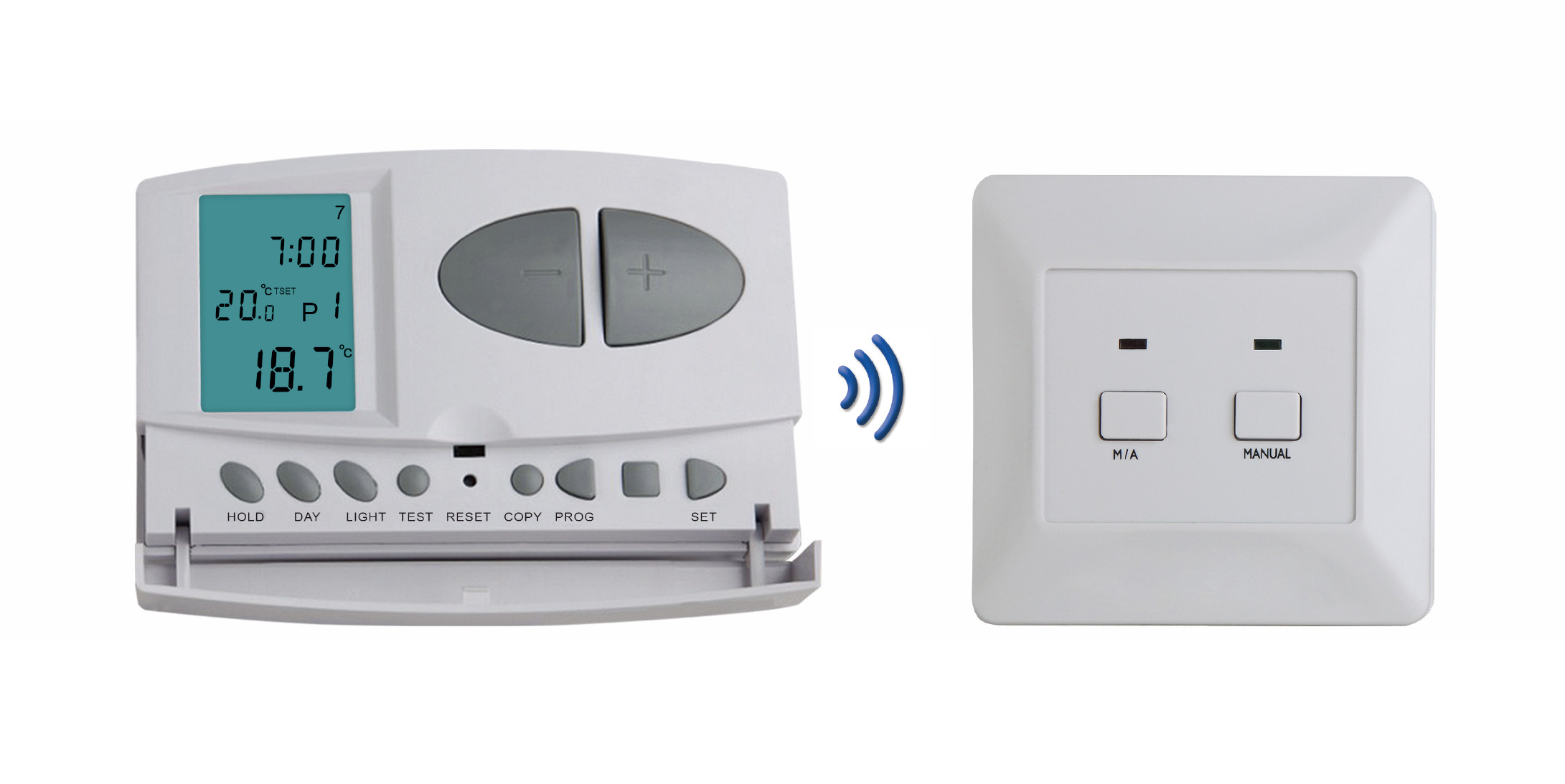

Wireless 7 Day Programmable Room Thermostat / Programmable Electric Thermostat

Basic Information
Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC
Model Number: Q7RF
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1piece in color box,8pcs in a innex box,2 innex boxs in 1 out carton
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detail Information
Material: OMRON Relay Volt: 16V
Color: White Programmable: Programmable
Power: 2*AAA Size Battery Contact Rating: 8(2)A 230VAC Max
High Light:

5-1-1 day programmable thermostat


seven day programmable thermostat

Product Description


 Model :Q7 RF

Transmitter:                                                      Receiver:

1. 2*AA size battery                                            1. AUTO/MANUAL Switch

2. 6 Time & 6 Temp,per day                               2. LED system indicator

3. 7 Day programmable                                      3. Contact rating: 8(2)A 230VAC Max

4. 868Mhz for more stable communication

5. EL back light

6. Manual override mode


Model No.:




Operating Frequency:

868.35 MHz



Temperature Range (℃):

5℃-35℃ in 0.5℃

Control Temp.Range (℃):

10℃-30℃ in 0.5℃




±0.2°C / ±0.3°C

 Storage Temperature:

-10°C to +60°C

Power Method:

2x1.5 V AA alkaline batteries (LR6 type)

Power Consumption:

1.3 mW


130 x 80 x 35mm (without holder)

Temp. Sensor Type:

NTC 10 kΩ ±1% at 25°C



Power Consumption:


Power Supply Voltage:

230V AC, 50Hz

Switchable Voltage:

24 V AC / DC,…250 V AC; 50 Hz

Switchable Current:

6 A (2 A inductive load)

Transmission Distance:

approx. 50 m in open terrain
