Place of Origin: | CHINA |
---|---|
Brand Name: | OEM ODM |
Certification: | CE LVD EMC |
Model Number: | S2303 |
Minimum Order Quantity: | 100pcs |
Price: | negotiation |
Packaging Details: | 1 piece in color box,8 pcs in innex box,2 innex boxex in out carton |
Delivery Time: | 30 DAYS |
Payment Terms: | T/T |
Supply Ability: | 100000/MONTH |
Metariel: | OMRON | Programmable: | 7 Days Programmable |
---|---|---|---|
Backlight: | LED Bule Backlight | VOLT: | 16V |
AMP: | 10A | HEAT/COOL: | HEAT/COOL Switch |
High Light: | electronic radiator thermostat,electric furnace thermostat |

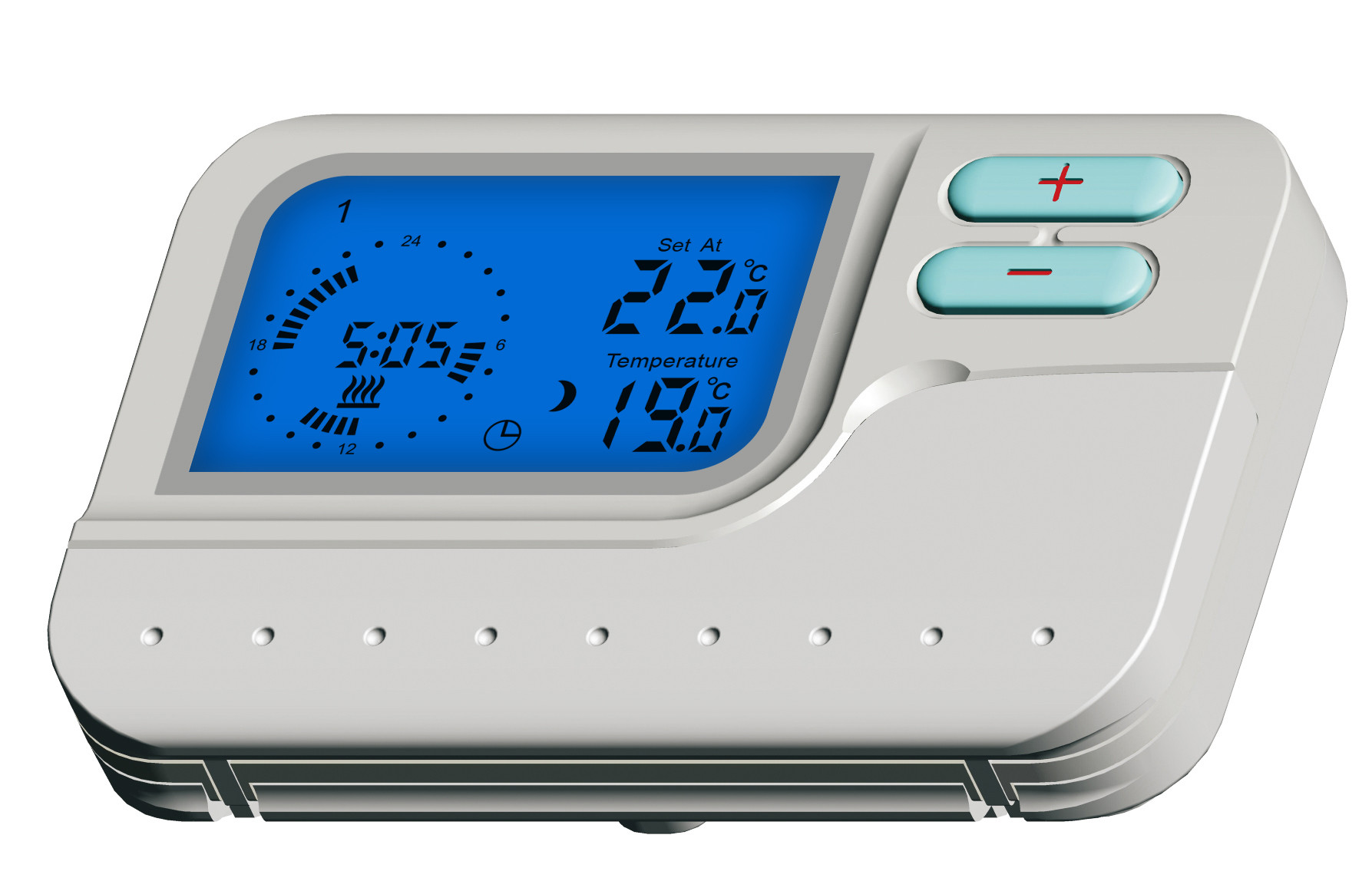

Model S2303
1. 7 Day programmable
2. 48 Time & 2 Temp,per day
3. LED Blue backlight
4. Manual override mode
5. 2*AA A size battery
6. Contact rating: 8(2)A 230VAC Max
7. Keypad lockout
8. HEAT/COOL mode switch
Applications:
1. HVAC System
2. Building ventilation systems
3. Industry ventilation systems
4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication heat/cool
5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%
6. All other ventilation systems
Model No.: |
S2303 |
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
Switchable Current: |
6 A (2 A inductive load) |
Programmability: |
7 Day Programmable |
Temperature Range (°C): |
0°C-40°C in 0.1°C |
Control Temp.Range (°C): |
5°C-35°C in 0.5°C |
Temp.Meas.Accuracy: |
±1°C (at 20°C) |
Storage Temperature: |
-10°C to +60°C |
Power Method: |
2 x AAA 1.5V Lithium batteries |
Dimensions: |
119 x 80 x 26 mm |
