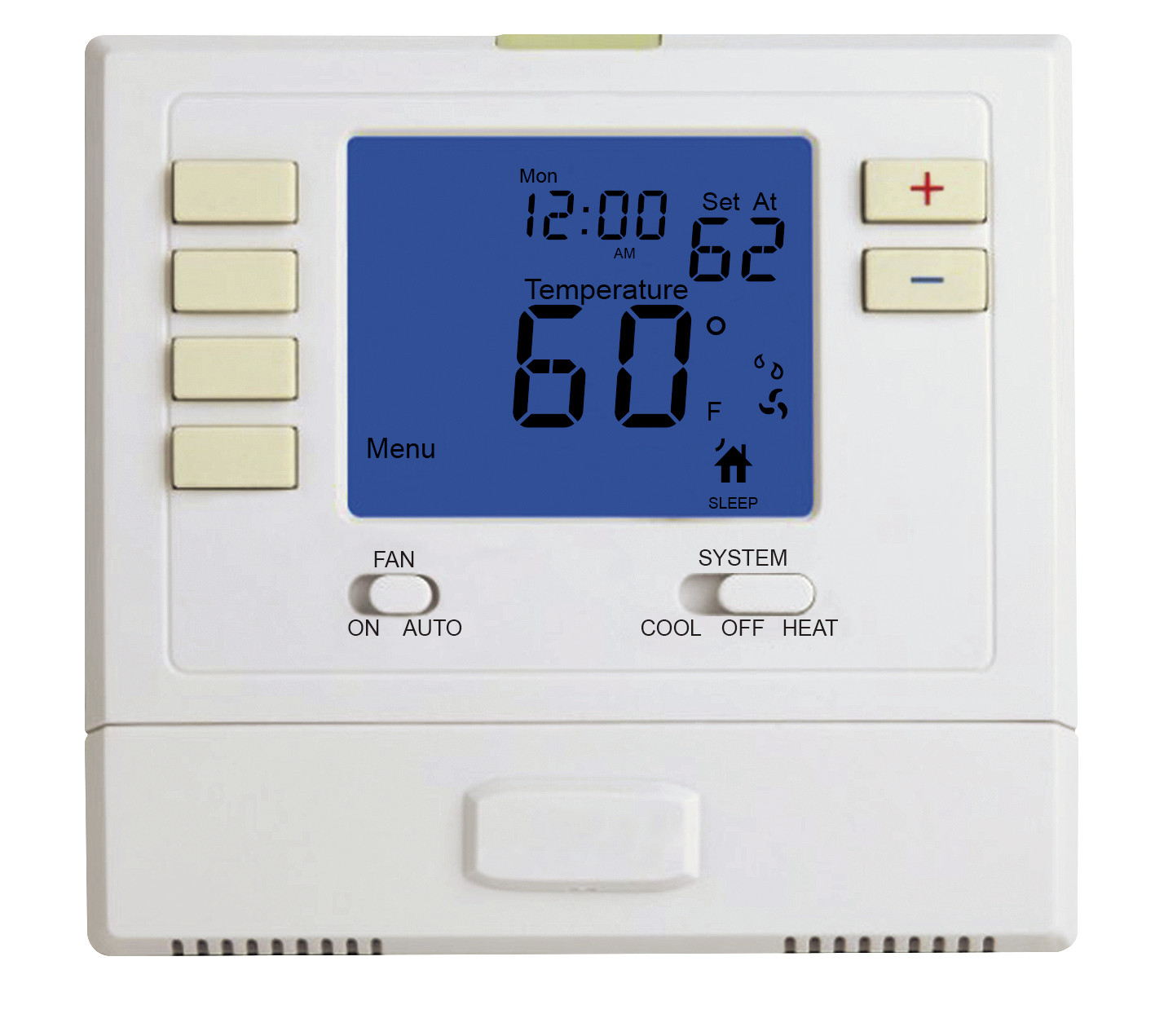

1 Heat 1 Cool Electronic Room Thermostat For Heating And Air Conditioning
Product Details:
Place of Origin: | CHINA |
Brand Name: | OEM ODM |
Certification: | CE LVD EMC |
Model Number: | T705 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100pcs |
---|---|
Price: | negotiation |
Packaging Details: | 1 PIECE IN color box |
Delivery Time: | 30 DAYS |
Payment Terms: | T/T |
Supply Ability: | 100000/MONTH |
Detail Information |
|||
Material: | OMRON | Multi Stage: | 1 HEAT 1 COOL |
---|---|---|---|
Programmable: | 5/1/1 Programmable | Blacklight: | Bule Blacklight |
Battery: | 24V Battery | Color: | White |
Net Weight: | 0.22KG | ||
High Light: | electronic programmable thermostat,electronic radiator thermostat |
Product Description
1 Heat 1 Cool Digital Room Thermostat 24V With Blue Backlight
T705
5/1/1 programmable
· Easy menu driven programming
· Intuitive wake, leave, return, sleep
programming icons
· 4 sq. inch display
· Blue backlight
· Glow in the dark light button
· Easy access battery compartment
· Electric or Gas configurable
· Wall mount or junction box
· Separate B&O terminals
· Room temperature calibration adjustment
· Separate heating and cooling swing (cyclerate) adjustments including 2nd stage adjustments
· Filter change indicator (selectable on or off)
· 5 minute compressor delay protection (selectable on or off)
· Universal sub-base
· Easy wire color coded terminal blocks
· Battery or 24V power
·
Model No.: |
T705 |
Application: |
Single Stage (Heat/Cool) |
Stages: |
1 Heat/1 Cool |
Programmability: |
5/1/1 Programmable |
User Interface: |
Push Button |
Mount: |
Horizontal |
Temperature Range (°F): |
41°F - 95°F |
Control Temp.Range (°F): |
44°F - 90°F |
Operating Humidity: |
90% non-condensing |
Power Method: |
Battery or 24V |
·
Applications:
1. HVAC System
2. Building ventilation systems
3. Industry ventilation systems
4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication
heat/cool
5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%
6. All other ventilation systems
