Material: | OMRON | Multi Stage: | 2 HEAT 2 COOL |
---|---|---|---|
Programmable: | 5/1/1 Programmable | Blacklight: | Bule Blacklight |
Battery: | 24V Battery | Color: | White |
Net Weight: | 0.22KG | ||
High Light: | 5-2 day programmable thermostat,seven day programmable thermostat |

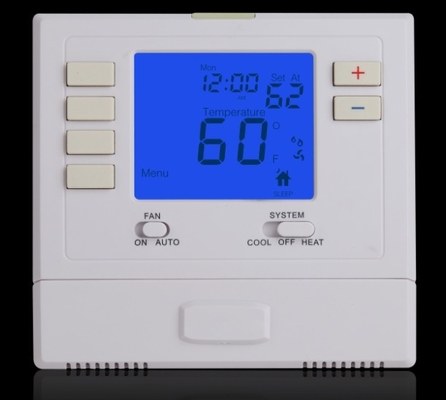

2 Heat 2 Cool Digital Room Thermostat 24V With Blue Backlight
T715
5/1/1 programmable
· Easy menu driven programming
· Intuitive wake, leave, return, sleep
programming icons
· 4 sq. inch display
· Blue backlight
· Glow in the dark light button
· Easy access battery compartment
· Electric or Gas configurable
· Wall mount or junction box
· Separate B&O terminals
· Room temperature calibration adjustment
· Separate heating and cooling swing (cycle
rate) adjustments including 2nd stage adjustments
· Filter change indicator (selectable on or off)
· 5 minute compressor delay protection (selectable on or off)
· Universal sub-base
· Easy wire color coded terminal blocks
· Battery or 24V power
Applications:
1. HVAC System
2. Building ventilation systems
3. Industry ventilation systems
4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication
heat/cool
5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%
6. All other ventilation systems
Model No.: |
T715 |
Application: |
Multi Stage (Heat/Cool) |
Stages: |
2 Heat/2 Cool |
Programmability: |
5/1/1 Programmable |
User Interface: |
Push Button |
Mount: |
Horizontal |
Temperature Range (°F): |
41°F - 95°F |
Control Temp.Range (°F): |
44°F - 90°F |
Operating Humidity: |
90% non-condensing |
Power Method: |
Battery or 24V |
