| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ODM |
| Certification: | CE/UL |
| Model Number: | STN715W |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 45-60 days |
| Payment Terms: | L/C, T/T, Western Union, /Paypal |
| Supply Ability: | 100000 pieces/month |
| Product Name: | 24v Room Thermostat | Application: | Hotel,household,indoor,room |
|---|---|---|---|
| Voltage: | 24V Or Battery | Commodity Weight:: | 227 G |
| Display: | 4.5 SQ Inch | Temperature Range: | 44℉ To 90℉ |
| Backlight: | Orange,blue Or Green Backlight | Programmability: | Yes |
| Material: | Plastic | Certificate: | CE/UL |
| High Light: | Wifi Home HVAC Thermostat,Programmable Home HVAC Thermostat,Alkaline Batteries 7 Day Programmable Thermostat |
||

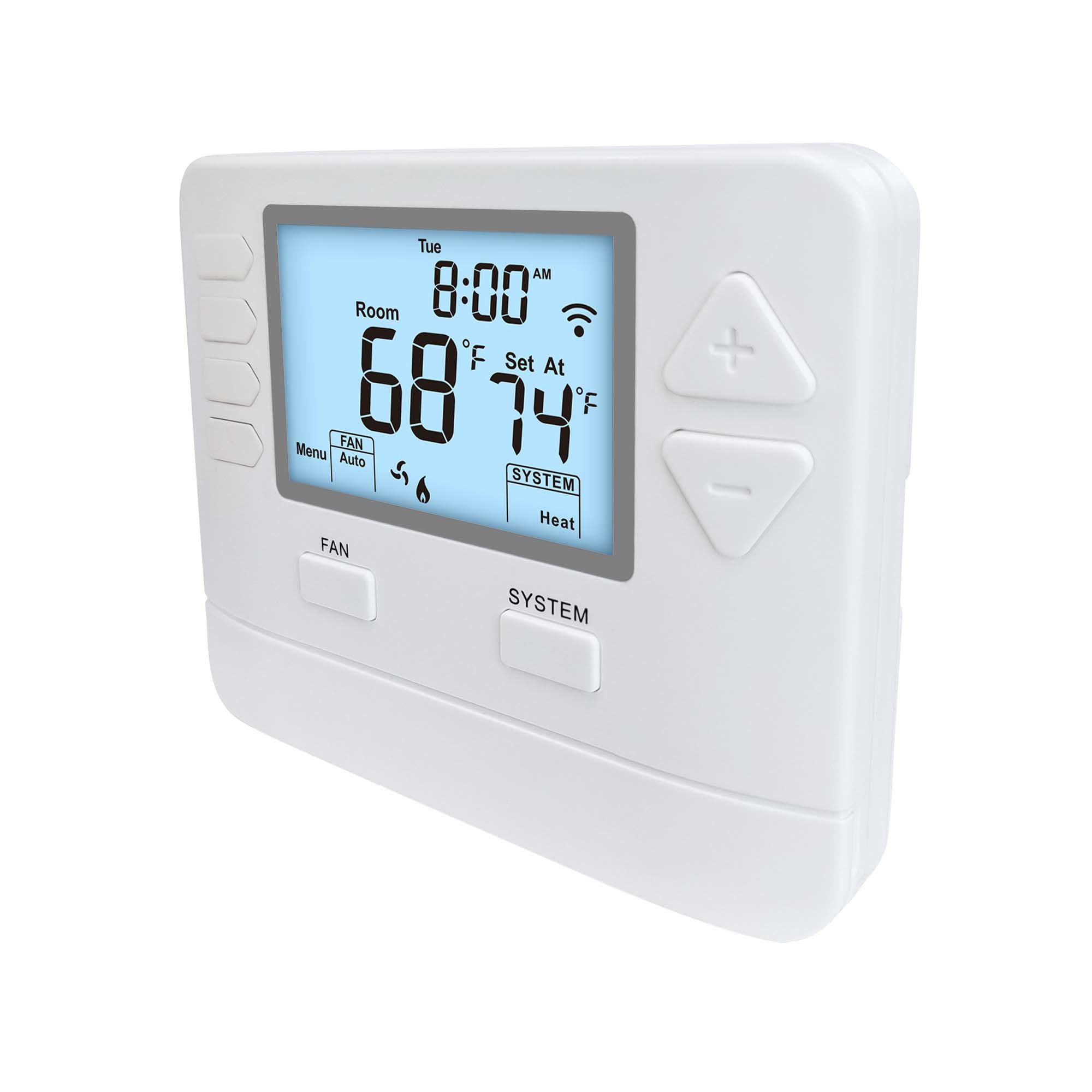

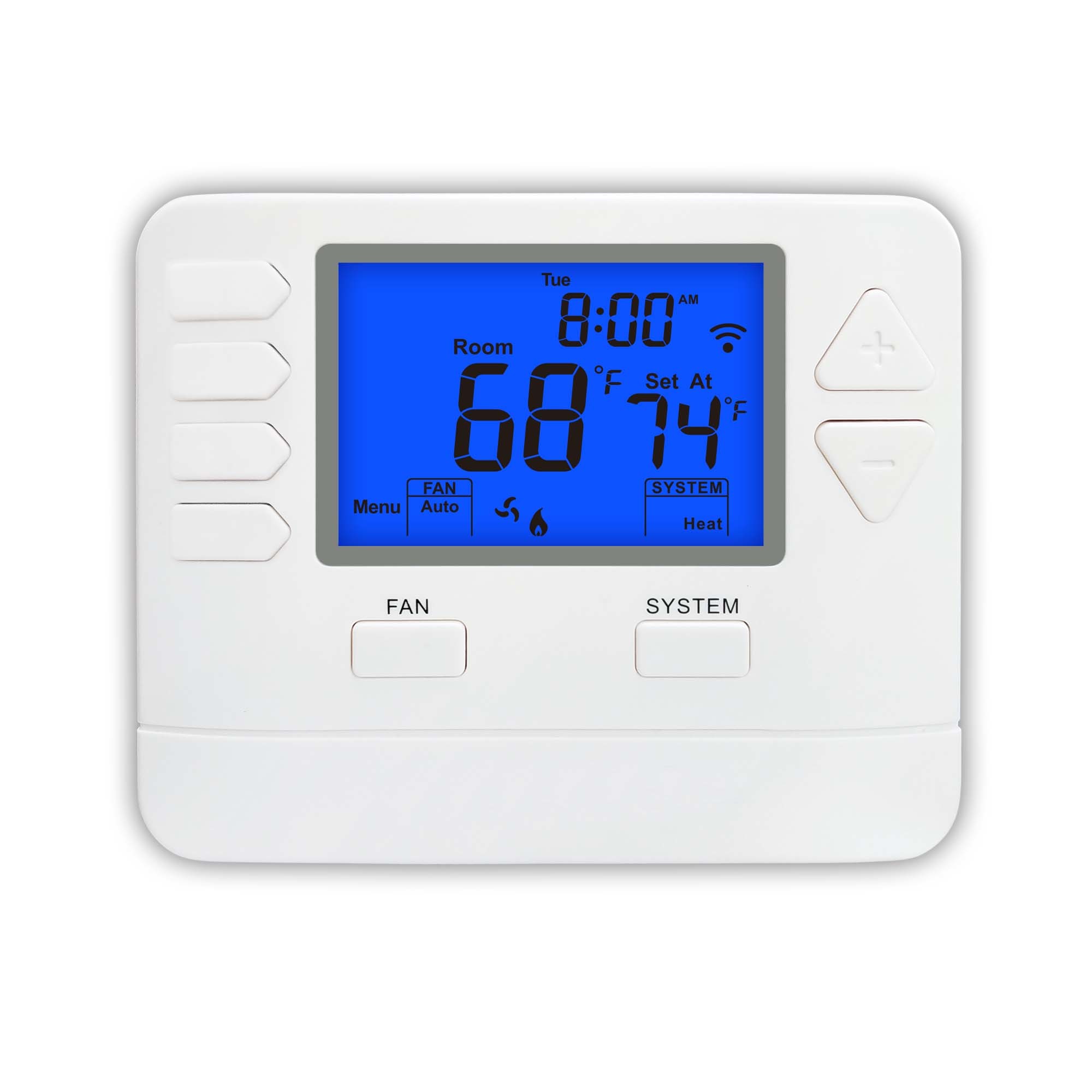

24 Volts Programmable WIFI Thermostat
| Stages: | 2 Heat / 2 Cool |
| Switchable Voltage: |
24 VAC(18 to 30 VAC), 50/60 Hz 2*AAA 1.5V Alkaline batteries power |
| Low battery indicator: | Under 2.7 V (without 24V power supply) |
| Programmability: | 5(Mo~Fr)/1(Sa)/1(Su) Programmable |
| Program: | 4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP” |
| Temperature Range (°C): | 32℉ to 99℉ (1℃ to 40℃) |
| Control Temp.Range (°C): | 44℉ to 90℉ (7℃ to 32℃) |
| Display accuracy: | ±1℉(under 68℉) |
| Load rating: |
1.0Amp per terminal, 1.5Amp maximum all terminals combined |
| Backlight: | Blue/Green/white |
| Fan Switch: | AUTO/ON |
| System Switch: | HEAT/OFF/COOL |
| Differential: | 0.2 to 2.0℉ |
| Dimensions of thermostat: | 120 x 98 x 28 MM |
Set Program Schedule
To customize your program schedule, follow these steps:
1. Select HEAT or COOL from the system switch.
Note: You have to program heat and cool each separately.
2. Press MENU
3. Press SET SCHED.
Note: Monday-Friday is displayed and the WAKE icon is shown. You are now programming the wake time period for the weekday setting.
4. Time is flashing. Use the + or - key to make your time selection for the weekday WAKE time period (step: 10 minutes).
5. Press NEXT STEP
6. The setpoint temperature is flashing. Use the + or - key to make your setpoint selection for the weekday wake period (step: 1℉).
7. Press NEXT STEP
8. Repeat steps 4 through 7 for weekday LEAVE, RETURN and SLEEP time period.
9. Repeat steps 4 through 7 for Saturday WAKE, LEAVE,RETURN and SLEEP time period.
10. Repeat steps 4 through 7 for Sunday WAKE, LEAVE,RETURN and SLEEP time period.
11. Press DONE when completed or quit after 15 seconds automatically.
