| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM/OEM |
| Certification: | CE/UL |
| Model Number: | STN3005 |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 45-60 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram/Paypal |
| Supply Ability: | 60000 pieces/month |
| Product Name: | Digital Programmable Room Thermostat | Stages:: | 1 Heat/1 Cool |
|---|---|---|---|
| Programmability: | Programmable | Display: | 4.5 SQ Inch |
| Commodity Weight:: | 236 G | Backlight: | Customied Backlight |
| Material: | Plastic | OEM: | OEM Service |
| Application: | Household | Voltage: | 24V Or Battery Power Supply |
| High Light: | Custom Backlight Digital Room Thermostat,Plastic Digital Programmable Thermostat,Air Conditioning System Digital Programmable Thermostat |
||

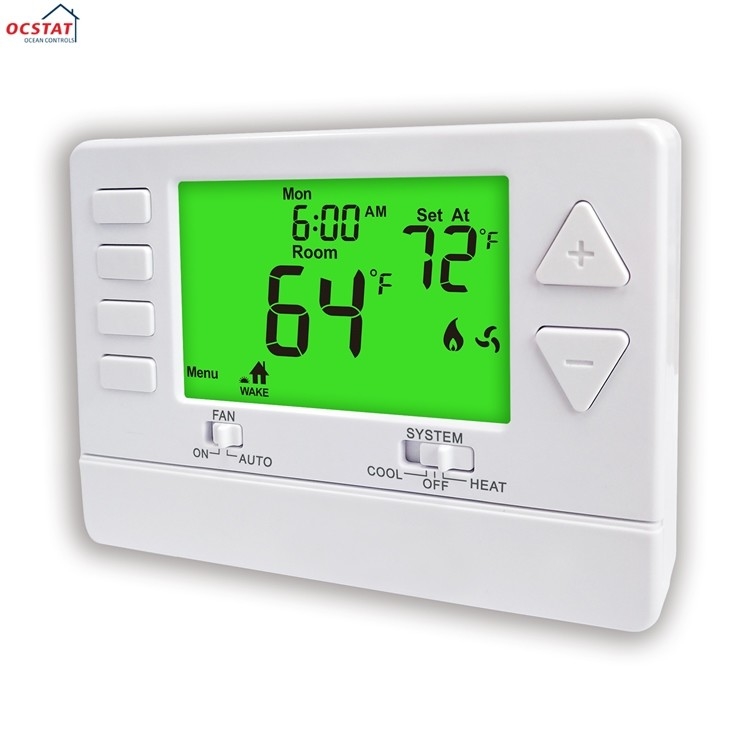

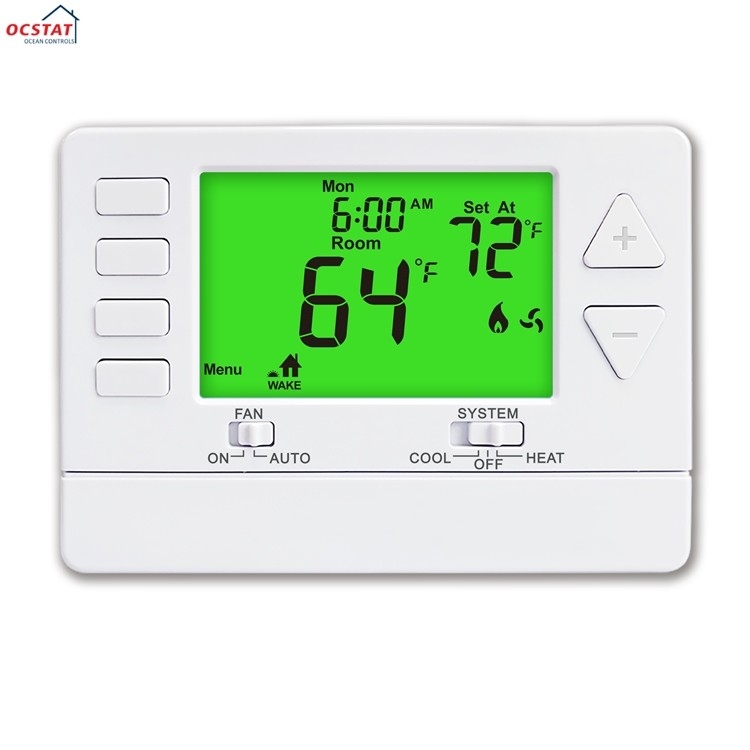

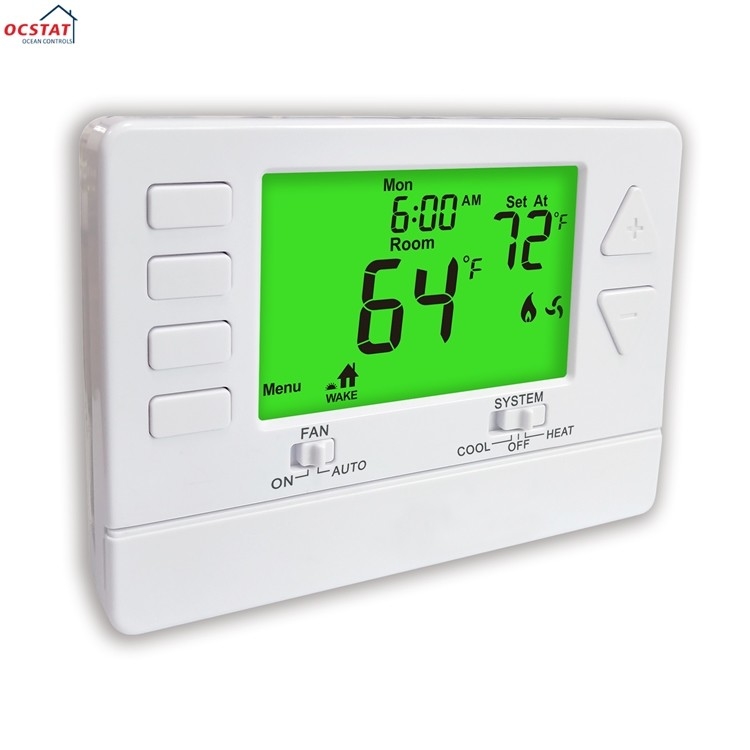

5 - 1 - 1 Programmable Digital Room Thermostat For Air Conditioning System
Application :
1.Single stage, 1 heat /１cool , 5(Mo~Fr)/1(Sa)/1(Su) Programmable
2.Intuitive wake, leave, return, sleep programming icons.
3.Electric or Gas configurable, Accurate temperature control of +/-1 Degree F for consistent comfort,
make comfortable temperatures to reduce energy usage, savings on annual heating and cooling costs.
4.Dual-powered (battery and/or hardwire),
5.Easy access battery compartment.
6.4.5 sq. inch display with white backlight,
7.Easy-to see and read.
8.large, clear backlit digital display,
9.with air filter change reminder and low battery indicator available.
10.With 1-year warranty.
System Switch:
Selects the operation mode of your HVAC system.
1.HEAT: Turns on the heat mode, B terminal drivers the ON, System On display (Heating) icon, heating drive (W terminal driver)
2.OFF: Turns both heating and cooling off
3.COOL: Turns on the air conditioning mode, B terminal drivers the ON, System On (Cooling) display icon, cooling drive (Y terminal driver)
Fan Switch:
ON: will run the fan continuously, G terminal will be continuously ON, display fan icon .
AUTO: will cycle the fan on or off under the cooling mode (G terminal), will not effected by ELEC/GAS.
Under the heating mode, select ELEC to allows the thermostat to operate the fan according to the ON/OFF of the system;
when select GAS, the fan will always be OFF.
Package containing:
STN3005 thermostat * 1
Screws and anchor * 2
User manual * 1
Box * 1
Product Information:
| Model :STN3005 |
| Single stage |
| 1 heat, 1 cool |
| 5-1-1 Day Programmable |
| Easy menu driven programming |
| Intuitive wake, leave, return, sleep programming icons |
| 4.5 sq. inch large LCD display with white backlight |
| Blue backlight/Customied |
| Glow in the dark light buttom |
| Easy acess battery compartment |
| Low battery indicator |
| Electric or Gas configurable |
| Seperate B & O terminals |
| Separate heating and cooling swing (cycle rate) adjustments |
| Air filter change indicator (selectable on or off) |
| Room temperature calibration adjustment |
| 5 minute compressor delay protection (selectable on or off) |
| Load rating: 1 Amp per terminal, 1.5 amp maximum all terminals combined |
| Simple private label badge system |
| Display options: Fahrenheit or Celsius temperature display, 12 or 24 hour clock |
| Easy wire color coded terminal blocks |
| Terminal Designations: RH, RC, G, Y, C, O, B, W |
| Universal sub-base |
| Mounts on wall or junction box |
| Battery or 24v power |
