| Place of Origin: | GuangDong |
|---|---|
| Brand Name: | OCSTAT |
| Certification: | CE/ROHS |
| Model Number: | S2303/S28 |
| Minimum Order Quantity: | 1pcs |
| Price: | US$12.8-13 |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 7-50DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 pcs/month |
| Type: | Floor Heating Parts, Floor Heating Systems, Floor Heating Thermostats, Bat-low Indicator, HVAC Systems | Color: | White |
|---|---|---|---|
| Floor Heating Part Type: | Floor Heating Thermostats, Floor Heating Cables, Floor Heating Panels, Under Flooring Heating System | Application: | Underfloor Heating System, Water Heating/Electric Heating System/Boiler, Indoor Underfloor Heating, Electric Underfloor Heating System.Radiant Heating Room Thermostat, Water Heating System |
| Load Rating: | 6(2)A, 230V | Dimensions: | 119 X 80 X 26 Mm |
| High Light: | Backlight Wired Digital Room Thermostat,Programmable Wired Digital Room Thermostat,Heating Cooling Programmable Room Thermostat Wired |
||

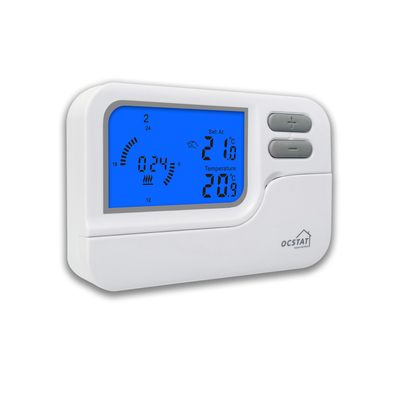

Heating / Cooling 7 Day programmable, with backlight ST2303/ST28
Specification
1.Programmability: 7 Day Programmable
2.Display Temperature Range:0°C~40°C (in 0.1°C increments)
3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)
4.Temperature measurement accuracy: ±1°C (at 20°C)
5.Power source: 2x AAA 1.5V ALKALINE BATTERY
6.Load Rating: 6(2)A, 230V
7.Low Battery Indicator: Display ““ when battery is less than 2.7V
8.Standby current:17uA, Lighting current ≤ 4.2mA
9.Backlight colour: Orange / Blue
10.Dimensions: 119 x 80 x 26 mm
This type of room thermostat is most frequent in mechanical thermostats. But, you can also find their electro-mechanical variants. To set the temperature on these thermostats, turn the dial to the desired temperature. When the boiler fires up, you'll generally hear a tick on many dial thermostats.
LCD Display
