| Place of Origin: | GuangDong |
|---|---|
| Brand Name: | OCSTAT |
| Certification: | CE,ROHS |
| Model Number: | ST2402RF |
| Minimum Order Quantity: | 1pcs |
| Price: | US$23.2-25PCS |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 7-50days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs/mouth |
| Type: | Floor Heating Parts, Floor Heating Systems, Floor Heating Thermostats, Bat-low Indicator, HVAC Systems | Color: | White |
|---|---|---|---|
| Floor Heating Part Type: | Floor Heating Thermostats, Floor Heating Cables, Floor Heating Panels, Under Flooring Heating System | Application: | Underfloor Heating System, Water Heating/Electric Heating System/Boiler, Indoor Underfloor Heating, Electric Underfloor Heating System.Radiant Heating Room Thermostat, Water Heating System |
| Dimensions: | 120 X 77 X 28 Mm (without Holder) | Standby Current: | 30uA, Lighting Current ≤ 6mA |
| High Light: | Transmitter RF Room Thermostat,RF Room Thermostat Programmable,Receiver RF Room Thermostat |
||
Specification

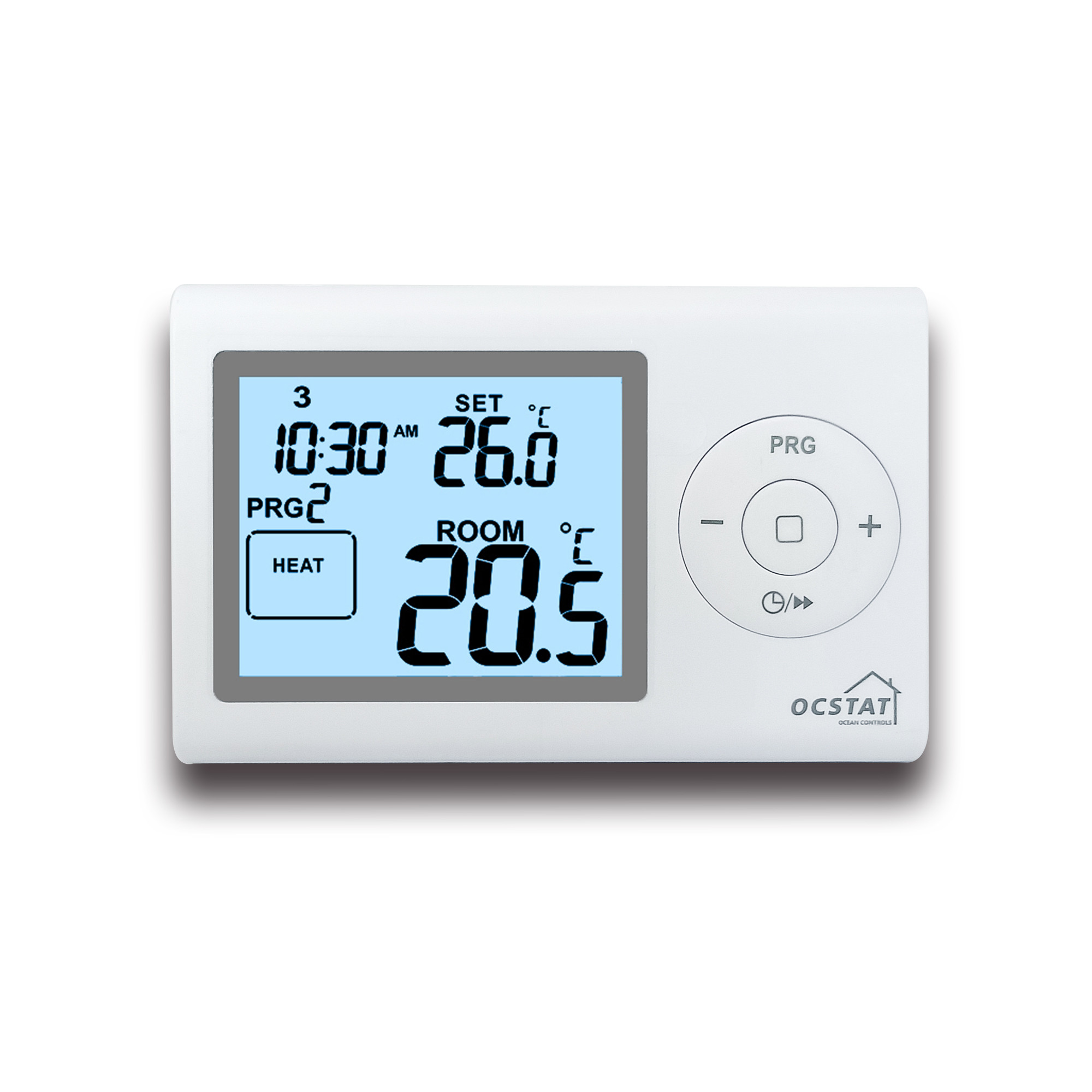

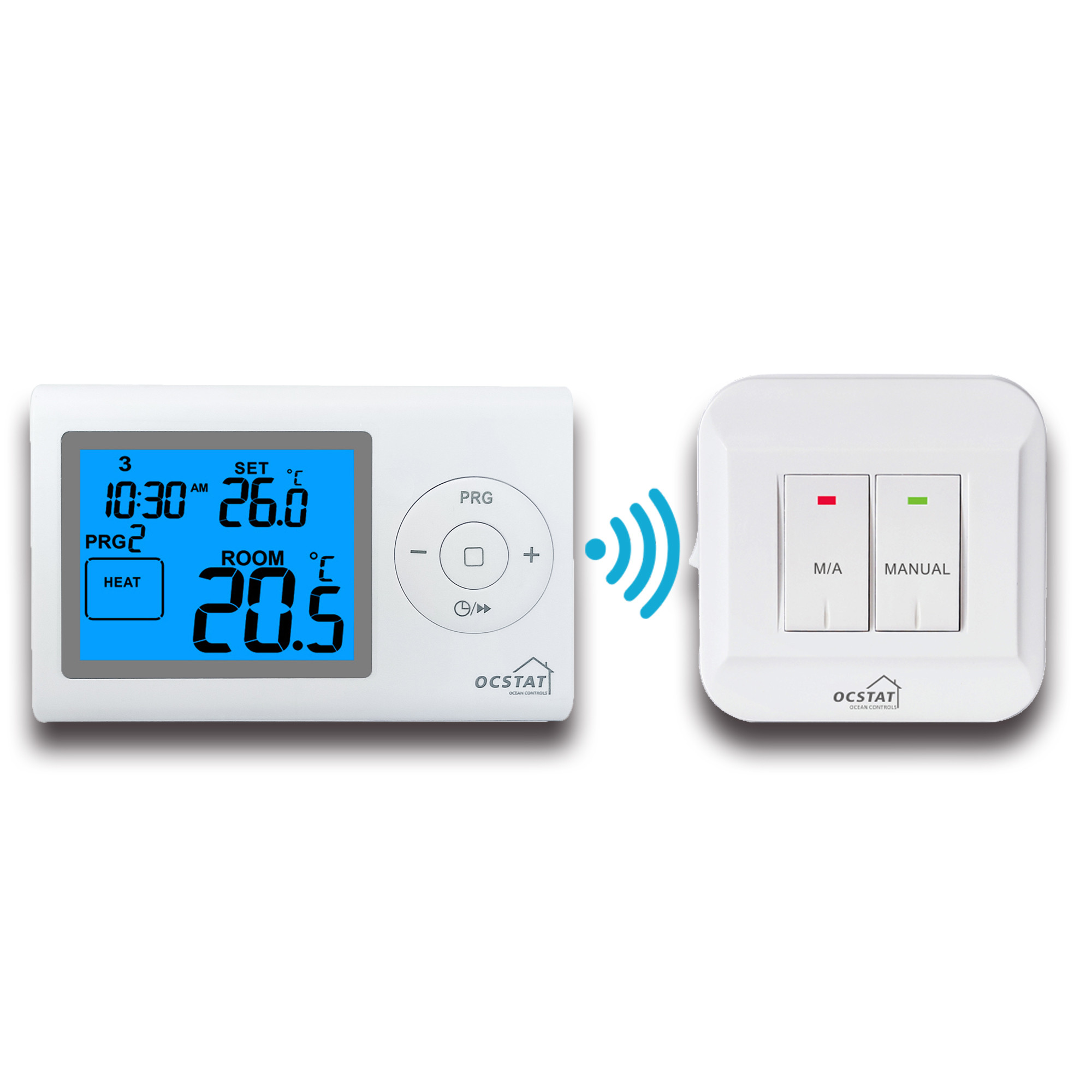

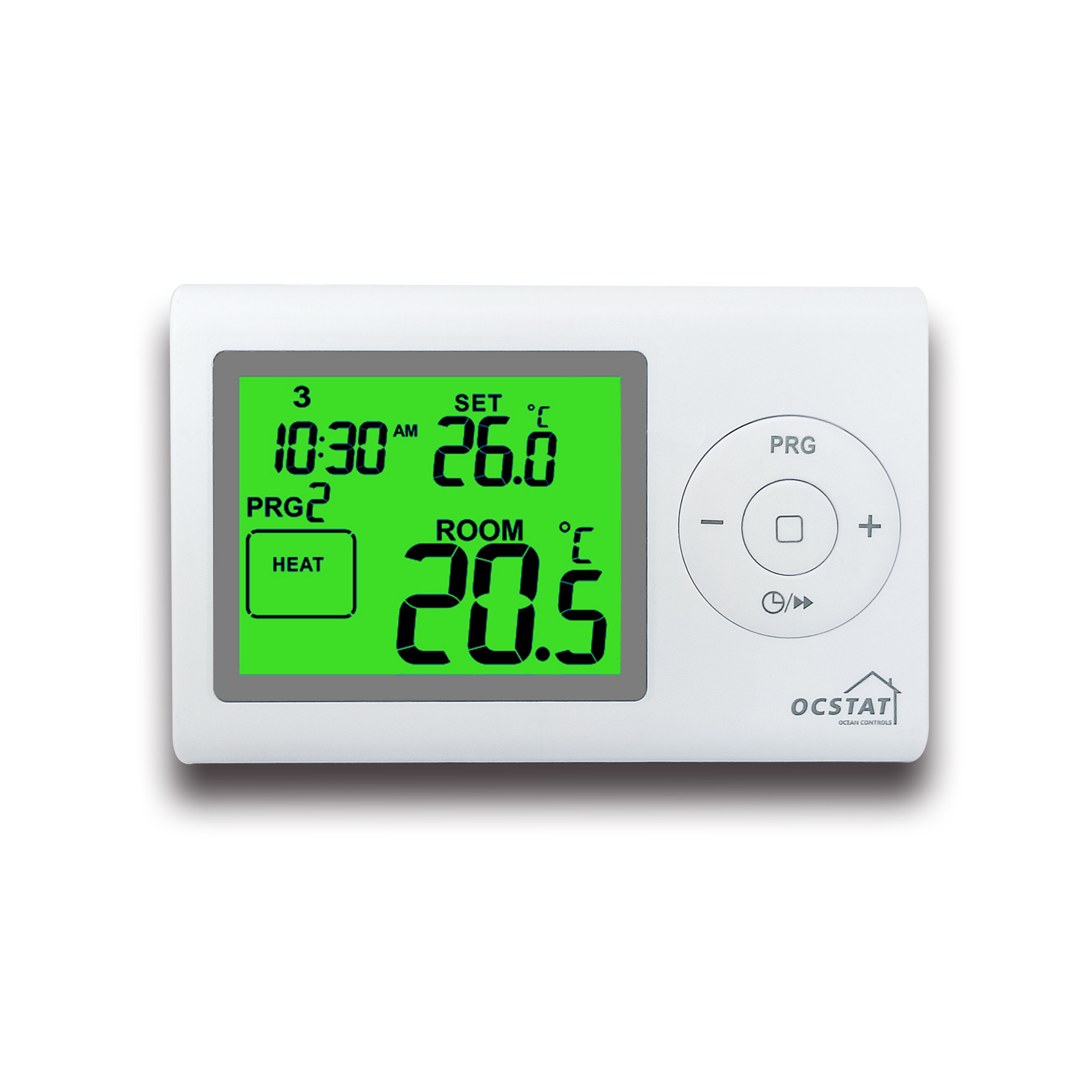

Transmitter / Receiver Wireless 7 Day programmable 6 Time & 6 Temp,per day, with backlight Thermostat ST2402RF
Transmitter (thermostat):
1.Programmability: 7 Day, 5/2 Day and 24 hour Programmable
2.Display Temperature Range:0°C~40°C (in 0.1°C increments)
3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)
4.Temperature measurement accuracy: ±1°C (at 20°C)
5.Power Supply: DC 2x AAA 1.5V Alkaline Batteries
6.Switchable Current: 6 A (2 A inductive load), 230V
7.Low Battery Indicator: Display ““ when battery is less than 2.7V
5.Load Rating: 6(2)A, 230V
6.Low Battery Indicator: Display ““ when battery is less than 2.7V
8.Standby current:30uA, Lighting current ≤ 6mA
9.Backlight colour: White
10. Dimensions: 120 x 77 x 28 mm(without holder)
Receiver:
1. Power Supply: 230VAC, 50HZ
2. Operating Frequency:868.35MHZ
3. Transmission Distance: approx. 100m in open terrain
4. Consumption: 6W
5. Maximum Load: 6(2)A, 230V
6. Dimensions: 86 x 86 x 26 mm
