| Place of Origin: | GuangDong |
|---|---|
| Brand Name: | OCSTAT |
| Certification: | CE,ROHS |
| Model Number: | S2303RF |
| Minimum Order Quantity: | 1pcs |
| Price: | US$23-23.2PCS |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 7-50days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs/mouth |
| Type: | Floor Heating Parts, Floor Heating Systems, Floor Heating Thermostats, Bat-low Indicator, HVAC Systems | Color: | White |
|---|---|---|---|
| Floor Heating Part Type: | Floor Heating Thermostats, Floor Heating Cables, Floor Heating Panels, Under Flooring Heating System | Application: | Underfloor Heating System, Water Heating/Electric Heating System/Boiler, Indoor Underfloor Heating, Electric Underfloor Heating System.Radiant Heating Room Thermostat, Water Heating System |
| Programmability: | 7 Day Programmable | Display Temperature Range: | 0°C~40°C (in 0.1°C Increments) |
| High Light: | Wireless Heating RF Room Thermostat,Backlight RF Room Thermostat,Wireless RF Room Thermostats |
||

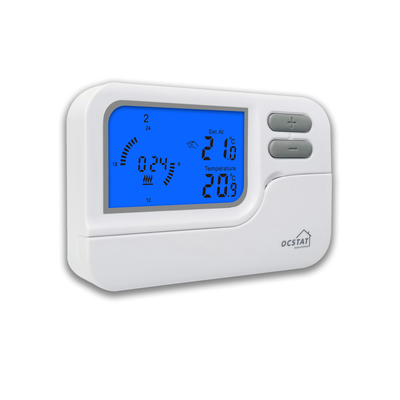

Transmitter / Receiver Wireless Heating / Cooling 7 day Programmable, with backlight Thermostat S2303RF
Specification
1.Programmability: 7 Day Programmable
2.Display Temperature Range:0°C~40°C (in 0.1°C increments)
3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)
4.Temperature measurement accuracy: ±1°C (at 20°C)
5.Power source: TX: 2x AAA 1.5V ALKALINE BATTERY
RX:230VAC/50HZ
6.Load Rating: 6(2)A, 230V
7.Low Battery Indicator: Display ““ when battery is less than 2.7V
8.Standby current:17uA, Lighting current ≤ 4.2mA
9.Backlight colour: Orange / Blue
10.Operating Frequency:868.35MHZ
11.Transmission Distance: approx. 200m in open terrain
12.Dimensions: TX: 119 x 80 x 26 mm (without holder)
RX: 86 x 86 x 26 mm
