| Place of Origin: | GuangDong |
|---|---|
| Brand Name: | OCSTAT |
| Certification: | CE,ROHS |
| Model Number: | S2305 |
| Minimum Order Quantity: | 1pcs |
| Price: | US$11 |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 7-50days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs/mouth |
| Type: | Floor Heating Parts, Floor Heating Systems, Floor Heating Thermostats, Bat-low Indicator, HVAC Systems | Floor Heating Part Type: | Floor Heating Thermostats, Floor Heating Cables, Floor Heating Panels, Under Flooring Heating System |
|---|---|---|---|
| Application: | Underfloor Heating System, Water Heating/Electric Heating System/Boiler, Indoor Underfloor Heating, Electric Underfloor Heating System.Radiant Heating Room Thermostat, Water Heating System | Certifications: | CE, ROHS |
| Material: | PC+ABS | Usage: | Household, Underfloor Heating Controls System, Bolier Temperature Controller, Gas Boiler, Underfloor Water Heating |
| High Light: | Alkaline Batteries Wired Room Thermostat,Wired Room Thermostat With Backlight,Non Programmable Thermostat With Backlight |
||

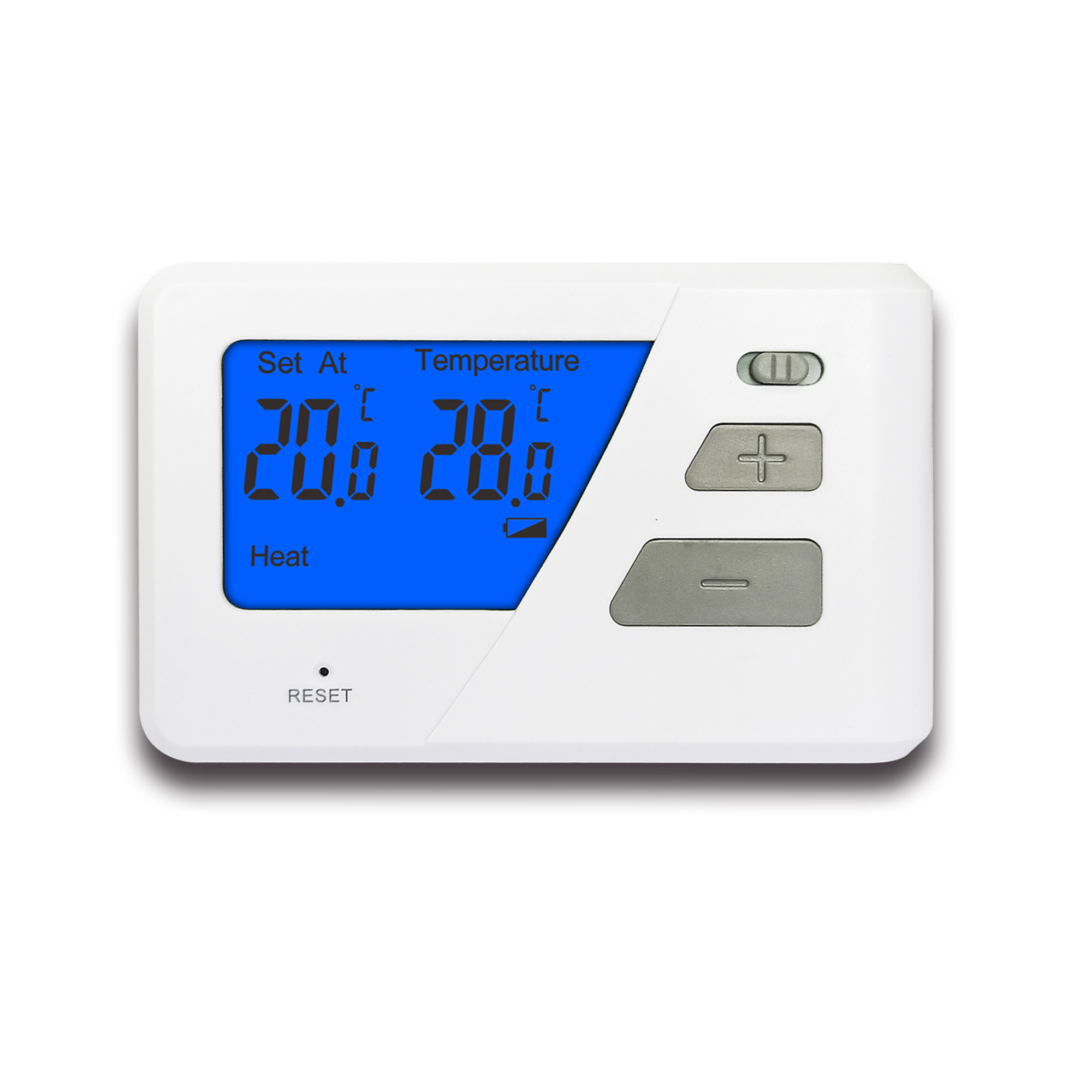

Heating / Cooling Non-Programmable, With Backlight Room Thermostat S2305
Specification
1.Programmability: Non-programmable
2.Display Temperature Range:3°C~37°C (in 0.1°C increments)
3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)
4.Temperature measurement accuracy: ±1°C (at 20°C)
5.Defrosting Temperature: +7°C
6.Power source: 2x AAA 1.5V Alkaline Batteries
7.Load Rating: 6(2)A, 230V
8.Low Battery Indicator: Display ““ when battery is less than 2.7V
9.Standby current:≤20uA/DC3V, Lighting current ≤ 4.2mA
10.Backlight colour: Orange / Blue
11.Dimensions: 122 x 76 x 25 mm
LCD Display
Settings
1. HEAT SWING: Hold + and - under the “HEAT”mode for 3 secs to enter the interface of Swing setting (in 0.2~2); Press + or - to set the desired value,then wait for 15 secs for auto confirmation.
2. COOL SWING: Hold + and - under the “COOL”mode for 3 secs to enter the interface of Swing setting (in 0.2~2); Press + or - to set the desired value, then wait for 15 secs for auto confirmation.
Reset
1. Press RESET to reset the thermostat (turn off then turn on the power, the settings won’t be changed).
2. Hold -, then press RESET to restore the factory default settings.
