EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control

EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control

Product Details:

Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC
Model Number: ST2303RF

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: I piece in color box,8pcs in innex box,2 innex boxes in 1 out carton
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Get Best Price Contact Now

Detail Information

Material: Anti-flammable PC +ABS Certifications: CE /ROHS /EMC /LVD /SGS
Usage: Room / Indoor / Hotel /Apartment Programmmable: 7 Days Programmable
Voltage: Battery Or 230V Nature Of Business: ODM & OEM Manufacture
Feature: Underfloor Heating Thermostat Accuracy: ±0.5℃
Warranty: 2 Years Backlight And Color: Customized
High Light:

Wireless 7 Day Programmable Thermostat

,

EMC 7 Day Programmable Thermostat

,

EMC Programmable Room Thermostat

Product Description

EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control

Product Description
Product Name
S2303RF
Material
Anti-flammable PC +ABS
Function
Floor Heating
Package
Carton packing

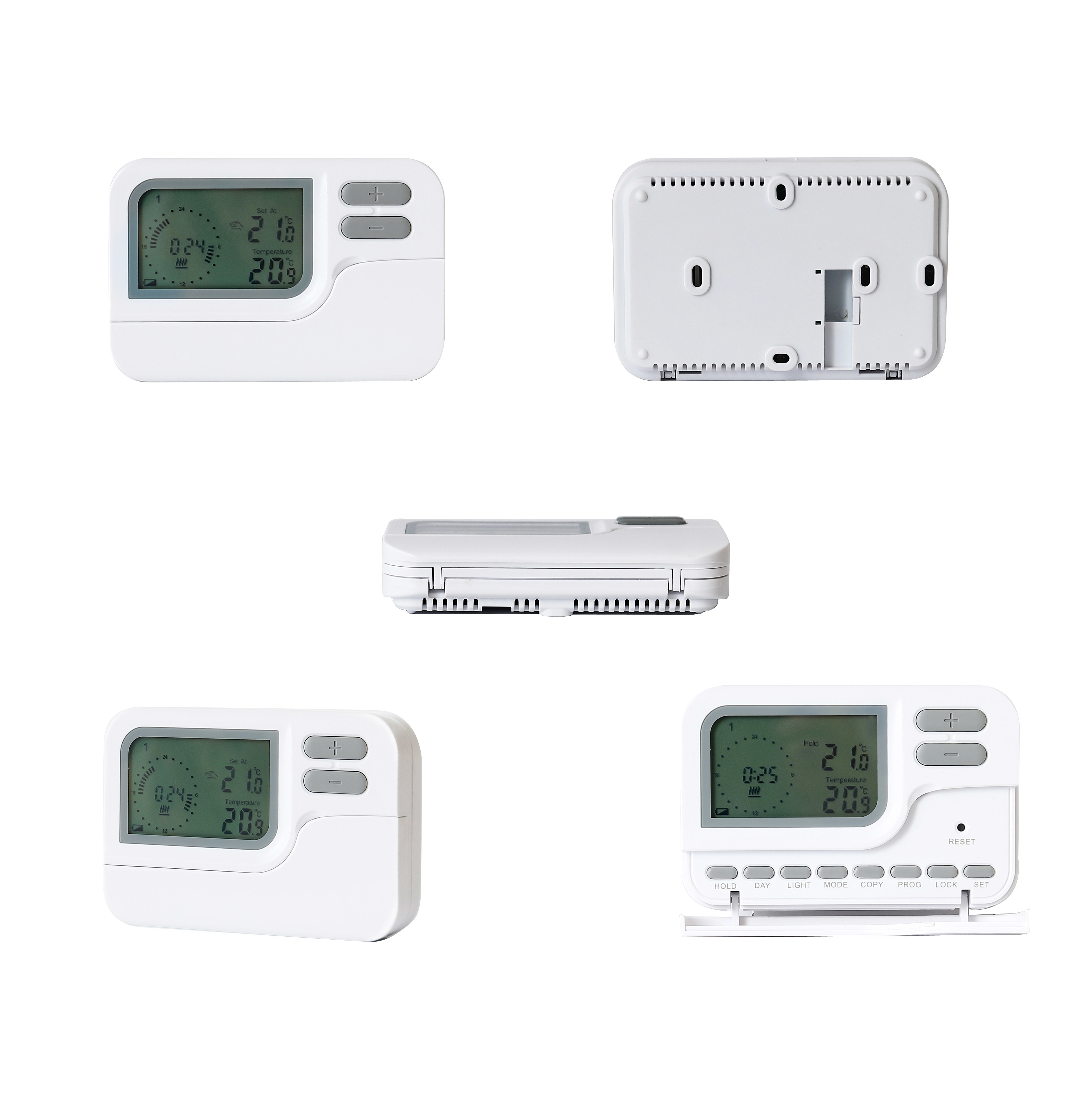

EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 0
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 1
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 2
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 3
Model Number
ST28RF
Transmitter:

Switchable Voltage
24 V AC/DC,...250 V AC;50HZ
Switchable Current
6 A (2 A inductive load)
Programmability
7 Day Programmable
Temp.Meas.Accuracy
±1℃(at 20℃)
Temperature Range(℃)
0℃-40℃ in 0.5℃
Control Temp. Range(℃)
5℃-35℃ in 0.5℃
Power Source
DC 2*AAA 1.5V Alkaline batteries
Defrosting Temperature:
+7°C
Dimensions
119×80×26mm
Receiver:

Power Supply
230VAC,50HZ
Operating Frequency
868.35MHZ
Transmission Distance
approx. 200m in open terrain
Consumption
6W
Maximum Load
6(2)A,230V
Dimensions
86×86×26mm

* Product performance description


Model No.: S2303 RF Specifications: Transmitter:
1. Operating Frequency: 868.35 MHz
2. 7 Days Programmable
3. Temperature Range (°C): 0°C-40°C in 0.1°C
4. Control Temp.Range (°C): 5°C-35°C in 0.5°C
5. Temp.Meas.Accuracy: ±1°C (at 20°C) 6.Defrosting Temperature: +7°C
7. Power Method: 2x1.5 V AA alkaline batteries (LR6 type)
8. Dimensions: 118 x 73 x 34 mm (without holder)
9. HEAT/COOL MODE Switch

Receiver:
1. Power Consumption: 6W
2. Power Supply Voltage: 230V AC, 50Hz 3.Switchable Current: 8 A (2 A inductive load) 4.Transmission Distance: approx. 50 m in open
terrain
Product Usage

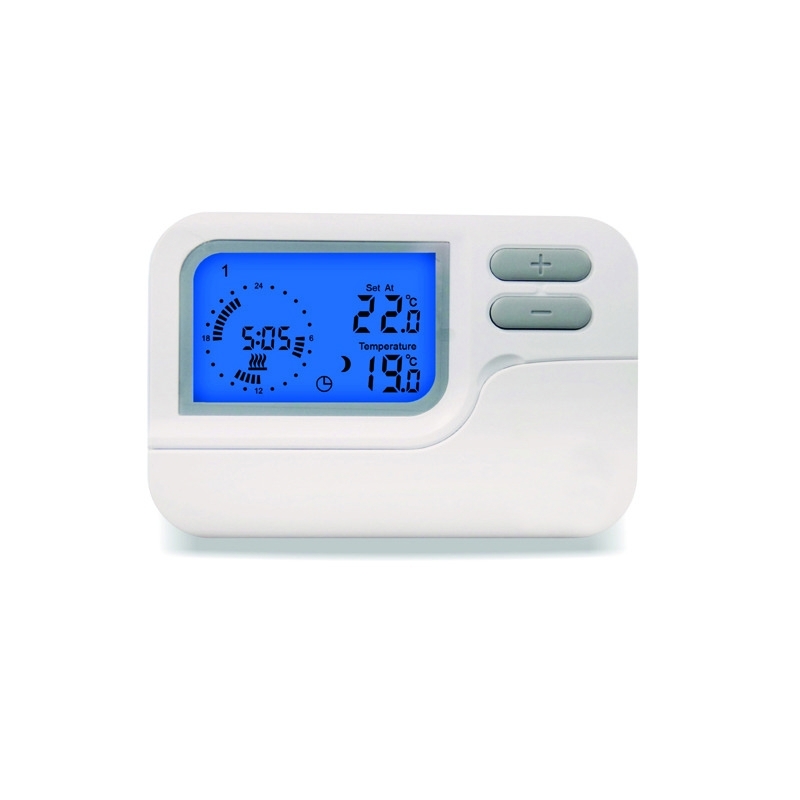

EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 4
  •

    • Product usage introduction



• Large clear LCD display
• Various backlight color optional
• HEAT (Heating) / COOL (Cooling) / OFF (Frost Protection)
• Room Temperature Calibration adjustment (in -3~+3°C)
• Contemporary design
• Simple Operation
• Easy installation
  •

What We Are Manufacturing?
1> Programmable/Non-programmable thermostat
2> Wireless RF/Wired thermostat
3> Touch Screen/Dail/Push Button thermostat
4> Timer/Programmable/Humidity thermostat
5> Pipe/Cylinder Control
6> Ventilation Control
7> Underfloor Heating Control
8> Heating System Control Center
9> Provide OEM/ODM service to worldwide customer, including manufacturing, design,engineering and tooling.
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 5
Company Profile
Ocean Controls Limited is based on a former with 16 years experience in designing/manufacturing top-end digital room thermostat. We provides OEM/ODM services to worldwide customers, including manufacturing, design,engineering and tooling.

With many years of experience, our products is featured with unrivalled quality, reliability and durability. We exports our
products to all over the world, Currently our normal products including: non-programmable, programmable thermostat, single stage, multi stage thermostat, push button, touchscreen thermostat, wired and wireless RF thermostats. The products qualities level are all up to CE, R&TTE,FCC,UL and CSA approved standard.

Our factory has three sets of CNC,10 sets of injection molding machine and advanced moulding equipments, the monthly capacity is around 50,000 pcs .

All our engineers are with more than 10 years experience in this field, they are strong in design of electronic room
thermostat,HVAC controller and accessories. In addition, we have much experience in RF remote control products like remote wireless thermostat. Based on above, we can design/develop new models for you upon technical specification or samples.

As a company, we strive to excel in the quality of products we sell, the service we provide and the support we give. We alwayskeep improving and we believe that we can doing better and better together with our clients!
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 6
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 7
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 8

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. OEM is available,small quantities, mixed bulk orders are also welcome
3. Strong production capacity and strict quality control system
4. We will reply you for your inquiry in 24 hours.
5. Well-trained and experienced staffs to answer all your inquires
6. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, Money Gram
7. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST
8. Delivery time is 7 days for sample order and 40 working days for bulk order
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 9
Certifications
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 10
Exhibition
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 11
Logistics
EMC Wireless 7 Day Programmable Thermostat For Room Temperature Control 12
Why Choose Us
1. High Quality Thermostat
2. Environment-Friendly
3. Unique First-Class Design, High Quality, Competitive Price
4. Unique Design
5. Shapes , size and color can be customized by client Customer's design are welcomed
6. Timely delivery
7. Factory Directly
8. More Than 10 Years Industry Experience, Skillful In Workman
9. Integrity of Attitude, Attentive Services
10. Patented structure design
Our Advantages
1. We are a factory which have the most complete line of manufacturing all kinds of thermostats.Because we have our own patent. Others can not copy.
2. All our product are with CE,RoHS.Our management system is: ISO9001:2008
3. We are factory that we have absolute price advantage.
4. Most of our products have got design patent.
5. 100% Testing.
6. Always keep stock for thermostat and offer shorter lead time.
7. If there are any technical problems, the professional engineers will give you answer first time.
8. We have provided OEM and ODM services for many customers all over the world.
