Mini LCD Display Small Digital Thermostat Digital Room Thermostat
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | OEM |
| Certification: | CE/UL |
| Model Number: | STN601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1-500 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard box |
| Delivery Time: | 1-45 days |
| Payment Terms: | L/C, T/T, Western Union, /Paypal |
| Supply Ability: | 100000 pieces/month |
|
Detail Information |
|||
| Product Name: | Room Air - Conditioner Thermostats | Programmability: | Non-programmable |
|---|---|---|---|
| Voltage: | 24V Or Battery | Commodity Weight:: | 230 G |
| Display: | 2.4 SQ Inch | Certificate: | CE/UL |
| Material: | ABS,PC+ABS | Shape: | Square |
| Backlight: | White,Blue,black | Size: | 12x 9.8 X 2.8 CM |
| High Light: | wiring hvac thermostat,digital furnace thermostat |
||
Product Description
Smart Home System Wired Room Thermostat , Room Air - Conditioner Wiring Room Thermostat
Product Description :

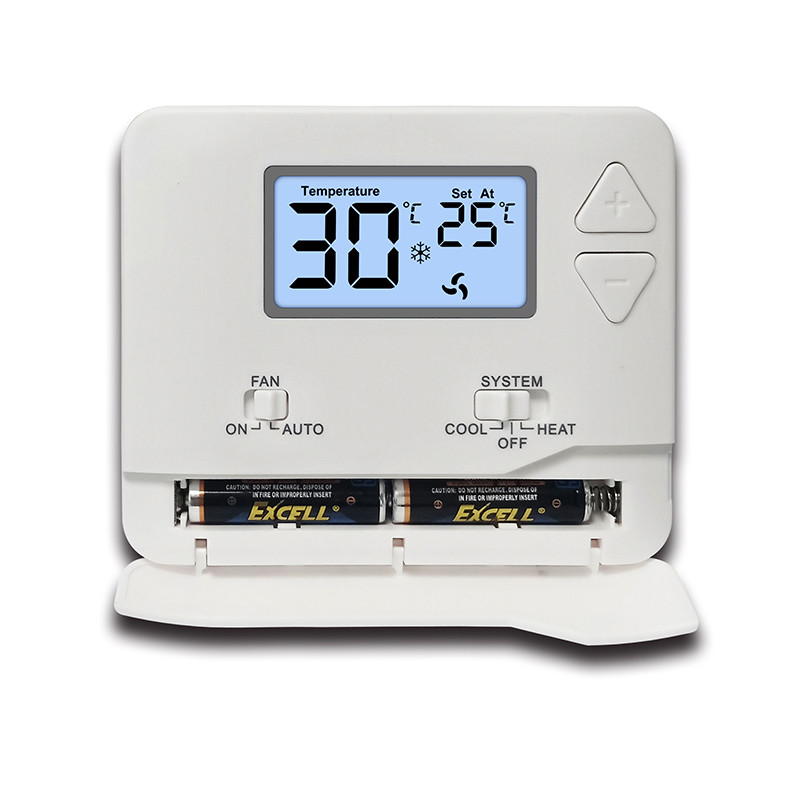

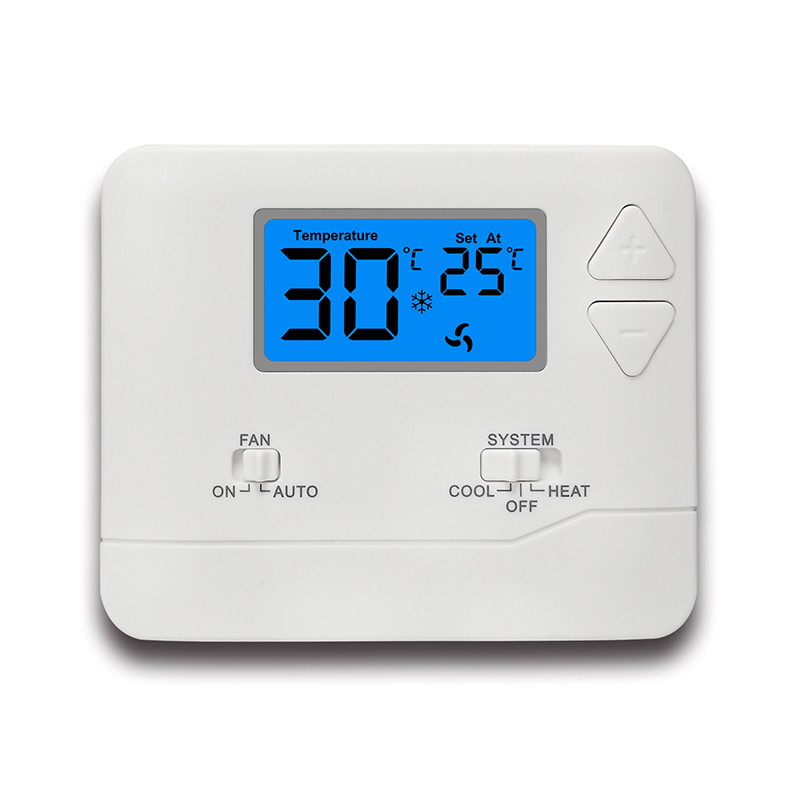

We Specially designed and produced professional grade products for improved comfort in the home and simplified installation. The STN601 non-programmable digital thermostat has many convenient features. Some of its features include a backlit display for easy reading of simple operation sliders to select fans for heating or cooling mode operation.
- Model :STN601
- Single stage--1 heat, 1 cool
- Non-programmable
- 2.4 sq. inch display
- 2*AAA 1.5V Alkaline batteries power
- Display temperature range ......................32℉ to 99℉ (1℃ to 40℃)
- Setpoint Range.........................................44℉ to 90℉ (7℃ to 32℃)
- Load rating.............................................. 1.0Amp per terminal, 1.5Amp maximum all terminals combined
- Display accuracy......................................±1℉(under 68℉)
- Power source.......................................... 24 VAC(18 to 30 VAC), 50/60 Hz for hardwire (common wire)
- Low battery indicator................................Under 2.7 V (without 24V power supply)
- Backlight...................................................Blue, light on for 15 seconds
- Dimensions of thermostat........................12 x 9.8 x 2.8 CM

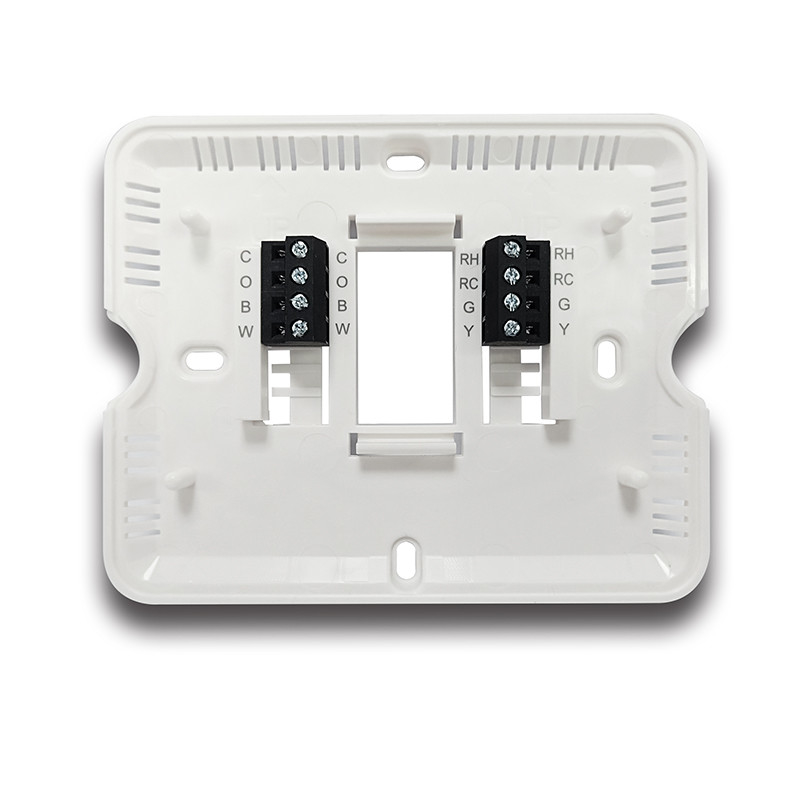

Terminal Designations:
| RH ------------------ 24VAC (system power supply) HEAT=RH TO W |
| RC ------------------ COOL= RC to Y FAN=RC TO G |
| C ------------------ Common24VAC (system power supply) |
| W ------------------ HEAT |
| Y ------------------ COOL |
| G ------------------ FAN |
| B ------------------ REV VALVE HEAT |
| O ------------------ REV VALVE COOL |
Technical Parameters:
| (1) Easy to use battery |

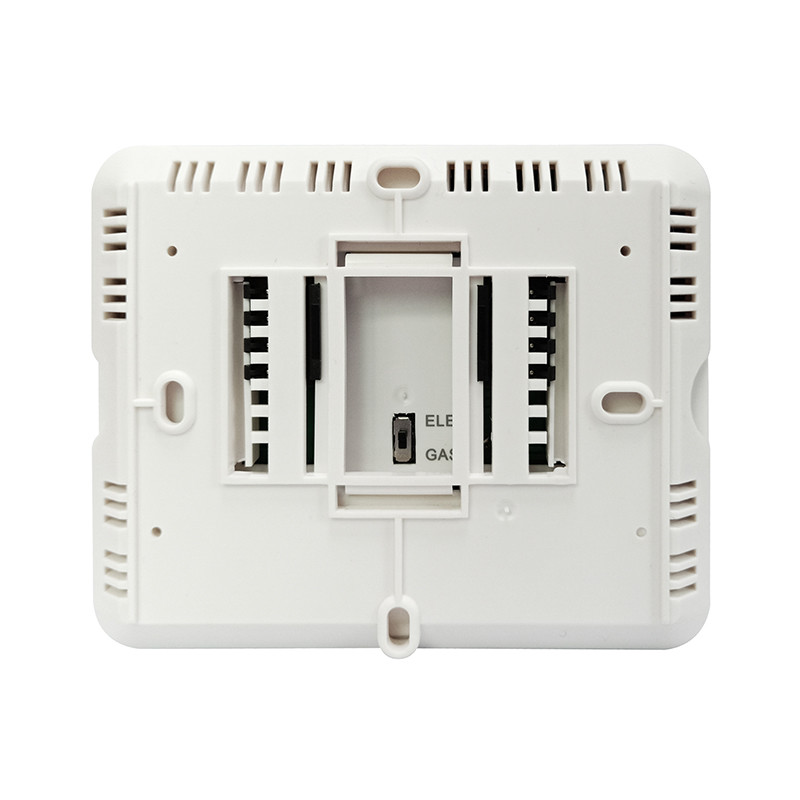

| (2) Electric or gas configurable |
| (3) Independent B & O terminal block |
| (4) Independent heating and cooling swing cycle rate adjustment |
| (5) Indoor temperature correction adjustment |
| (6) 5 minutes compressor delay Protection selectable to turn on or off |
| (7) Convenient wire color terminal block Buildings |
|
(8) Terminal Designations:RH, RC,C,W,Y, G, B, O |
| (9) Universal sub-base |
| (10) can be mounted to wall or junction box |
| (11) Battery Or 24 VAC power supply |
Package Including:
- STN601 thermostat - 1pcs
- User manual - 1pcs
- Screws and anchor - 2pcs
- Box - 1pcs
- Whether to include a battery :Not
- Do you need a battery? :Not
