230V Omron Relay Universal Wired Room Thermostat With Push Buttons

Basic Information
Place of Origin: Gungdong,China
Brand Name: OCSTAT
Certification: CE,RoHS
Model Number: ST23
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1 pc per box
Delivery Time: 7-45 work days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 50,000pcs/month
Detail Information
Type: Floor Heating Systems Material: Anti-flammable ABS+PC
Color: White/Customized Backlight: Blue/White/Yellow
Switching Mode: Heat/Off/Cool Contact Rating: 8(2)A 230VAC Max
Power: 2×AAA Size Battery Relay: Omron Relay
High Light:

wiring hvac thermostat


digital air conditioner thermostat

Product Description

Omron Relay ABS Material Non - Programmable Room Thermostat For Floor Heating



  Product Introduction:

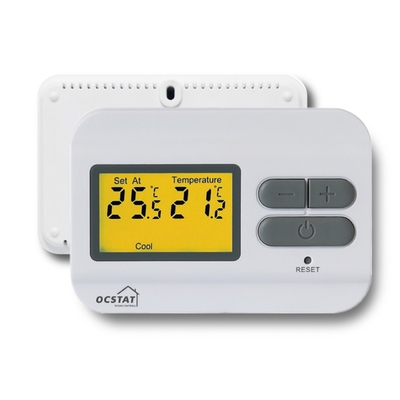

ST23 is a wired room thermostat with push buttons. It detects the indoor temperature through a high-precision sensor inside the thermostat. Compared with the temperature set by user in real time, it can automatically adjust the air intake for heating and cooling or switch the electric valve to maintain the indoor temperature. With this thermostat, you can enjoy the considerate service like a master.
Make your life comfortable and make you happy.





• Large clear LCD display
• Various backlight color optional
• HEAT (Heating) / COOL (Cooling) / OFF (Frost Protection)
• Room Temperature Calibration adjustment (in -3~+3°C)
• Contemporary design
• Simple Operation
• Easy installation

• Detect and display room temp

• Bat-low indicator

• Energy-saving

• Eco-friendly





Switchable Voltage 24 V AC/DC,...250 V AC;50HZ
Switchable Current 6 A (2 A inductive load)
Programmability Non-Programmable
Temp.Meas.Accuracy ±1℃ (at 20℃)
Temperature Range(℃) 0℃-40℃ in 0.1℃
Control Temp. Range(℃) 5℃-35℃ in 0.5℃
Defrosting Temperature +7°C
Power Source DC 2*AAA 1.5V Alkaline batteries
Dimensions 118×80×26mm



  Application Sence:


230V Omron Relay Universal Wired Room Thermostat With Push Buttons 0

230V Omron Relay Universal Wired Room Thermostat With Push Buttons 1



  Detailed Image:


230V Omron Relay Universal Wired Room Thermostat With Push Buttons 2

  Our Advantages:


1. Competitive Price

  a). We have a professional team making material market research to purchase the best raw material at a best price.

  b). All the products are manufactured by our own factory.

2. High and Stable Quality

  a). We have professional technology and skillful workers to ensure the product

good and stable quality.

  b). We follow IS09001 quality management control system.

  c). We have professional quality inspectors to supervise each manufacturing step.

3. Various Styles and Designs

  All of our designs are fashionable, enjoy popular sales in overseas different


4. High Production Capacity

  We’re specialized in the field for more than 10 years. We have advanced production lines with skilled staffs.



  Why Choose Us?


1. We Beat Any Quote

Try us, we will beat any official quote!

2. Professional Evaluated Thermostat

All our products are passed CE and 100% tested to assure the highest standard of all products and giving you a peace of mind owning it.

3. Personal and Friendly Service

We Keep it personal, by building lasting relationships!

4. Quality and After Sales Guarantee

We only provide the highest quality goods available, accompanied by after sales support.

5. Best Buying Experience

We treat our customers as equals, transparently to find the best options for them. Taking cues from their family situation, budget, and what they are looking for.

6. Product Patent

The appearance of our product are patented.



  Trade Info:


Trade Terms: FOB ,CIF, EXW

Payment terms: T/T, L/C, Western Union, Paypal,Escrow, Money Gram

Delivery time: 7-45 work days, according to the material inventory and actual producing process

Shipping: By sea,by air and by express delivery



  Back-up Services:


We will revert to you for any inquiries within 24 hours.

We will provide the latest product information to you at regular time.
