24V White Color Digital Room thermostat Temperature Control for Heating Parts

Basic Information
Place of Origin: Guangdong,China
Brand Name: OCSTAT
Certification: FCC,ISO
Model Number: STN601
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: One piece in a box, 30 boxes a carton
Delivery Time: 7-60 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000 pcs per month
Detail Information
Accuracy: ±0.5°C Theory: Temperature Controller,Temperature Sensor
Color: White/customized Backlight: Blue Or Orange Backlight
Size: 80X80X37mm Feature: Energy Saving,Durable
Origin: China Logo: ODM/OEM Accept
High Light:

non programmable digital thermostat


Non - programmable Wireless thermostat

Product Description

Digital Single Stage Non-Programmable Wired Thermostat With Floor Heating System


Product Information:




  Model STN601 is are used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and air conditioner,motorized fan and valve of heating only,cooling only and heating/cooling central air-condition and HVAC system thereof,and uses NTC to detect the room temperature and compares it with the set-point so as to automatically keep the room temperature stable.





--Single Stage
--1 Heat, 1 Cool
--4 sq. inch display
--Blue backlight
--Glow in the dark light button
--Easy access battery compartment
--Electric or Gas configurable
--Separate B & O terminals
--Separate heating and cooling swing (cycle rate) adjustments
--Room temperature calibration adjustment
--5 minute compressor delay protection (selectable on or off)
--Simple private label badge system

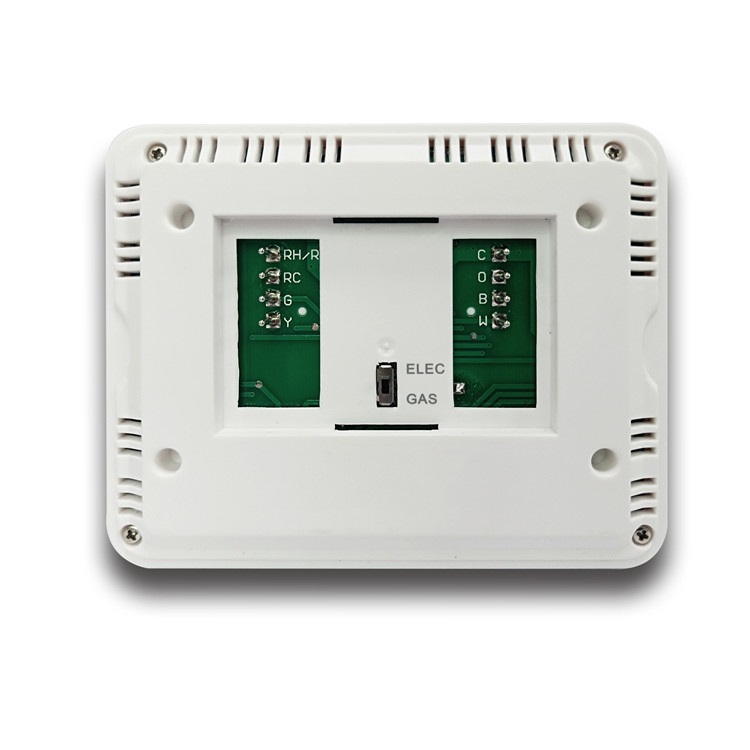

--Easy wire color coded terminal blocks
--Universal sub-base
--Mounts on wall or junction box
--Battery or 24v power




Display Temperature Range 5ºC to 35ºC
Set Point Accuracy ±0.5°C
Material ABS


Electric or Gas
Power Source 24 VAC
Power Supply 2*AAA batteries
Low Battery Indicator Under 2.45V (without 24V power supply)
Backlight Blue
Dimensions W120 x H80 x D25mm




Basic fuctions - Manual operation available
- May connect to main system
- Turn on/off power within 24 hours

- Single Stage :1 Heat, 1 Cool

- 5 minute compressor delay protection (selectable on or off)
Application - Fan coil unit
- Gas boilers
- Under floor heating system
- HVAC system
- Heating Equipment
- Air-conditioning


Packaging & Delivery:


Sample :USD20 per piece

Selling Units:Single item

Package Type:Carton Package or special requirement base on client.

Sample lead time:1-5 work days

Bulk lead time:7-50 days after payment confirmed

Export port:Shenzhen

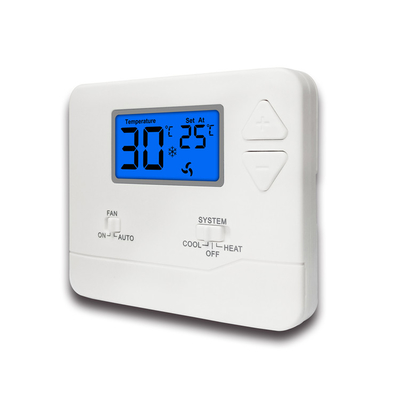

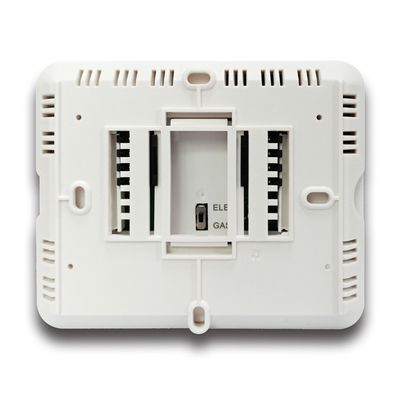

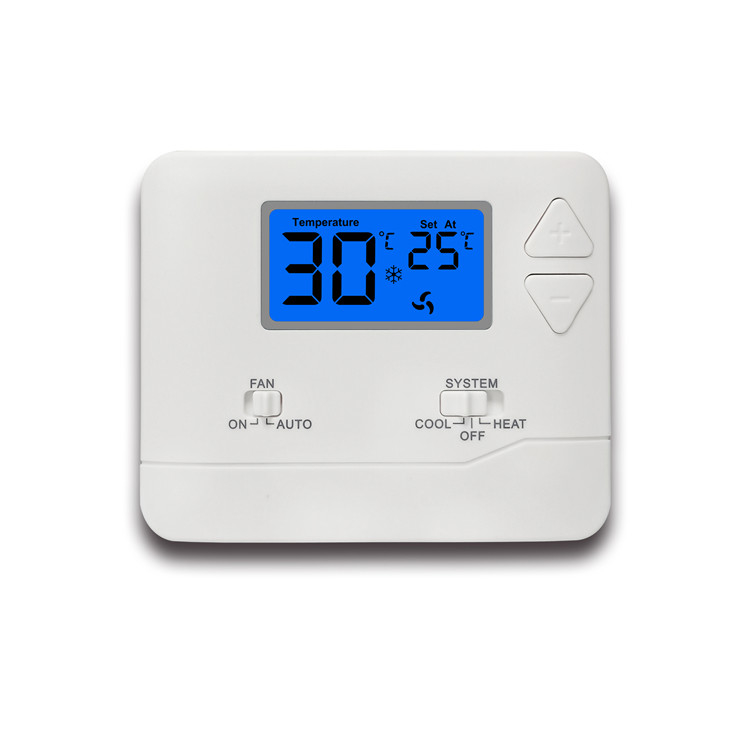

Picture Display:


24V White Color  Digital Room thermostat Temperature Control for Heating Parts 024V White Color  Digital Room thermostat Temperature Control for Heating Parts 124V White Color  Digital Room thermostat Temperature Control for Heating Parts 224V White Color  Digital Room thermostat Temperature Control for Heating Parts 3




Why Us?


1. OEM/ODM factory direct

2. Professional engineers who have the ability to create what customers need.

3.High quality guarantee with competitive price

4.Have a full set of testing equipment for products' functions to ensure reliable quality

5. Fast feedback within 2 hours

6. Shipping on-time.

7. After sale service, if any reason in our side, we can free exchange for you.

8. All of our product have attained CE, ROHS and related certificates approval.




Q1:What's the minimum quantity?

A:500 pcs, but if you have sample order less than 500 pcs, we can also help you,

so strictly speaking we haven't minimum quantity limit, just the more quantities the cheaper.


Q2: Are we factory or trade company?

A: We are professional manufacturer and we have factory.


Q3: Can we custom produce accroding to client's request?

A: Yes, we accept OEM.


Q4: How can we pay?

A: We accept L/C, T/T, Western Union, PayPal.


Q5:How can we deliver our goods?

A: Express delivery (DHL,UPS,FEDEX,TNT), air delivery, sea delivery.

We can suggest the economic solution according to your request.


Welcome to Ask Any Question!

OCSTAT Looks Forward to Serving You !
