LCD Display Programmable 48 Time And 2 Temperature Per Day Weekly Room Thermostat
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||100pcs|
|Packaging Details:||One pcs in one box|
|Delivery Time:||7-45 Work Days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Backlight Color::||Orange / Blue/Green||Programmable::||7 Day Programmable|
|Color::||White/customized||Usage::||Gas Boiler/Water Heating System|
|Application::||Hotel, Household, Indoor, Heat Pump, Room||Theory::||Temperature Control|
|Feature::||Energy Saving||Type::||Wired Room Thermostat|
wiring hvac thermostat,
digital air conditioner thermostat

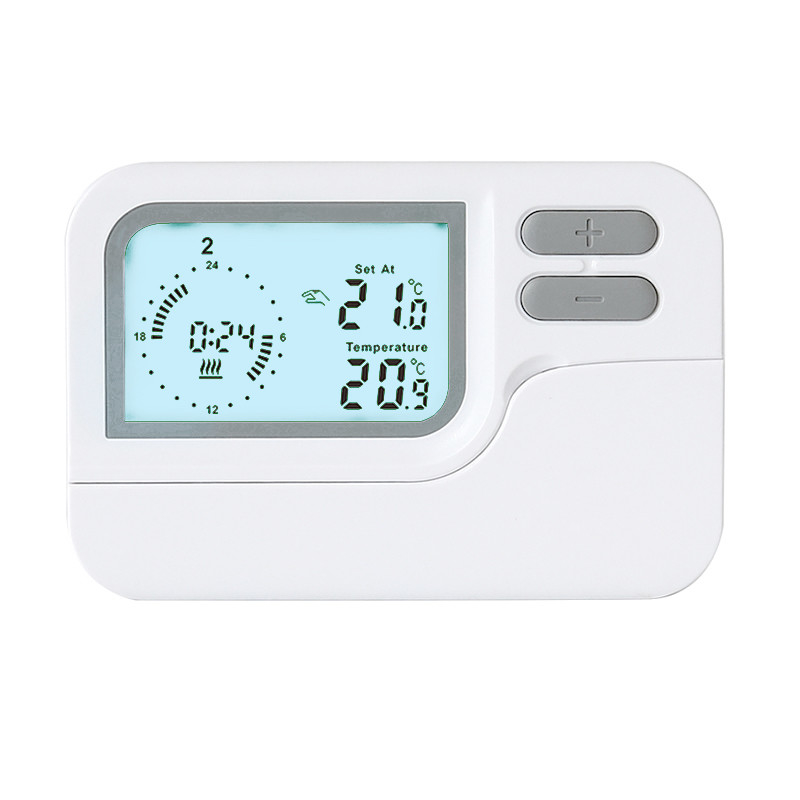

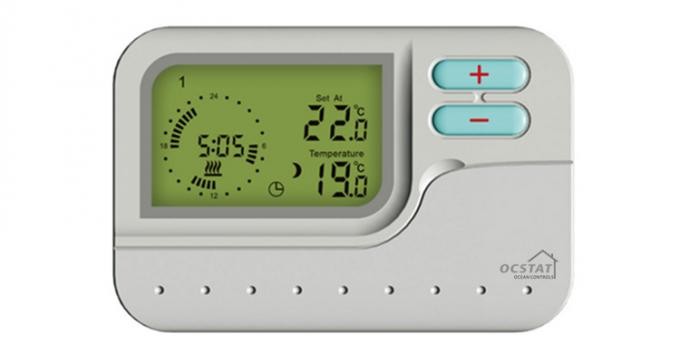

48 Time and 2 Temperature per day Weekly Programmable Room Thermostat
S2303 is 7 days programmable thermostat ,it has luxurious appearance with large LCD display screen,simple and easy to read installation menu on LCD ,provides interactive interface when user sets up programs or operates. For the control of warm-water (floor) heating systems used in Commercial buildings, Residential buildings, Light industrial buildings, etc,.they are designed to heat/cool control the boilers.
|Programmability:||7 Day Programmable|
|Temperature Range (°C):||0°C-40°C in 0.1°C|
|Control Temp.Range (°C):||5°C-35°C in 0.5°C|
|Switchable Voltage:||230 V AC; 50 Hz|
|Switchable Current:||8 A (2 A inductive load)|
|Temp.Meas.Accuracy:||±1°C (at 20°C)|
|Switchable Voltage:||24 V AC / DC,...250 V AC; 50 Hz|
|Switchable Current:||6 A (2 A inductive load)|
|Power Method:||2x1.5 V AA alkaline batteries (LR6 type)|
|Dimensions:||118 x 73 x 34 mm|
|Switch:||HEAT/COOL MODE Switch|
- Large, easy to ready clear LCD display
- Various backlight cplor optional
- Room temperature Calibration adjustment (in -3~ +3°C)
- Switching sensitivity adjustable
- Keypad Lockout
- Factory pre-set programme
- Easy installation
Packing and Delivery detail :
|1.Inner package:Chinese/English/neutral package,special requirements based on clients.|
|2.Outer package:standard exporting package,special requirements based on clients.|
|3.One pcs per box.|
|1.7-50 days,according to the quantity and our stock.|
|2.usually by express,such as TNT,DHL,UPS,EMS,PEDEX,etc.Will take about a week from sending to get to your address.|
|3.Warranty:We are responsible for any defects in quality or workmanship within one year and repair them free of charge within one year.|
What we are manufacturing?
1. Programmable/Non-programmable thermostat
2. Wireless RF/Wired thermostat
3. Touch Screen/Dail/Push Button thermostat
4. Timer/Programmable/Humidity thermostat
5. Pipe/Cylinder Control
6. Ventilation Control
7. Underfloor Heating Control
8. Heating System Control Center
9. Provide OEM/ODM service to worldwide customer, including manufacturing, design,engineering and tooling.
1. OEM Manufacturing welcome: Product, Package...
2. We accept Sample order.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every days, until you get the products.
When you got the goods, test them, and give me a message. If you have any questions about the thermostats,
contact with us, we will offer the solve way for you.
About Us :
Ocean Controls Limited was founded by an industrial engineer with 15 years experience in design and manufacturering of top-end electronic room thermostats.
We provide OEM/ODM services to worldwide customers, including manufacturing, design,engineering and tooling.
Q1.Can I place sample order first?
A:Yes. We will quote you different prices for small, medium and large qty. You can order with different prices for different qty.
Q2.How could I pay them?
A:T/T, PayPal and Western Unionare preferred, so just tell us which is easier to you. Then we will send you our bank details. Or as your requirements.
Q3.How to place the order?
A:Please send us your purchase order by email, Trade Manager or Skypeor you can ask us to send you a Performa Invoice for your order.
Q4.How long can I get my order?
A:For samples, we will finish production within 3-4 working days. For bulk orders, usually 25 working daysand also depend on your design.
