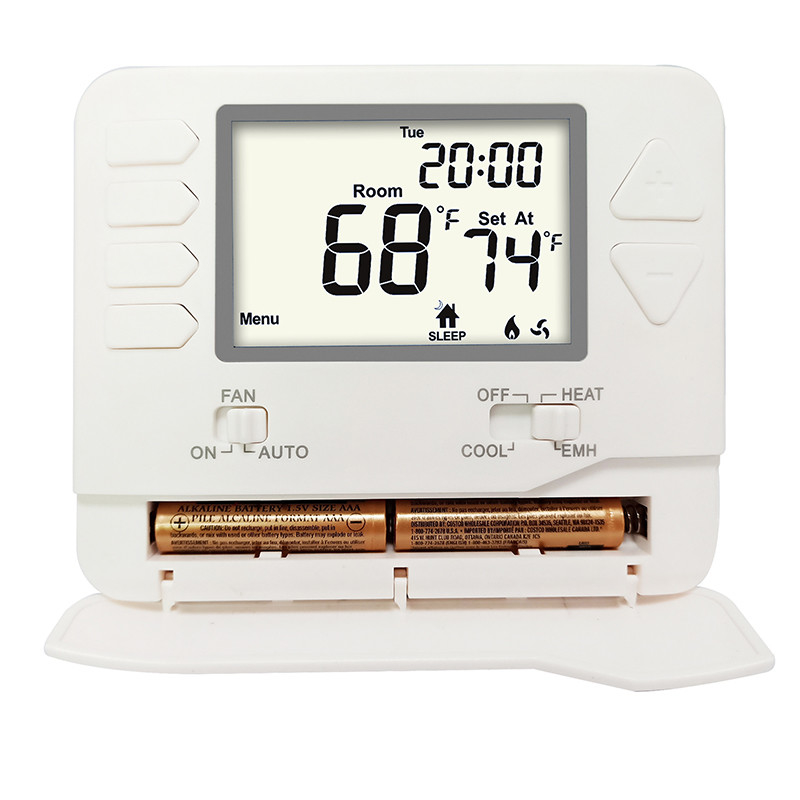

24V Digital Room Heat Pump Thermostat With Large Digital Display Dual Powered

Basic Information
Place of Origin: Guangdong
Brand Name: OEM/ODM
Certification: CE/UL
Model Number: STN725
Minimum Order Quantity: 1-500 PCS
Price: Negotiable
Packaging Details: Standard box
Delivery Time: 1-45 days
Payment Terms: L/C, T/T, Western Union, /Paypal
Supply Ability: 100000 pieces/month
Detail Information
Name: Heat Pump Thermostat For Air Conditioner Programmability: 5(Mo~Fr)/1(Sa)/1(Su) Programmable
Type:: 2 Heat / 1 Cool Usage: Household & Industry,Indoor,HAVC System
Display Style:: Digital Display: 4.5 SQ Inch
Commodity Weight:: 191 G Average Battery Life:: 20000 Hours
Size: 12x 9.8 X 2.8 CM Certificate: CE/UL
High Light:

heat pump programmable thermostat

,

digital fan coil thermostat


Product Description

24V Digital Room Heat Pump Thermostat With Large Digital Display Dual Powered





Product Description :
  (1)     Display temperature range ....................... 32℉ to 99℉ (1℃ to 40℃)
  (2)     Setpoint Range ......................................... 44℉ to 90℉ (7℃ to 32℃)
  (3)     Stages ......................................................  2 Heat / 1 Cool
  (4)     Programmability ........................................ 5(Mo~Fr)/1(Sa)/1(Su) Programmable
  (5)     Program ...................................................4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP”

  (6)     Backlight ................................................... Blue, light on for 15 seconds

  (7)     Display accuracy ...................................... ±1℉(under 68℉)

  (8)     Dimensions of thermostat ........................ 119.5 x 98 x 27.5MM

  (9)     Fan Switch ............................................... AUTO/ON
 (10)    System Switch ......................................... HEAT/OFF/COOL
 (11)    Differential ................................................ 0.2 to 2.0℉
 (12)    Low battery indicator ................................ Under 2.7V (without 24V power supply)
 (13)    Load rating ...................................1.0Amp per terminal, 1.5Amp maximum all terminals combined

 (14)    Power source ................................24 VAC(18 to 30 VAC), 50/60 Hz for hardwire (common wire)

                                                                   2*AAA 1.5V Alkaline batteries power


Technical Parameters:
 (1)     Easy menu driven programming
 (2)     Intuitive wake, leave, return, sleep programming icons
 (3)     4.5 sq. inch large LCD display with white/blue backlight
 (4)     Easy access battery compartment
 (5)     Electric or gas configurable
 (6)     Separate B & O terminals
 (7)     Separate heating and cooling swing (cycle rate)
 (8)     Air filter change indicator (selectable on or off)
 (9)     5 minute compressor delay protection (selectable on or off)
(10)    Low battery indicator
(11)    Terminal Designations:RH,C,W2,Y, E,G, B, O
(12)    Room temperature calibration adjustment
(13)    Display options: Fahrenheit or Celsius temperature display, 12 or 24 hour clock
(14)    Easy wire coded terminal blocks
(15)    Universal sub-base
(16)    Mounts on wall or junction box
(17)    Battery Or 24 VAC power



Terminal Designations:



  RH        ------------------       24VAC (system power supply)
   C          ------------------       Common24VAC (system power supply)
 W 2        ------------------       2 CD HEAT
   Y          ------------------       1 ST COOL/HEAT
            ------------------       1 ST Emergency HEAT
   G          ------------------       FAN
   B          ------------------       REV VALVE HEAT
   O          ------------------       REV VALVE COOL



Set Program Schedule:



To customize your program schedule, follow these steps:

1. Select HEAT or COOL from the system switch.

Note: You have to program heat and cool each separately.

2. Press MENU

3. Press SET SCHED.

Note: Monday-Friday is displayed and the WAKE icon is shown. You are now programming the wake time period for the weekday setting.

4. Time is flashing. Use the + or - key to make your time selection for the weekday WAKE time period (step: 10 minutes).

5. Press NEXT STEP

6. The setpoint temperature is flashing. Use the + or - key to make your setpoint selection for the weekday wake period (step: 1℉).

7. Press NEXT STEP

8. Repeat steps 4 through 7 for weekday LEAVE, RETURN and SLEEP time period.

9. Repeat steps 4 through 7 for Saturday WAKE, LEAVE,RETURN and SLEEP time period.

10. Repeat steps 4 through 7 for Sunday WAKE, LEAVE,RETURN and SLEEP time period.

11. Press DONE when completed or quit after 15 seconds automatically.



Manual Setting:



Temporary Temperature Manual Setting

1. Use + or - to select the temperature.

2. Confirm automatically after 15 seconds. Running out the current PROG period and then running the manual setting program, press RUN SCHED to exit.



Run Permanent Hold Temperature

1. After setting the above manual setting, then press HOLD and display HOLD.

2. Confirm automatically after 15 seconds.

The thermostat will now permanently stay at this setpoint and can be adjusted using the + or - keys.

Press RUN SCHED to exit either temporary or permanent hold.



Technician Setup Menu:



1. Press MENU button

2. Press and hold TECH SET button for 3 seconds.

3. Configure the installer options as desired using the table below.

Use the + OR - keys to change settings and the NEXT STEP or PREV STEP key to move from one option to another.

FILER Setting: Display FlSE, flashing OFF (the default OFF), select from OFF, 50~2000 hours.

Temperature Calibration: Display CAL and flashing 0℉ (the default value 0), select from -4~4℉.

Compressor Shortest Running Time Setting: Display AN ON and flashing OFF (default setting), select from OFF, 3, 4 or 5 minutes.

Compressor Delay Time Setting: Display CO OF and flashing ON (default setting), select from ON or OFF.

Cooling Swing Setting: Display df CO and flashing 0.5, choose from 0.2~2.0 (factory default setting: 0.5℉).

Heating Swing Setting: Display df HE and flashing 0.4, choose from 0.2~2.0 (factory default setting: 0.4℉).

℉/℃ Selection: Setting F(Fahrenheit) or C(Celsius).

24H/12H Selection: Setting the 24 hours or 12 hours time format.

 ELEC/GAS Selection: Select the ELEC or GAS.
