| Place of Origin: | Guangdong,Dongguan |
|---|---|
| Brand Name: | OCSTAT |
| Certification: | UL |
| Model Number: | S701 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | white or color box |
| Delivery Time: | 7-45 Work Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80000PCS Per Month |
| Name：: | Electronic Thermostat | Model No.:: | S701 |
|---|---|---|---|
| Temperature Range (°F):: | 44°F - 90°F | Programmability: | No |
| Power Method:: | 2 X AAA 1.5V Lithium Batteries Or 24V AC | Mode Switch: | HEAT/COOL |
| Dimensions Of Thermostat: | W120 X H115 X D24mm | LCD Display: | White/Blue/Customied |
| High Light: | wiring hvac thermostat,digital furnace thermostat |
||
| >Model:S701 |
| >Name:Electronic thermostats |
| >Programmability: Non-Programmable |
| >Temperature Range (°F): 44°F - 90°F |
| >Control Temp.Range (°F): 40°F - 90°F |
| >Operating Humidity: 90% non-condensing |
| >4 sq. inch display |
| >Power Method: 2 x AAA 1.5V Lithium batteries Or 24V AC |
| >1 HEAT/2 COOL Mode Switch |
| >Contact Rating:2A 24VAC Max |
| >Dimensions: 120 x 115 x 24 mm |
| >Wall mount or junction box |
| >Mount: Horizontal |
| >Separate B&O terminals |

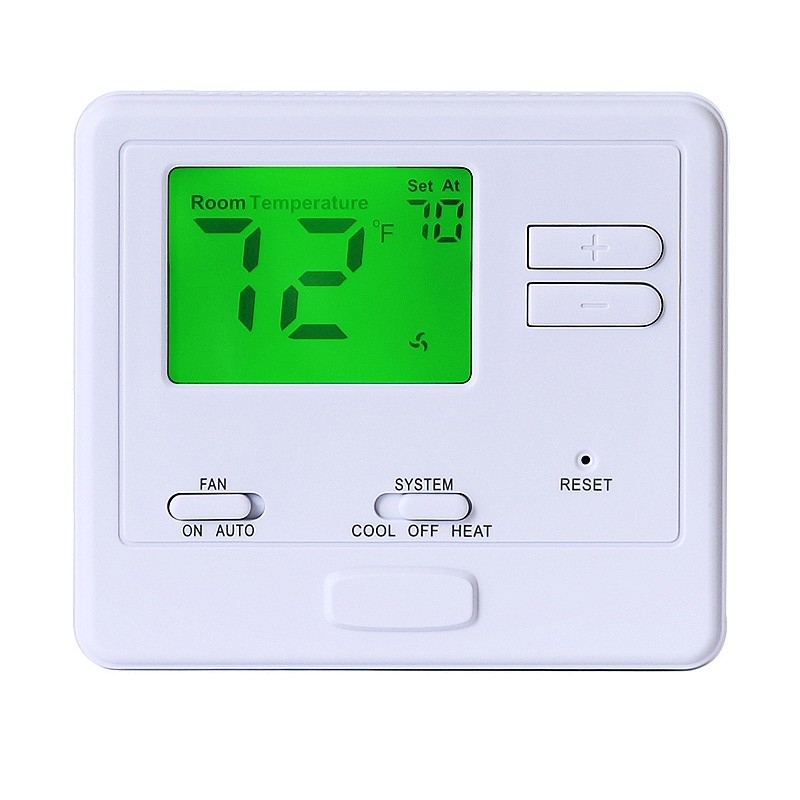

Details Photo:
Notice:If you want to know more details,please download our instruction or contact Wendy.Thanks.
System Switch:
| Selects the operation mode of your HVAC system. |
|
1.HEAT: Turns on the heat mode, driver terminal: B,W. Press the + or - buttons to select the desired room temperature |
|
2.OFF: Turns both heating and cooling off |
|
3.COOL: Turns on the air conditioning mode, driver terminal: O,Y. Press the + or - buttons to select the desired room temperature |
FAQ:
| Q1. Can I get any discount? A1:The price is negotiable, we can offer you discount according to your order quantity. If you are buying in bulk for an occasion, We offer you wholesale price. We also have promotions several times a year. |
| Q2. How much are the shipping costs? A2:Shipping cost is charged by the package's weight and related to the shipping methods you choose and your destination. |
| Q3. Do you offer samples? A3:You can buy 1pcs in first order to check the quality. then we send some other designs small cutting as samples with your order. |
| Q4. How many styles for my select? A4:Many types for your choose or as per customized. |
|
Q5.Packaging Details? A5.Chinese/English/neutral package,special requirements based on clients. |
|
Q6.Delivery Detail: A6.7-50 days,according to the quantity and our stock. |
