| Place of Origin: | Guangdong，Dongguan |
|---|---|
| Brand Name: | OCSTAT |
| Certification: | CE |
| Model Number: | C3 |
| Minimum Order Quantity: | 100pcs |
| Price: | USD 1-12/pcs |
| Packaging Details: | 48ps/CTN 42.2 x 25.5 x 41.5 CM/CTN |
| Delivery Time: | 7-45Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pcs per month |
| Product Name：: | Room Heating Boiler Thermostat | Switchable Voltage:: | 250 V AC Max; 50 Hz |
|---|---|---|---|
| Switchable Current:: | 8 A (2 A Inductive Load) | Programmability:: | Non-Programmable |
| Temperature Range (℃):: | 5℃-35℃ In 0.1℃ | Control Temp.Range (℃):: | 10℃-30℃ In 0.5℃ |
| Temp.Meas.Accuracy:: | ±0.5°C | Sensitivity:: | ±0.2°C / ±0.3°C |
| Defrosting Temperature:: | +7°C | Power Method:: | 2x1.5 V AA Alkaline Batteries (LR6 Type) |
| Power Consumption:: | 1.5 MW | Dimensions:: | 110 X 75 X 45 Mm |
| Temp. Sensor Type:: | NTC 10 KΩ ±1% At 25°C | ||
| High Light: | digital air conditioner thermostat,digital furnace thermostat |
||
Product Information:

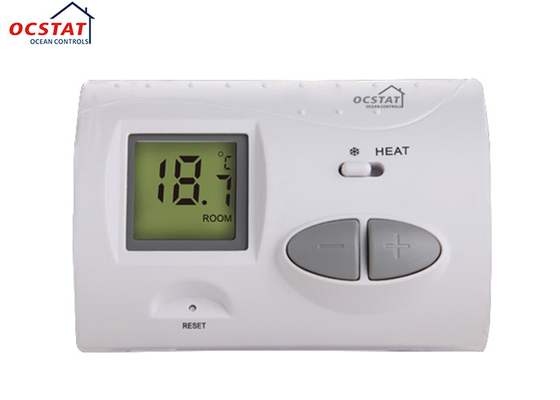

C3 is digital non - programmable thermostat ,it has luxurious appearance with large LCD display screen,simple
and easy to read installation menu on LCD ,provides interactive interface when user sets up programs or operates,
they are designed to on/off control the boilers.
Characteristics:
| Model No.: | C3 |
| Switchable Voltage: | 250 V AC Max; 50 Hz |
| Switchable Current: | 8 A (2 A inductive load) |
| Programmability: | Non-Programmable |
| Temperature Range (℃): | 5℃-35℃ in 0.1℃ |
| Control Temp.Range (℃): | 10℃-30℃ in 0.5℃ |
| Temp.Meas.Accuracy: | ±0.5°C |
| Sensitivity: | ±0.2°C / ±0.3°C |
| Defrosting Temperature: | +7°C |
| Power Method: | 2x1.5 V AA alkaline batteries (LR6 type) |
| Power Consumption: | 1.5 mW |
| Dimensions: | 110 x 75 x 45 mm |
| Temp. Sensor Type: | NTC 10 kΩ ±1% at 25°C |
Our Advantages:
1, More than 6 years experience of designing and making room thermostat
2, OEM/ODM service available
3, Quality up to CE, R&TTE, FCC, UL and CSA
4, Competitive price
More information please do not hesitate to contact me:
Miss Wendy Lynn
Cell phone: 0086 15914324004
What's app: 0086 15914324004
Email:bani@ocstat.com
FAQ:
Q1.Can I place sample order first?
A:Yes. We will quote you different prices for small, medium and large qty. You can order with different prices for different qty.
Q2.How could I pay them?
A:T/T, PayPal and Western Unionare preferred, so just tell us which is easier to you. Then we will send you our bank details.
Or as your requirements.
Q3.How to place the order?
A:Please send us your purchase order by email, Trade Manager or Skypeor you can ask us to send you a Performa Invoice for your order.
Q4.How long can I get my order?
A:For samples, we will finish production within 3-4 working days. For bulk orders, usually 25 working daysand also depend on your design.
Q5.Can you customize according to our designs and put our logo on the products?
A:Yes, we support both standard and customized productsand can put your logo on the products. Our experienced R&D team will support technical questions.

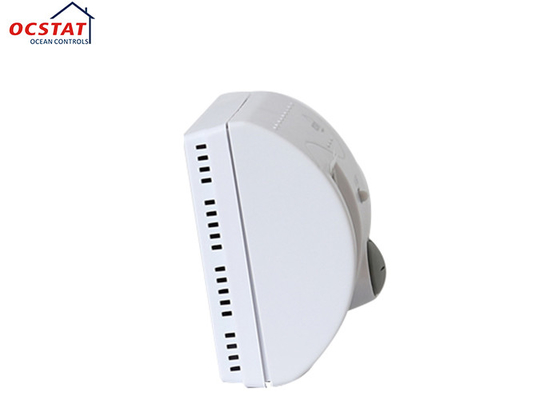

Details Photos:
