| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE/UL |
| Model Number: | STN805 |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 30-60 days |
| Payment Terms: | L/C, T/T, Western Union, /Paypal |
| Supply Ability: | 100000 pieces/month |
| Product Name: | Air Conditioner Wall Thermostat | Programmability: | 5/1/1 Programmable |
|---|---|---|---|
| System Switch: | HEAT/OFF/COOL | Fan Switch: | AUTO/ON |
| Application: | Hotel,Household,Indoor,Room | Voltage: | 24V Or Battery Power Supply |
| Weight: | 236 G | Temperature Range: | 44℉ To 90℉ |
| Backlight: | Blue,white Or Green | Certificate: | CE/UL |
| Material: | PC+ABS | ||
| High Light: | Programming Digital Home Thermostat,PC ABS Digital Home Thermostat,Big Screen 7 Day Programmable Thermostat |
||

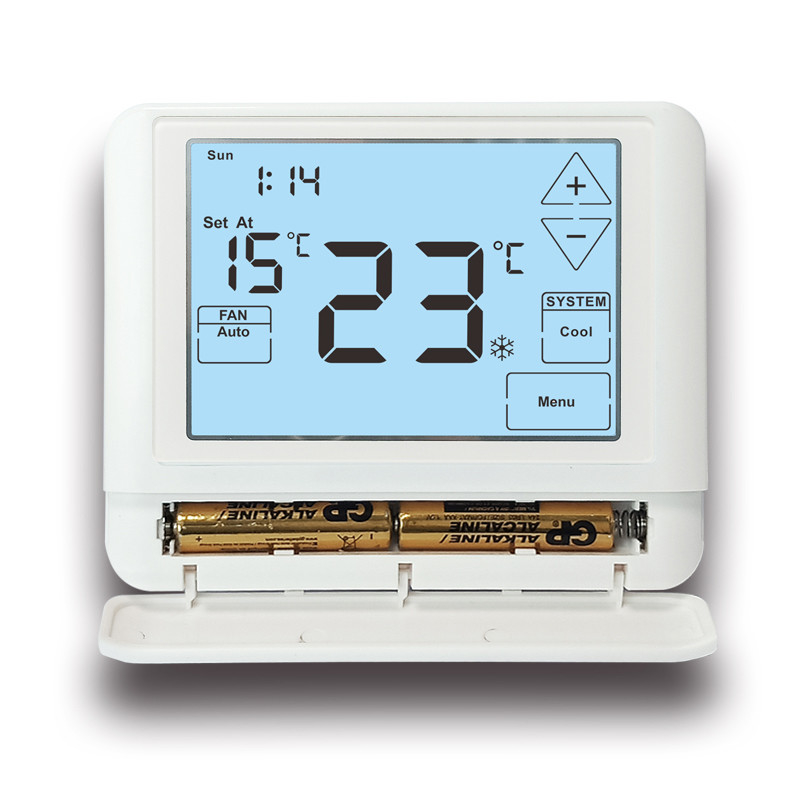

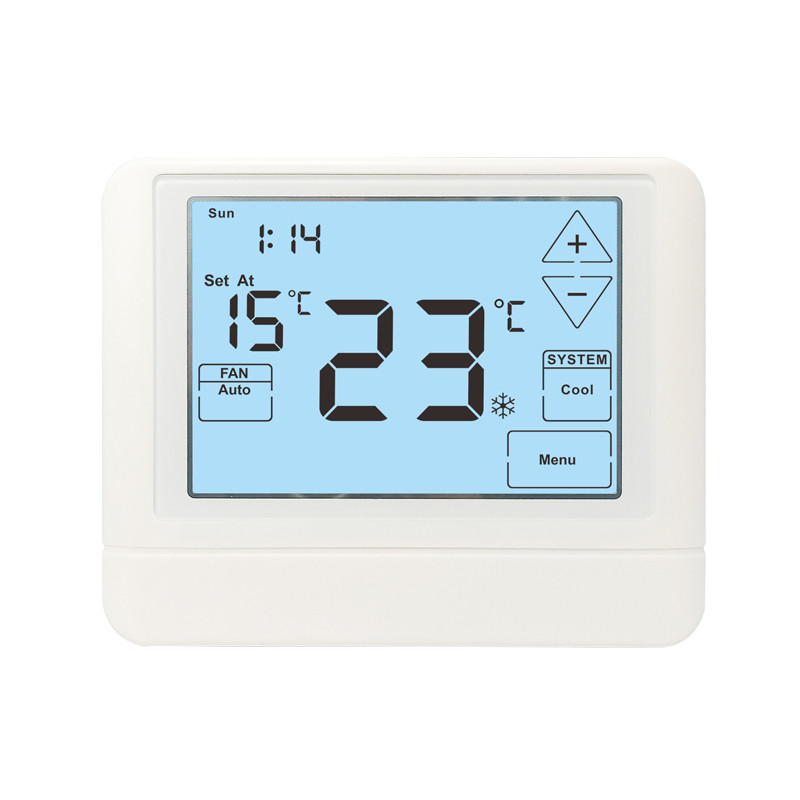

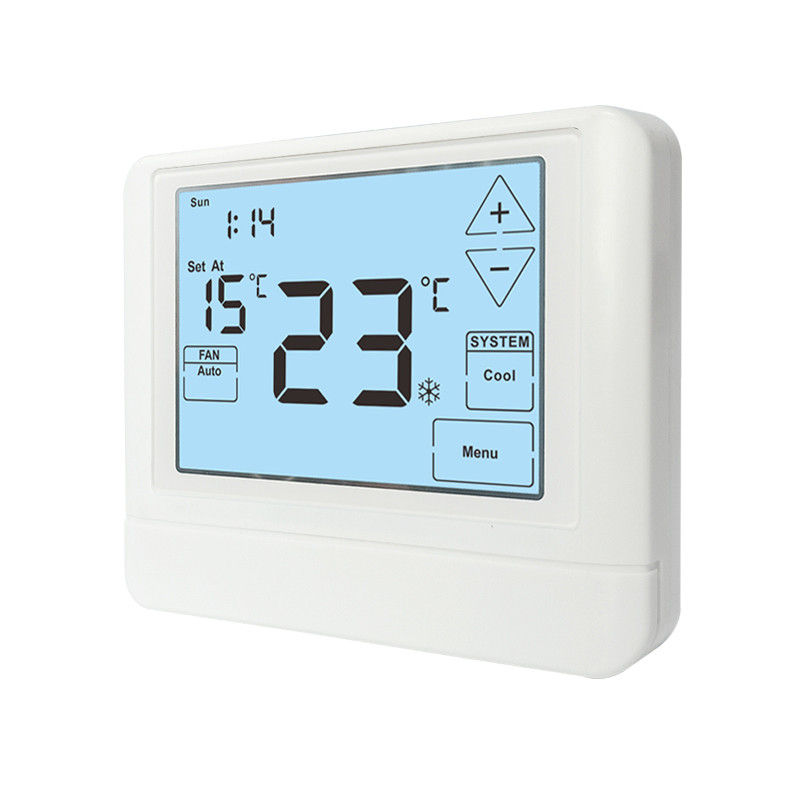

Digital Home 7 Day Programmable Thermostat With Large LCD Screen For Battery Operated
Product Description :
STN805 is Touch screen electronic thermostat, A simple, easy to use 1-week(5-1-1 Day) programmable thermostat. You set
it up to adjust the temperature when you are away or asleep-times when you don't necessarily need to heat or cool
your home to optimum comfort-and your HVAC equipment runs less. Plus, your heating or cooling comes back to
the comfort level you desire before you come home or wake up, and have 1-year warranty.
Features:
| Display temperature range ...................................32℉ to 99℉ (1℃ to 40℃) |
| Setpoint Range.....................................................44℉ to 90℉ (7℃ to 32℃) |
| Stages...................................................................1 Heat / 1 Cool |
| Programmability.....................................................5(Mo~Fr)/1(Sa)/1(Su) Programmable |
| Program................................................................4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP” |
| Load rating............................................................1.0Amp per terminal, 1.5Amp maximum all terminals combined |
| Display accuracy...................................................±1℉(under 68℉) |
|
Power source........................................................24 VAC(18 to 30 VAC), 50/60 Hz for hardwire (common wire) 2*AAA 1.5V Alkaline batteries power |
| Fan Switch............................................................AUTO/ON |
| System Switch......................................................HEAT/OFF/COOL |
| Differential.............................................................0.2 to 2.0℉ |
| Low battery indicator.............................................Under 2.7V (without 24V power supply) |
| Backlight...............................................................Blue/Orange/White light on for 15 seconds |
Package Including:
STN805 thermostat - 1pcs
Color box - 1pcs
Screws and anchor - 2pcs
User manual - 1pcs
Whether to include a battery - Not
Do you need a battery? - Not
| Stages: | 1 Heat / 1 Cool |
| Switchable Voltage: |
24 VAC(18 to 30 VAC), 50/60 Hz 2*AAA 1.5V Alkaline batteries power |
| Low battery indicator: | Under 2.7 V |
| Programmability: | 5/1/1 Programmable |
| Program: | 4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP” |
| Temperature Range (°C): | 32℉ to 99℉ (1℃ to 40℃) |
| Control Temp.Range (°C): | 44℉ to 90℉ (7℃ to 32℃) |
| Display accuracy: | ±1℉(under 68℉) |
| Load rating: |
1.0Amp per terminal, 1.5Amp maximum all terminals combined |
| Backlight: | Customied |
| Fan Switch: | AUTO/ON |
| System Switch: | HEAT/OFF/COOL |
| Differential: | 0.2 to 2.0℉ |
| Dimensions of thermostat: | 120 x 98 x 28 MM |
About OEM
Except our own brand “OCSTAT”, we can also supply the OEM service to our customers.To meet your need,we can print your Logo or design on thermostat.For big quantity order, OEM service ,User Manual, Inner Packing Box are all Free.
About Samples
1. For our own brand "OCSTAT".We’ll deliver the goods in 2 days after we confirm the payment, and normally 4 to 7 days will arrive at your place.
2. For the samples of your own Logo or design/ OEM
For big quantity OEM order, we will provide you samples according to your requirements. After you confirm samples, we will start mass production.
About MOQ
1. For Thermostats, our MOQ is 500pcs.
2. For Actuators, our MOQ is 100pcs. Because 100pcs actuators are packed into one carton.If you would like a trail order, and quantity is less than MOQ, you can contact with us, we will arrange service.
About Lead Time
For normal order:
If quantity is less than 1000pcs, the lead time is about 30 working days after your payment;If quantity is more than 1000pcs, the lead time is about 30-50 working days after your payment.
For OEM order:
The lead time is about 15-45 working days after your payment.
About Gurantee
1. We offer the warranty of 24 months since the sales day.
2. Durrant the warraty, if belong to the quality issue, we will fix or replace them for you by free after test them. If it is not the problem of quality or beyond the warranty time, we will charge for the after-sale service.
