Home Products7 Day Programmable Thermostat

Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply

Certification
China Ocean Controls Limited certification
China Ocean Controls Limited certification
Stable Quality Excellent Service With Competitive Price Provided

—— Ion

I'm Online Chat Now

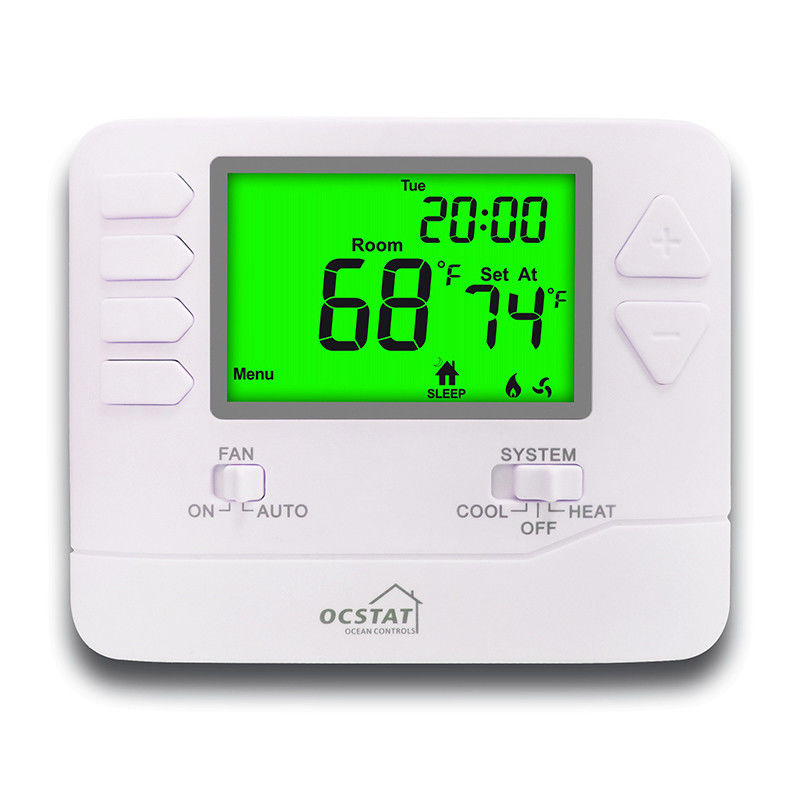

Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply

Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply
Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply

Large Image :  Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply

Product Details:

Place of Origin: CHINA
Brand Name: ODM
Certification: CE/UL
Model Number: STN715

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 1-30 days
Payment Terms: L/C, T/T, Western Union, /Paypal
Supply Ability: 100000 pieces/month
Detailed Product Description
Product Name: Single Stage Room Thermostat Application: HVAC,Heat/cool
Feature: 7 Days Programmable Save Energy Fan Switch:: AUTO/ON
Backlight: Blue,white Or Green Power:: 2*AAA 1.5V Alkaline Batteries
Weight:: 236 G Display Accuracy:: ±1℉(under 68℉)
Certificate: CE/UL Output: Switch Relay
Material: PC+ABS
High Light:

5-2 day programmable thermostat

,

seven day programmable thermostat

Air Conditioning Room 7 Day Programmable Thermostat For Low Voltage 24V Power Supply



Product Description :



The STN715 low-pressure constant temperature is simple and easy to use. 1-week (5–1–1 day) programmable thermostat. You only need to adjust whether you are going out or asleep-times when setting the temperature, you don't need to heat or cool your home to get The best comfort-and HVAC equipment runs less.



Product Information:



--- Model :STN715 --- Convenient wire color terminal block Buildings
--- Multi stage --2 heat, 2 cool --- Room temperature calibration adjustment
--- 5(Mo~Fr)/1(Sa)/1(Su) Programmable --- Universal sub-base
--- 4.5 sq. inch display --- Easy wire coded terminal blocks
--- Size:119.5 x 98 x 27.5MM --- Terminal Designations:RH, RC,C,W,W2,Y, Y2,G, B, O
--- Easy menu driven programming --- can be mounted to wall or junction box

--- Intuitive wake, leave, return, sleep

     programming icons.4 times / 4 temp

--- Load rating: 1 Amp per terminal,

    1.5 amp maximum all terminals combined

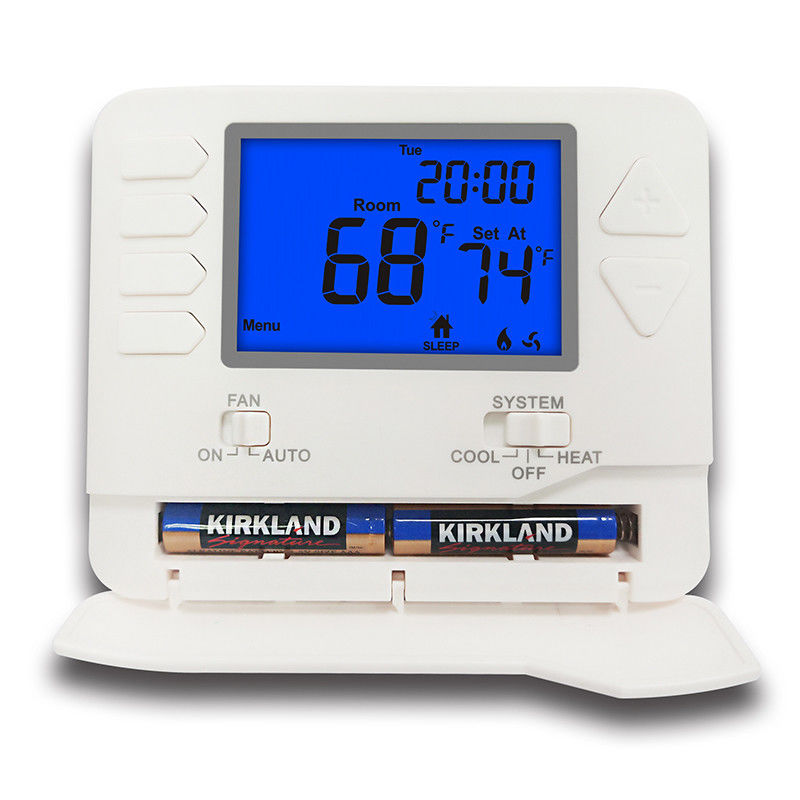

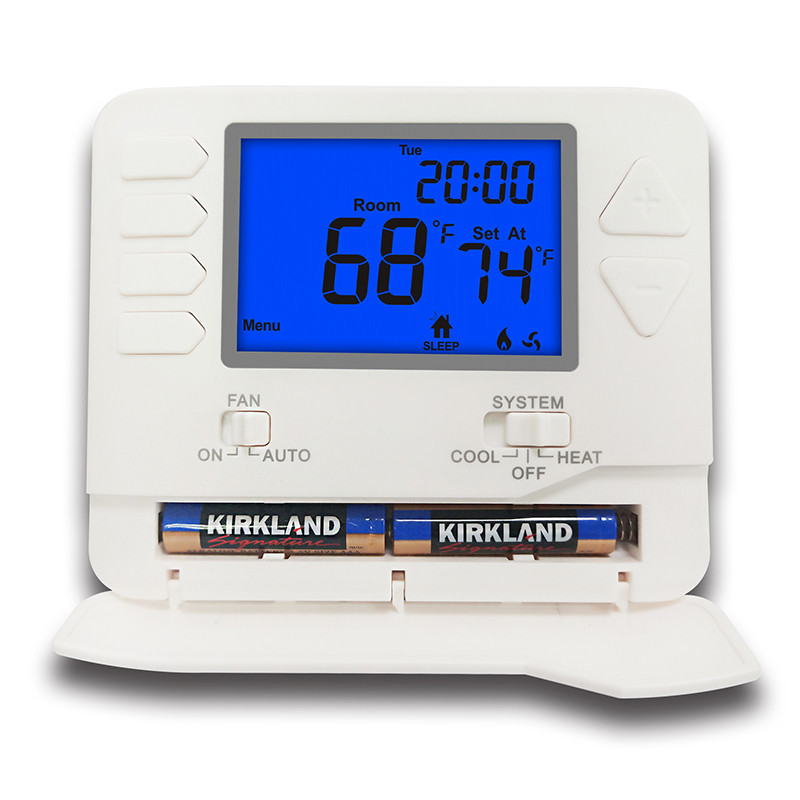

--- Easy access battery compartment --- Battery Or 24 VAC power supply
--- Electric or gas configurable --- Indoor temperature correction adjustment
--- Independent B & O terminal block --- Low battery indicator
--- Separate heating and cooling swing (cycle rate) --- 5 minute compressor delay protection (selectable on or off)
--- Air filter change indicator (selectable on or off)

--- Display options: Fahrenheit or Celsius temperature display,

    12 or 24 hour clock

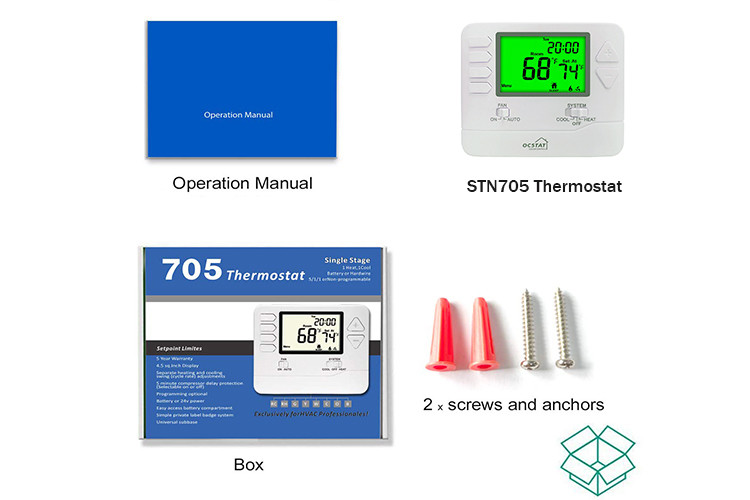

Package Including:

--- STN715 thermostat - 1pcs

--- Color box - 1pcs

--- Screws and anchor - 2pcs

--- User manual - 1pcs

--- Whether to include a battery - Not

--- Do you need a battery? - Not



Features:



Display temperature range .......................................32℉ to 99℉ (1℃ to 40℃)
Setpoint Range..........................................................44℉ to 90℉ (7℃ to 32℃)
Stages........................................................................2 Heat / 2 Cool

Programmability.........................................................5(Mo~Fr)/1(Sa)/1(Su) Programmable

                                                                                   Or Sa~Su use on the whole week

Program.................................................................... 4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP”
Load rating................................................................1.0Amp per terminal, 1.5Amp maximum all terminals combined
Display accuracy........................................................±1℉(under 68℉)

Power source.............................................................24 VAC(18 to 30 VAC), 50/60 Hz for hardwire (common wire)

                                                                                   2*AAA 1.5V Alkaline batteries power

Fan Switch..................................................................AUTO/ON
System Switch............................................................HEAT/OFF/COOL
Differential...................................................................0.2 to 2.0℉
Low battery indicator...................................................Under 2.7V (without 24V power supply)
Backlight......................................................................Blue/Orange/White light on for 15 seconds
Dimensions of thermostat...........................................119.5 x 98 x 27.5MM



Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply 0
