Heating / Cooling Non-Programmable, with backlightS2403 Wired

Basic Information
Place of Origin: GuangDong
Brand Name: OCSTAT
Certification: CE,ROHS
Model Number: S2403
Minimum Order Quantity: 1pcs
Price: US$11-11.5/PCS
Packaging Details: Standard exporting package
Delivery Time: 7-50days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs/month
Detail Information
Type: Floor Heating Parts, Floor Heating Systems, Floor Heating Thermostats, Bat-low Indicator, HVAC Systems Color: White
Floor Heating Part Type: Floor Heating Thermostats, Floor Heating Cables, Floor Heating Panels, Under Flooring Heating System Application: Underfloor Heating System, Water Heating/Electric Heating System/Boiler, Indoor Underfloor Heating, Electric Underfloor Heating System.Radiant Heating Room Thermostat, Water Heating System
Certifications: CE, ROHS, EAC, CE & ROHS, CE/ISO9001

Product Description

S2403 Instruction

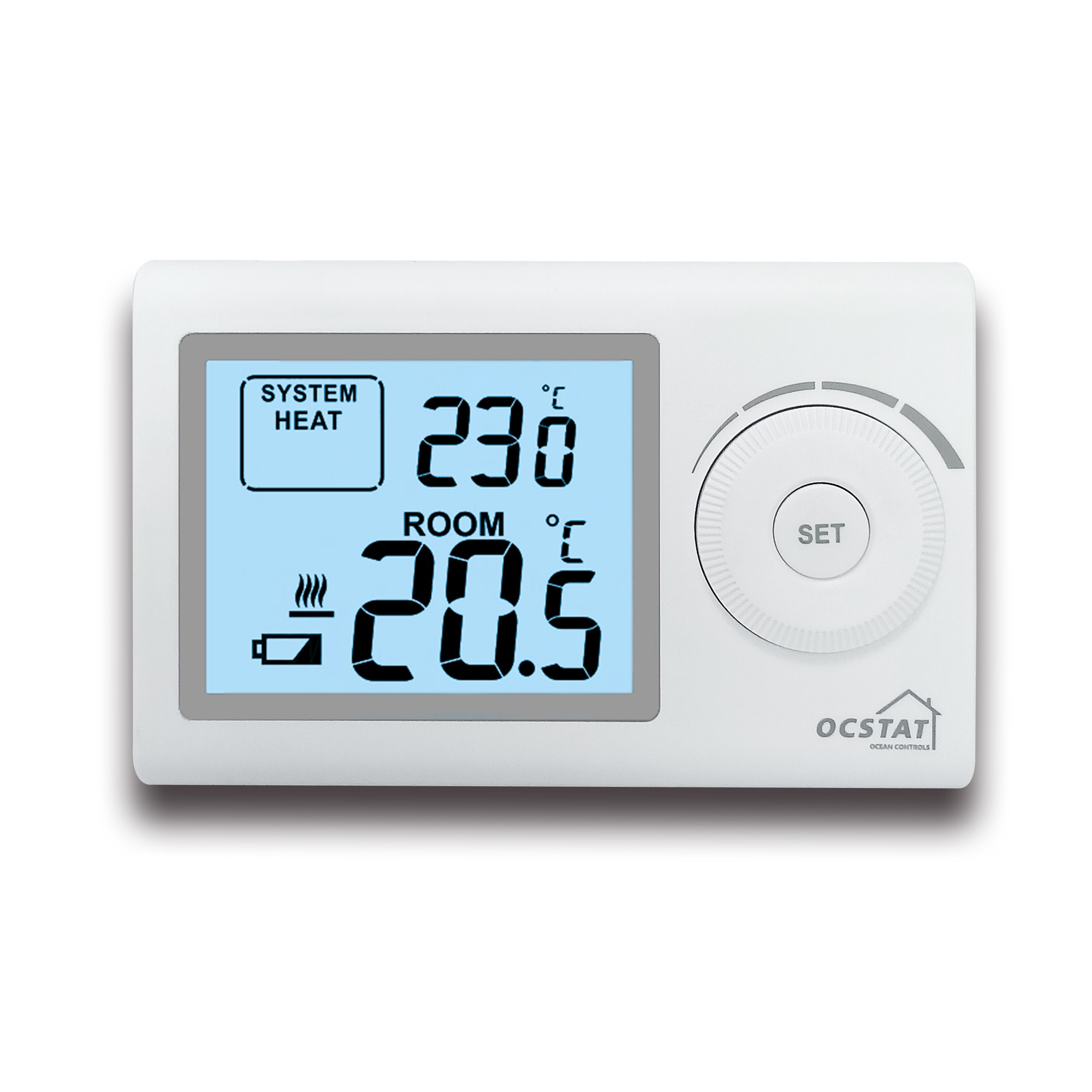

                                                                                           Heating / Cooling Non-Programmable, with backlightS2403 Wired 0




The digital thermostat is ideal to control the temperature of any room(bedroom, kitchen, etc.) and is very easy to use. Allows for the operation of heating / cooling equipment, when the temperature of the environment to be monitored is lower/higher than a user-preset reference temperature. Very easy installation according to the step by step manual instruction. Mounting and connection can be made either by a technician or any other person.


IMPORTANT: carefully read the manual of use before the installation and follow the precautions when using the product.


Precautions on battery use

  • Use only batteries of indicated size and voltage.
  • Make sure you plug the batteries observing the correct polarity as indicated in the battery compartment. Battery connection with incorrect polarity may damage the thermostat.
  • Do not mix different types of batteries such as an alkaline and a zinc carbon, or old batteries with new batteries.
  • If you expect not to use the thermostat for a long period, disconnect it from the equipment and remove the batteries to prevent damage resulting from possible battery leakage.


Precautions on installation and use of the thermostat

  • The digital thermostat is exclusively for indoor use (closed rooms, garages, porches etc.). Do not install outdoor or in locations directly exposed to rain.
  • Do not install in places with high humidity.
  • The thermostat can operate one device only. The connection of several equipment in cascade or in series (for example, a heater and a fan) does not guarantee the correct functioning of the device.
  • Cut off mains power before connecting any device.
  • Use the utmost caution when making wirings for connection with equipment and electricity mains: a wrong connection or unreliable shielding of electrical cables may cause damage to the device and jeopardize your safety.


Note: the manufacturer waives any responsibility for damage caused by improper installation or use of the device other than described in this manual.






1.Programmability: Non-programmable

2.Display Temperature Range:0°C~40°C (in 0.1°C increments)

3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)

4.Temperature measurement accuracy: ±1°C (at 20°C)

5.Power Supply: DC 2x AAA 1.5V Alkaline Batteries

6.Load Rating: 6(2)A, 230V

7.Low Battery Indicator: Display “Heating / Cooling Non-Programmable, with backlightS2403 Wired 1“ when battery is less than 2.7V

8.Standby current:25uA, Lighting current ≤5.5mA

9. Dimensions: 120 x 77 x 28 mm

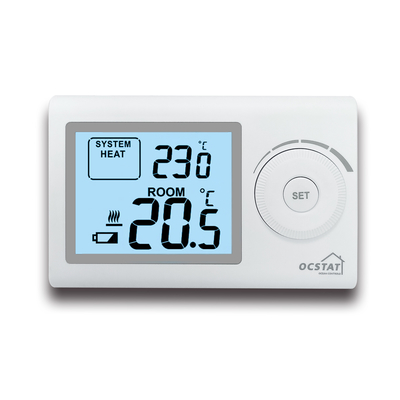

LCD Display

Heating / Cooling Non-Programmable, with backlightS2403 Wired 2
