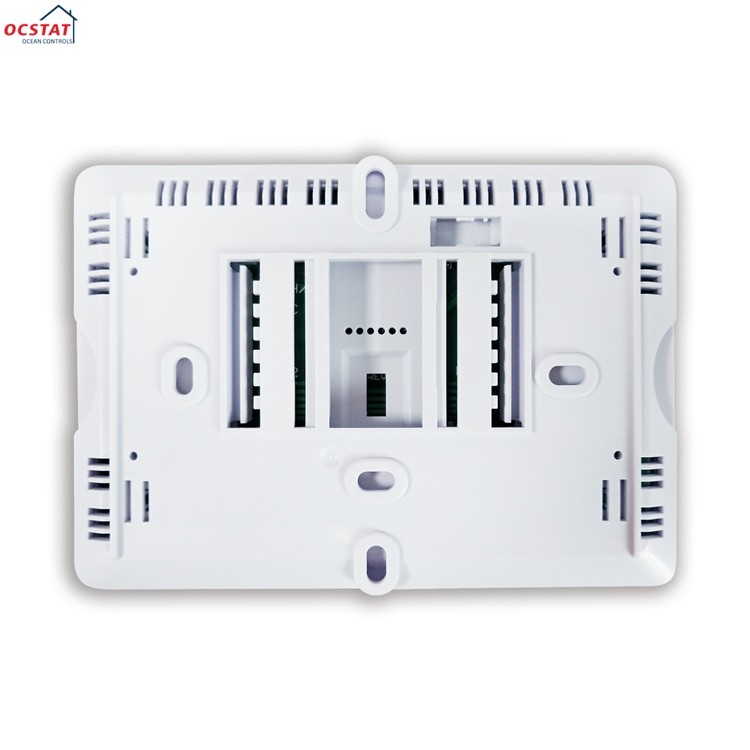

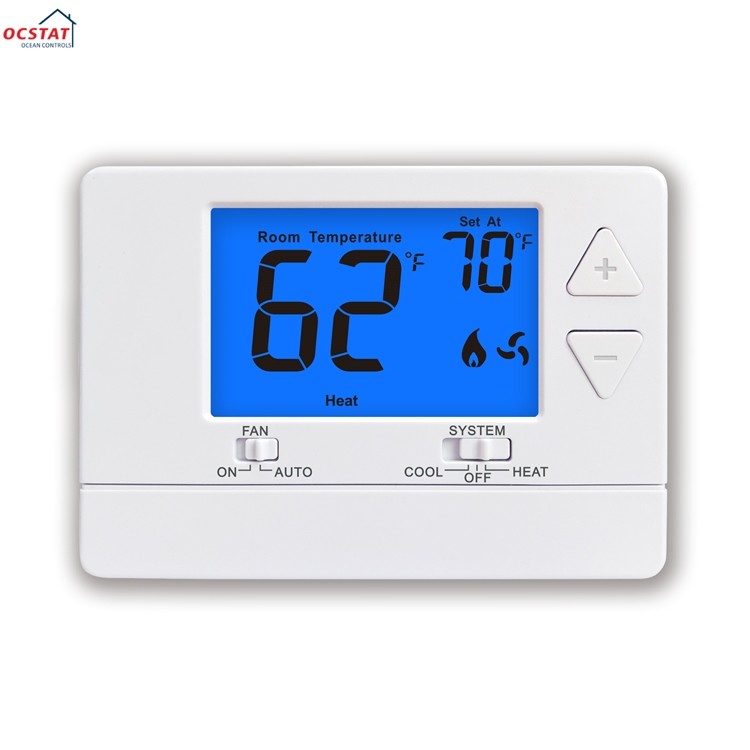

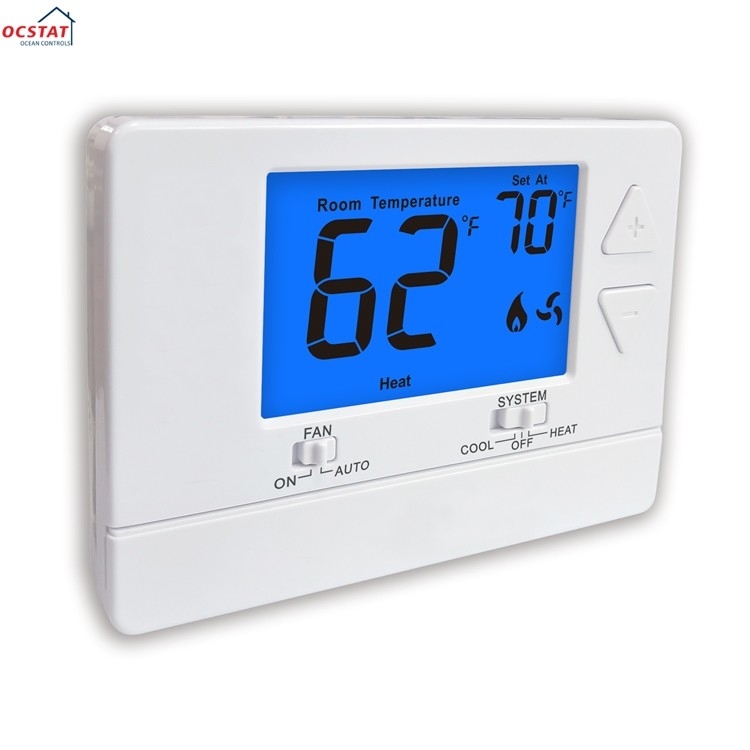

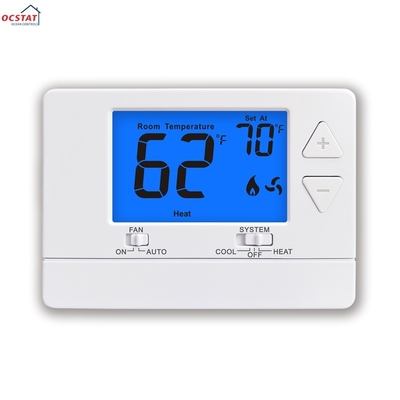

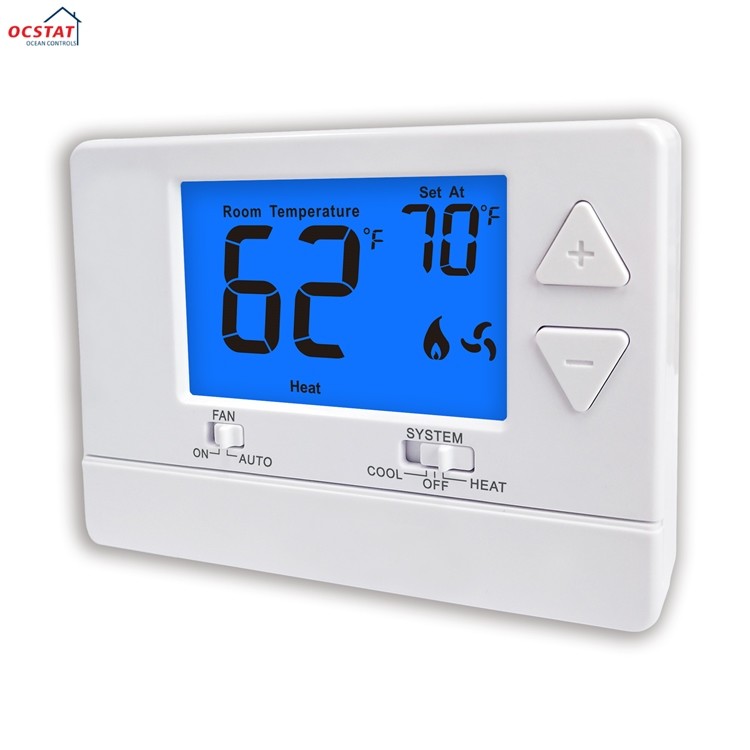

ABS LCD Display Air Conditioner Thermostat for HVAC Room 24V 60Hz

Basic Information
Place of Origin: Guangdong China
Brand Name: OCSTAT
Certification: CE RoHS ISO
Model Number: 3001
Minimum Order Quantity: 1 sample / negotiable
Price: negotiable
Packaging Details: one piece per box, 40 boxes per carton
Delivery Time: 7-60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Detail Information
Power: 24VAC Disply: LCD
Material: ABS+PC Type: HVAC Systems
Shape: Square Sensor: NTC
OEM: Support Feature: Energy Saving
High Light:

60Hz Air Conditioner Thermostat


24V Air Conditioner Thermostat


ABS Wired Room Thermostat

Product Description

LCD Display Air Conditioner HVAC System Room thermostats 24V



  Thermostat refers to a series of automatic control components that produce certain special effects and produce turn-on or turn-off actions according to the physical deformation inside the switch according to the temperature change of the working environment. It is also called temperature control switch and temperature protector. , Temperature controller, referred to as thermostat. Or the temperature is transmitted to the temperature controller through the temperature protector, and the temperature controller issues a switch command to control the operation of the equipment to achieve the desired temperature and energy saving effect.




  1. Model No.: STN3001
  2. Programmability: Non Programmable
  3. Temperature Range (˚F): 32˚F-99˚F (1°C-40°C)
  4. Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C)
  5. Temp.Meas.Accuracy: ±1°C (at 20°C)
  6. Power Source: DC 2 x AAA 1.5V Alkaline batteries
  7. 24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)
  8. Dimensions: 138 x98 x28 mm



• 1 Heat / 1 Cool

• Non programmable

• Batteries or 24V power

• Large, easy to read clear LCD display
• Various backlight color optional

• Electric or Gas configurable

• Separate B & O terminals

• Separate heating and cooling swing (cycle rate) adjustments

• Room temperature calibration adjustable

• 5 minute compressor delay protection (selectable on or off)

• Contemporary design





When the Bat-low indicator appears, replace your 2x AA batteries immediately. Failure to do so may result in your heating & cooling system becoming inoperable.Freezing or overheating will occur.



- About OEM/ODM optional:


1) Customized designs, materials & colors available

2) Special Design service provided by our R&D department

3) We provide new program development.




ABS LCD Display Air Conditioner Thermostat for HVAC Room 24V 60Hz 0


ABS LCD Display Air Conditioner Thermostat for HVAC Room 24V 60Hz 1




1 If you find something wrong with the product, please contact us immediately.
2 Engineer will checking the issues, we will inform the customer result of issue.
3 For small issue quantity our after-sales department will fix or replace the qualified products for you, and sent the product back to you immediately.
4 For big issue quantity, our after-sales department will replace the qualified products in your next order shipments.



Company Information:


  Ocean Controls Limited, is based on a former with 15 years experience in designing/manufacturing top-end electronic room thermostat. We can develop new items according to buyer's requirements. We welcome ODM and OEM Business Cooperation. Our products have high quality, fashionable styles and reasonable prices. All the production of crystal through the CE, RoHs, ISO certification. They are well accepted in domestic market and have been exported to the United States, Britain, Germany, Spain. Switzerland and so on.


ABS LCD Display Air Conditioner Thermostat for HVAC Room 24V 60Hz 2
