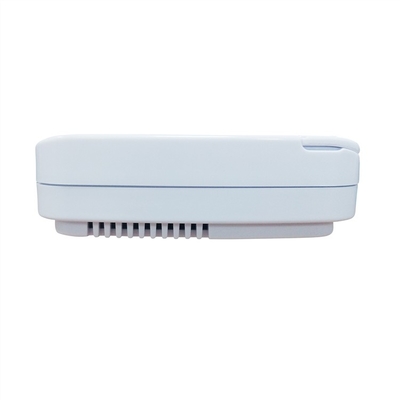

230V LCD Programmable Electronic Room Thermostat With NTC Sensor

Basic Information
Place of Origin: Guangdong China
Brand Name: OEM
Certification: CE RoHS ISO
Model Number: E7-H
Minimum Order Quantity: 1 sample / negotiable
Price: negotiable
Packaging Details: one piece per box, 40 boxes per carton
Delivery Time: 7-60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Detail Information
Voltage: 230V Display: LCD
Feature: 7 Days Programmable Save Energy Material: ABS+PC
Sensor: NTC Application: Water Heating System
Type: Floor Heating Parts Display Accuracy: 0.5C
High Light:

Programmable Electronic Room Thermostat


NTC Electronic Room Thermostat


230V Electronic Room Thermostats

Product Description

230V LCD Programmable Heating and Cooling Electronic Room Thermostat NTC Sensor


E7 User Manual EN.pdf


This is a 230V hvac system room thermostat, which is easy using and operation.

This type thermostat complies with the requirements of EU standards.



  •  switchable voltage: 24 V AC / DC,…250 V AC; 50 Hz
  •  switch able current: 8A (2A inductive load)
  •  temperature measurement range: 3 to 45°C (in 0. 1°C increments)
  •  adjustable temperature range: 5 to 40°C (in 0.5°C increments)
  •  temperature measurement accuracy: ±0.5°C
  •  selectable switching sensitivity: ±0.2°C (for radiat or-based heating systems) +0.1/-0.2°C(for under flfloor heating)
  • storage temperature: -10°Cto+60°C
  • power supply voltage: 2x1.5V AA alkaline batteries (LR6 type)
  • power consumption: 1.3mW
  • battery lifetime: approx.1year
  • dimensions: 119 x 80 x 31mm
  • weight: 147 g
  • temperature sensor type: NTC 10Kohm ±1% at 25°C


-About OEM/ODM optional:


1) Customized designs, materials & colors available
2) Special Design service provided by our R&D department
3) We provide new program development.


LCD Display:


230V LCD Programmable Electronic Room Thermostat With NTC Sensor 0


230V LCD Programmable Electronic Room Thermostat With NTC Sensor 1230V LCD Programmable Electronic Room Thermostat With NTC Sensor 2




1.Inner package:Chinese/English/neutral package,special requirements based on clients.

2.Outer package:standard exporting package,special requirements based on clients.

3.One pcs per box.


1.7-60 days,according to the quantity and our stock.

2.Usually by express,such as TNT,DHL,UPS,EMS,PEDEX,etc.Will take about a week from sending to get to your address.

3.Warranty:We are responsible for any defects in quality or workmanship within one year and repair them free of charge within one year.


Our Services:


1.We have more then ten years experience in manufacturing thermostat.

2.We have our own manufacturing factory,and each part of the manufacturing chain is mature and independent.

3.We are able to provide big order and customized product.

4.We have own R & D department,so we are capable to undertake the OEM service.


230V LCD Programmable Electronic Room Thermostat With NTC Sensor 3

230V LCD Programmable Electronic Room Thermostat With NTC Sensor 4





Q1: What's the minimum quantity?
A: 500 pcs, but if you have sample order less than 500 pcs, we can also help you, so strictly speaking we haven't minimum quantity limit, just the more quantities the cheaper.

Q2: Are we factory or trade company?
A: We are professional manufacturer and we have factory.

Q3: Can we custom produce according to client's request?
A: Yes, we accept OEM.

Q4: How can we pay?
A: We accept L/C, T/T, Western Union, PayPal.

Q5: How can we deliver our goods?
A: Express delivery (DHL,UPS,FEDEX,TNT), air delivery, sea delivery.
We can suggest the economic solution according to your request.
