Product Details:

Place of Origin: GuangDong
Brand Name: OCSTAT
Certification: CE,ROHS
Model Number: S2402

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US$13.2-13.5
Packaging Details: Standard exporting package
Delivery Time: 7-50days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/mouth
Get Best Price Contact Now

Detail Information

Type: Floor Heating Parts, Floor Heating Systems, Floor Heating Thermostats, Bat-low Indicator, HVAC Systems Color: White
Floor Heating Part Type: Floor Heating Thermostats, Floor Heating Cables, Floor Heating Panels, Under Flooring Heating System Application: Underfloor Heating System, Water Heating/Electric Heating System/Boiler, Indoor Underfloor Heating, Electric Underfloor Heating System.Radiant Heating Room Thermostat, Water Heating System

Product Description

7 Day programmable 6 Time & 6 Temp,per day, with backlight S2402 0

Specification



1.Programmability: Non-programmable

2.Display Temperature Range:0°C~40°C (in 0.1°C increments)

3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)

4.Temperature measurement accuracy: ±1°C (at 20°C)

5.Power source: TX: 2x AAA 1.5V Alkaline Battery

6.Load Rating: 6(2)A, 230V

7.Low Battery Indicator: Display “7 Day programmable 6 Time & 6 Temp,per day, with backlight S2402 1“ when battery is less than 2.7V

8.Standby current:25uA, Lighting current ≤5.5mA

9. Dimensions: 120 x 77 x 28 mm

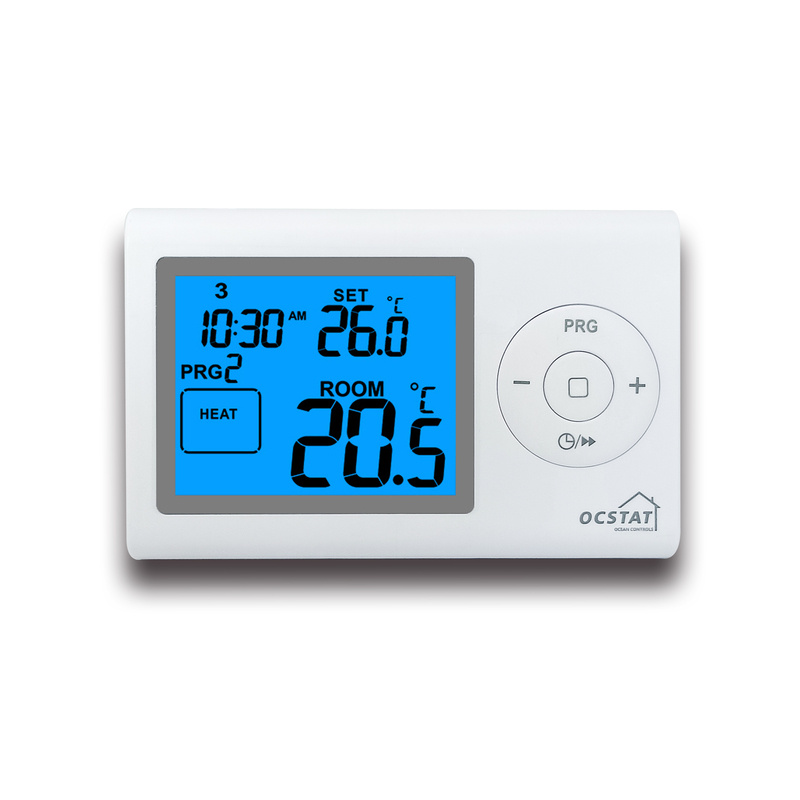

LCD Display

7 Day programmable 6 Time & 6 Temp,per day, with backlight S2402 2



Backlight



The backlight will be ON by turn the dial and OFF if no any operation for 15 seconds.



Manual Setting

1. Turn the dial in clockwise to increase the temperature, and then press the dial to confirm or wait for 5 seconds to automatically confirm.

2. Turn the dial in anti-clockwise to reduce the temperature, and then press the dial to confirm or wait for 5 seconds to automatically confirm.
