2*AA Size Battery RF Electronic Programmable Thermostat For Heating System

Certification
China Ocean Controls Limited certification
China Ocean Controls Limited certification
Stable Quality Excellent Service With Competitive Price Provided

—— Ion

I'm Online Chat Now

2*AA Size Battery RF Electronic Programmable Thermostat For Heating System

2*AA Size Battery RF Electronic Programmable Thermostat For Heating System
2*AA Size Battery RF Electronic Programmable Thermostat For Heating System 2*AA Size Battery RF Electronic Programmable Thermostat For Heating System

Large Image :  2*AA Size Battery RF Electronic Programmable Thermostat For Heating System

Product Details:

Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC
Model Number: Q7RF

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1piece in color box,8pcs in a innex box,2 innex boxs in 1 out carton
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Material: OMRON Relay Volt: 16V
Color: White Programmable: Programmable
Power: 2*AAA Size Battery Contact Rating: 8(2)A 230VAC Max
High Light:

programmable heating thermostat

,

programmable electric thermostat

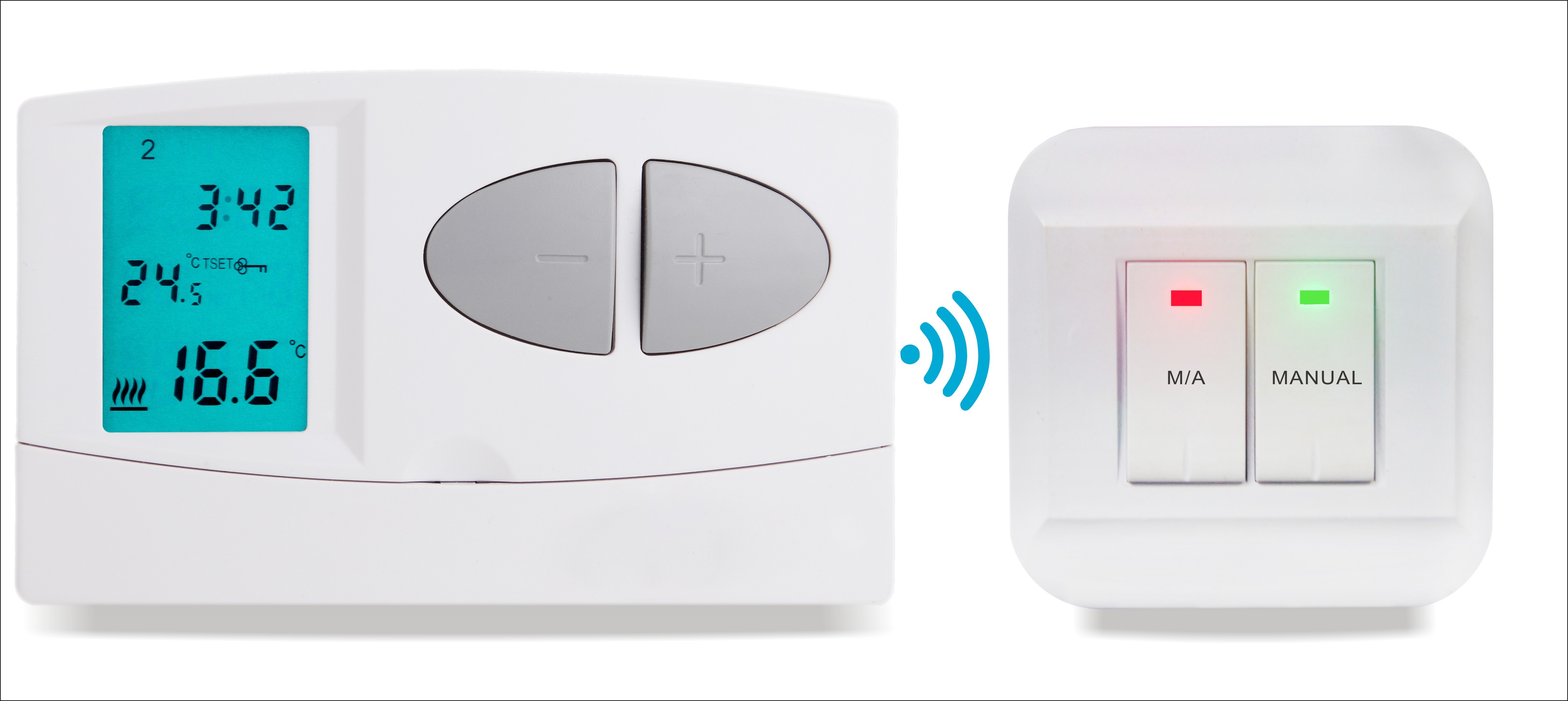

 Model :Q7 RF

Transmitter:                                                Receiver:

1. 2*AA size battery                                     1. AUTO/MANUAL Switch

2. 6 Time & 6 Temp,per day                        2. LED system indicator

3. 7 Day programmable                               3. Contact rating: 8(2)A 230VAC Max

4. 868Mhz for more stable communication

5. EL back light

6. Manual override mode



Description:



◆ Communicates at 868 MHz for stand-alone interface
◆ Transmits up to Beeline distance 660ft(200m)in the field (The distance will shorten if through walls and floors)
◆ 7days programmable, 6 events per day
◆ Backlit display (automatically turns off after 8 seconds of non-use)
◆ Fahrenheit / Centigrade
◆ 24Vac,110Vac,230Vac power supplied Controller
◆ Easy Installation





Model No.:

Q7 RF

Transmitter:



Operating Frequency:

868.35 MHz

Programmability:

Programmable

Temperature Range (℃):

5℃-35℃ in 0.5℃

Control Temp.Range (℃):

10℃-30℃ in 0.5℃

Temp.Meas.Accuracy:

±0.5°C

Sensitivity:

±0.2°C / ±0.3°C

 Storage Temperature:

-10°C to +60°C

Power Method:

2x1.5 V AA alkaline batteries (LR6 type)

Power Consumption:

1.3 mW

Dimensions:

130 x 80 x 35mm (without holder)

Temp. Sensor Type:

NTC 10 kΩ ±1% at 25°C

 Receiver:



Power Consumption:

6W

Power Supply Voltage:

230V AC, 50Hz

Switchable Voltage:

24 V AC / DC,…250 V AC; 50 Hz

Switchable Current:

6 A (2 A inductive load)

Transmission Distance:

approx. 50 m in open terrain
