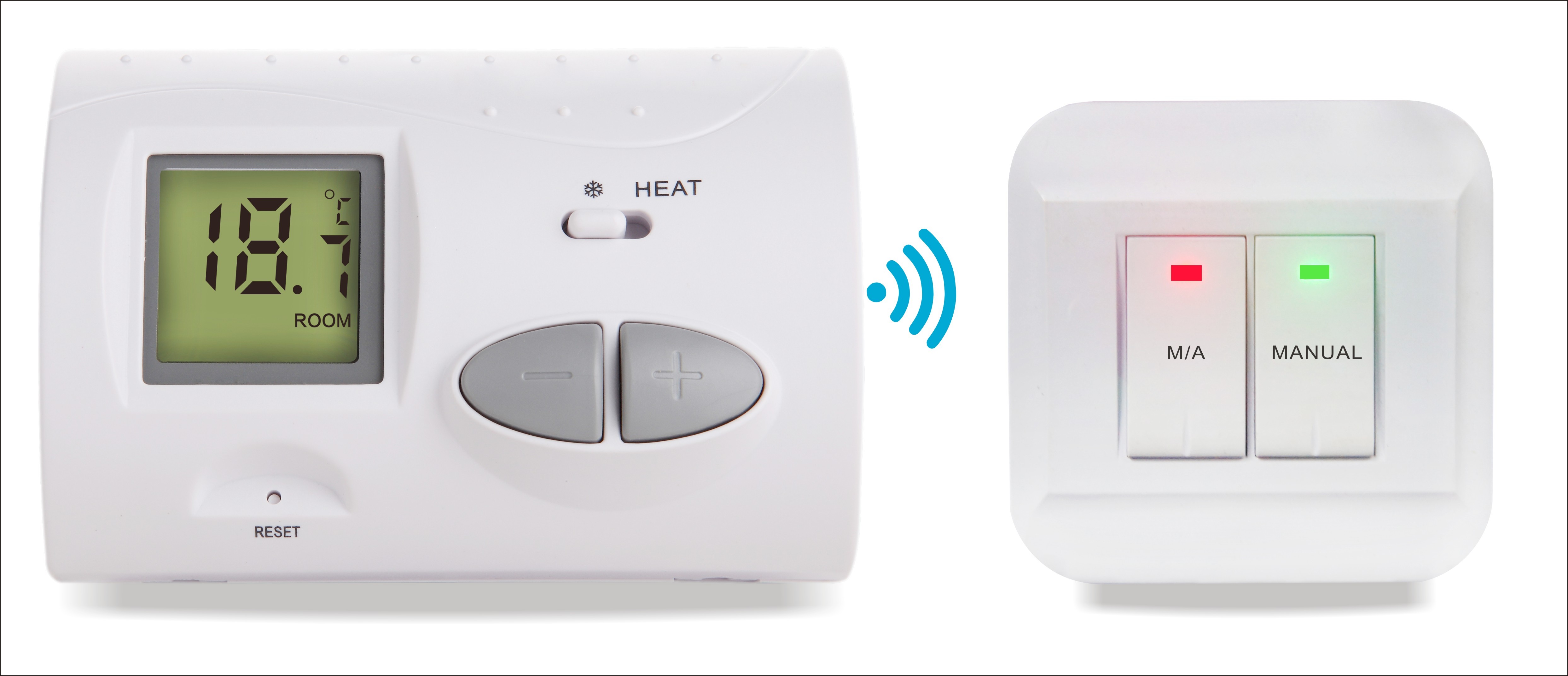

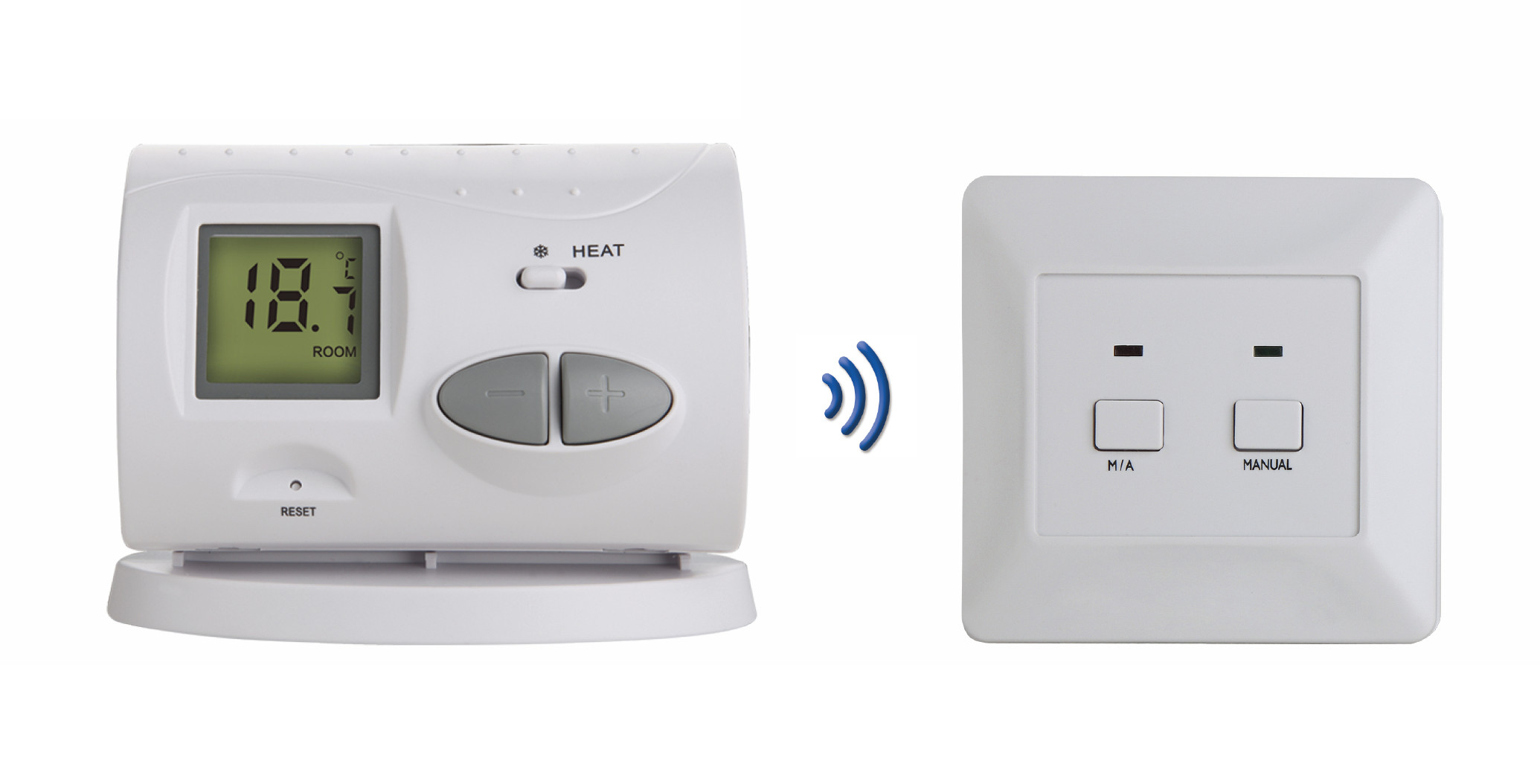

Wall Mount Wireless Non Programmable Thermostat For Combi Boiler

Wall Mount Wireless Non Programmable Thermostat For Combi Boiler
Wall Mount Wireless Non Programmable Thermostat For Combi Boiler Wall Mount Wireless Non Programmable Thermostat For Combi Boiler

Large Image :  Wall Mount Wireless Non Programmable Thermostat For Combi Boiler

Product Details:

Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC ROHS
Model Number: Q3RF

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1PCS in color box,8pcs in innex carton,2 innex carton in 1 out carton
Delivery Time: 30 WORK DAYS
Payment Terms: T/T
Supply Ability: 100000SET PER MONTH
Detailed Product Description
VOLT: 230V MHZ: 868MHZ
Material: OMRON Relay Color: White
Programmable: Non Programmable Blacklight: No Blacklight
High Light:

non programmable digital thermostat

,

Non - programmable Wireless thermostat





 Model Q3 RF



  Transmitter:                                                   Receiver:

1. POWER:2*AA size battery                            1.  AUTO/MANUAL Switch

2. Temperature range:5℃-35℃ in 0.5℃           2. LED system indicator

3. Control temp.range:10℃-30℃ in 0.5℃         3. Contact rating:8(2)A 230VAC Max

4. 868Mhz for more stable communication

5. ON/OFF switch

6. Bat-low indicator



Applications:

1. HVAC System

2. Building ventilation systems

3. Industry ventilation systems

4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication  heat/cool

5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%

6. All other ventilation systems



Model No.:

Q3 RF

Transmitter:



Operating Frequency:

868.35 MHz

Programmability:

Non-Programmable

Temperature Range (℃):

5℃-35℃ in 0.1℃

Control Temp.Range (℃):

10℃-30℃ in 0.5℃

Temp.Meas.Accuracy:

±0.5°C

Sensitivity:

±0.2°C / ±0.3°C

Defrosting Temperature:

+7°C

Power Method:

2x1.5 V AA alkaline batteries (LR6 type)

Power Consumption:

1.5 mW

Dimensions:

112 x 75 x 45 mm

Temp. Sensor Type:

NTC 10 kΩ ±1% at 25°C

 Receiver:



Power Consumption:

6W

Power Supply Voltage:

230V AC, 50Hz

Switchable Voltage:

24 V AC / DC,…250 V AC; 50 Hz

Switchable Current:

6 A (2 A inductive load)

Transmission Distance:

approx. 50 m in open terrain
