Heat Only Digital Programmable Thermostat With Heat Pump And Large Screen

China Heat Only Digital Programmable Thermostat With Heat Pump And Large Screen supplier
Heat Only Digital Programmable Thermostat With Heat Pump And Large Screen supplier Heat Only Digital Programmable Thermostat With Heat Pump And Large Screen supplier

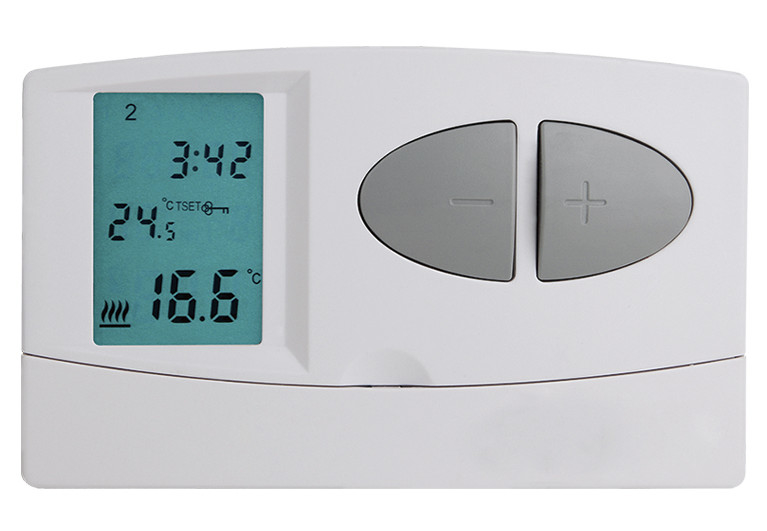

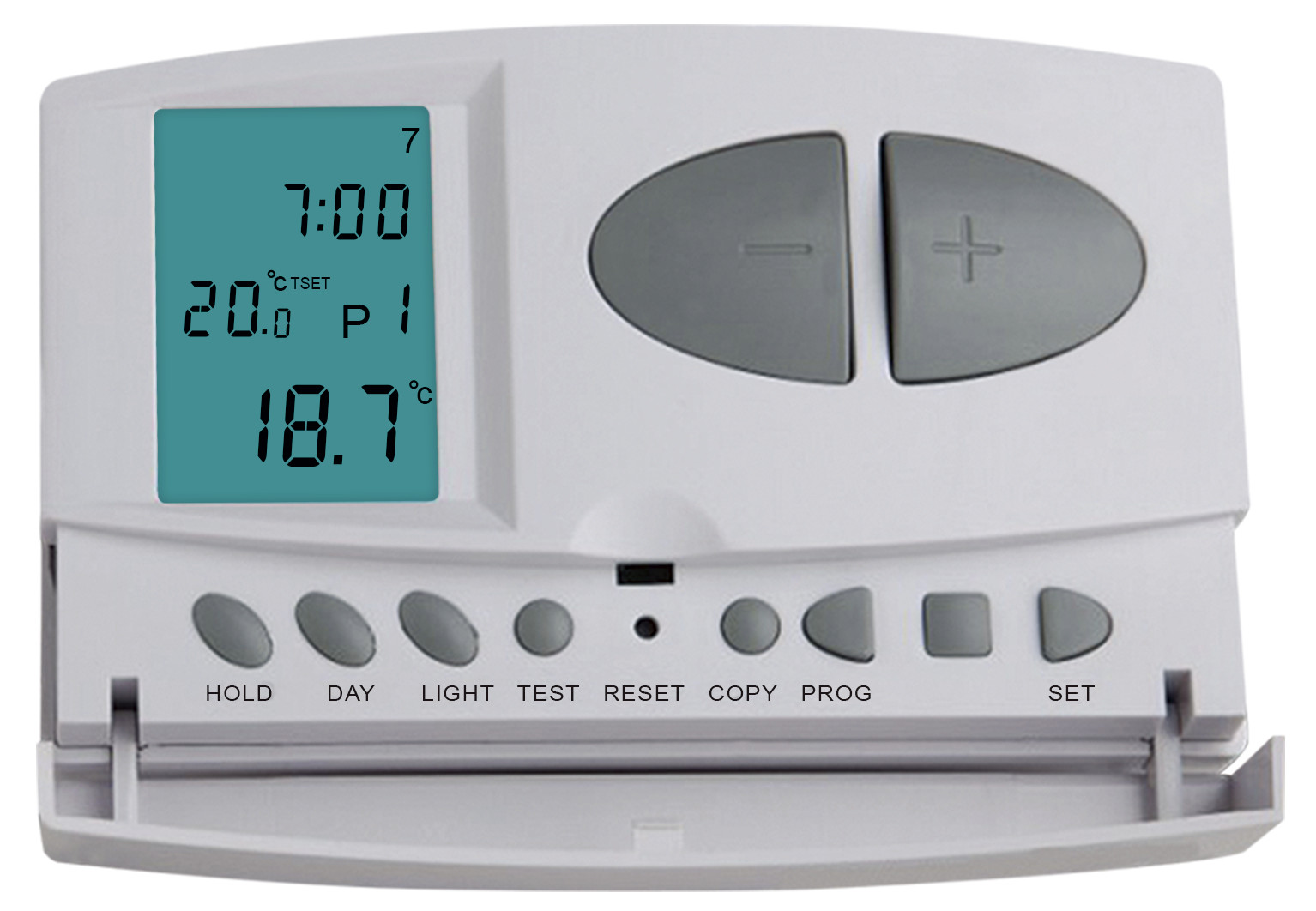

Large Image :  Heat Only Digital Programmable Thermostat With Heat Pump And Large Screen

Product Details:

Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC
Model Number: Q7

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1 piece in color box,8pcs in innex box,2 innex boxes in 1 out carton
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Color: White Votl: 16V
Programmable: Programmable Power: 2*AAA Size Battery
Contact Rating: 8(2)A 230VAC Max Material: OMRON Relay



 Model :Q7

1. 7 Day programmable

2. 6 Time & 6 Temp,per day

3. EL back light

4. Manual override mode

5. 2*AA size battery

6. Contact rating: 8(2)A 230VAC Max

Model No.:

Q7

Switchable Voltage:

24 V AC / DC,…250 V AC; 50 Hz

Switchable Current:

8 A (2 A inductive load)

Programmability:

7 Day Programmable

Temperature Range (℃):

5℃-35℃ in 0.5℃

Control Temp.Range (℃):

10℃-30℃ in 0.5℃

Temp.Meas.Accuracy:

±0.5°C

Sensitivity:

±0.2°C / ±0.3°C

 Storage Temperature:

-10°C to +60°C

Power Method:

2x1.5 V AA alkaline batteries (LR6 type)

Power Consumption:

1.3 mW

Dimensions:

130 x 80 x 35mm

Temp. Sensor Type:

NTC 10 kΩ ±1% at 25°C

Heat Only Digital Programmable Thermostat With Heat Pump And Large Screen
