Underfloor Heating Digital Thermostat , Digital Furnace Thermostat

China Underfloor Heating Digital Thermostat , Digital Furnace Thermostat supplier

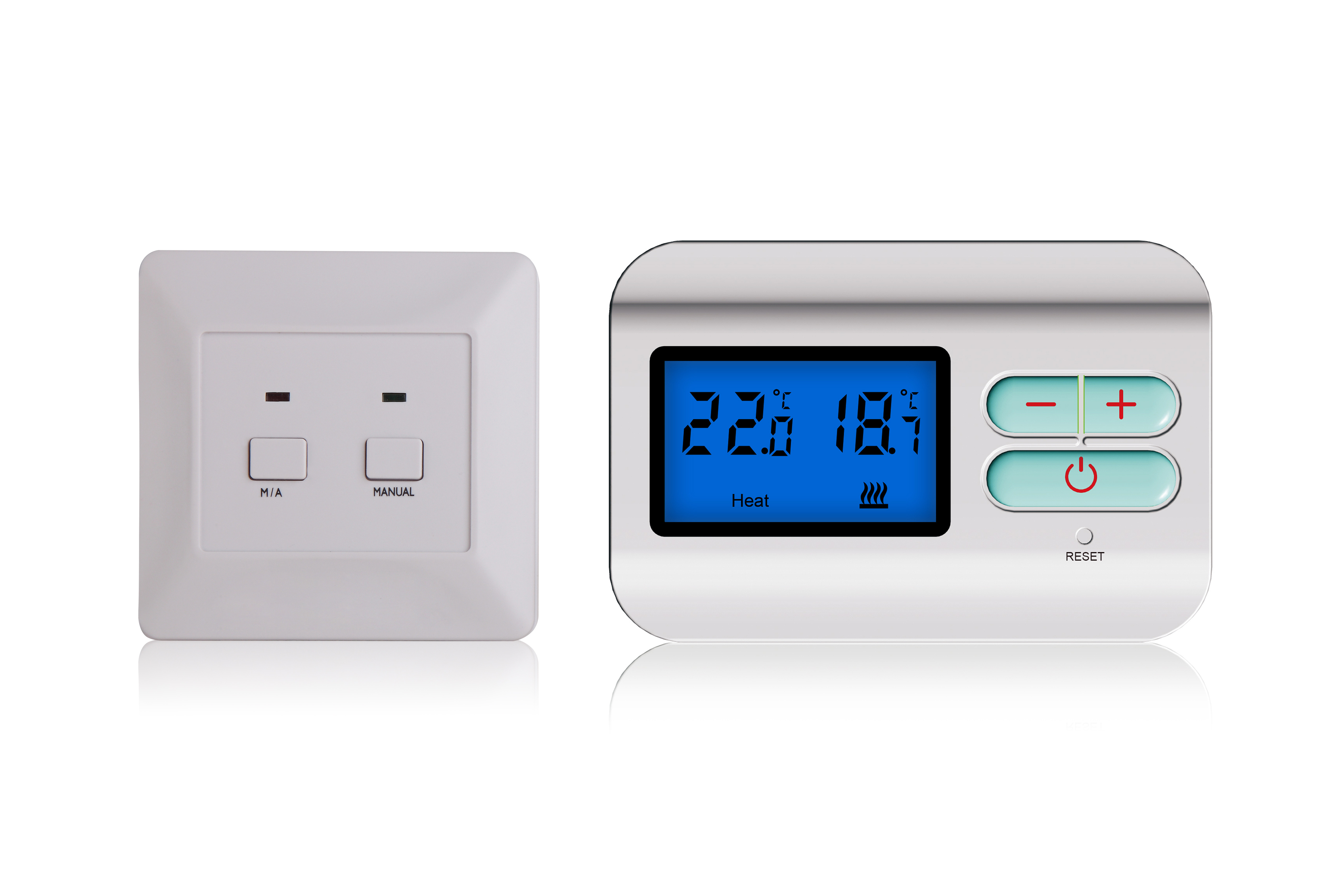

Large Image :  Underfloor Heating Digital Thermostat , Digital Furnace Thermostat

Product Details:

Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC
Model Number: S2301RF

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: I piece in color box,8pcs in innex box,2 innex boxes in 1 out carton
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Material: OMRON Relay VOLT: 16V
Color: White Programmmable: Non Programmable
POWER: 2*AAA Size Battery Contact Rating: 8(2)A 230VAC Max



 Mode:S2301 RF

Transmitter:                                                Receiver:

1. POWER:2*AAA size battery                          1. AUTO/MANUAL Switch

2. Temperature range:5℃-35℃ in 0.5℃           2. LED system indicator

3. Control temp.range:10℃-30℃ in 0.5℃         3. Contact rating:8(2)A 230VAC Max

4. 868Mhz for more stable communication

5. HEAT/OFF/COOL switch

6. Bat-low indicator



Applications:

1. HVAC System

2. Building ventilation systems

3. Industry ventilation systems

4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication

heat/cool

5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%

6. All other ventilation systems

Model No.:

S2301 RF

Transmitter:



Operating Frequency:

868.35 MHz

Programmability:

Non-Programmable

Temperature Range (°C):

0°C-40°C in 0.1°C

Control Temp.Range (°C):

5°C-35°C in 0.5°C

Temp.Meas.Accuracy:

±1°C (at 20°C)

Defrosting Temperature:

+7°C

Power Method:

2 x AAA 1.5V Lithium batteries

Dimensions:

118 x 80 x 26 mm

(without holder)

 Receiver:



Power Consumption:

6W

Power Supply Voltage:

230V AC, 50Hz

Switchable Current:

6 A (2 A inductive load)

Transmission Distance:

approx. 50 m in open terrain

Dimensions:

86 x 86 x 26 mm

Underfloor Heating Digital Thermostat , Digital Furnace Thermostat
