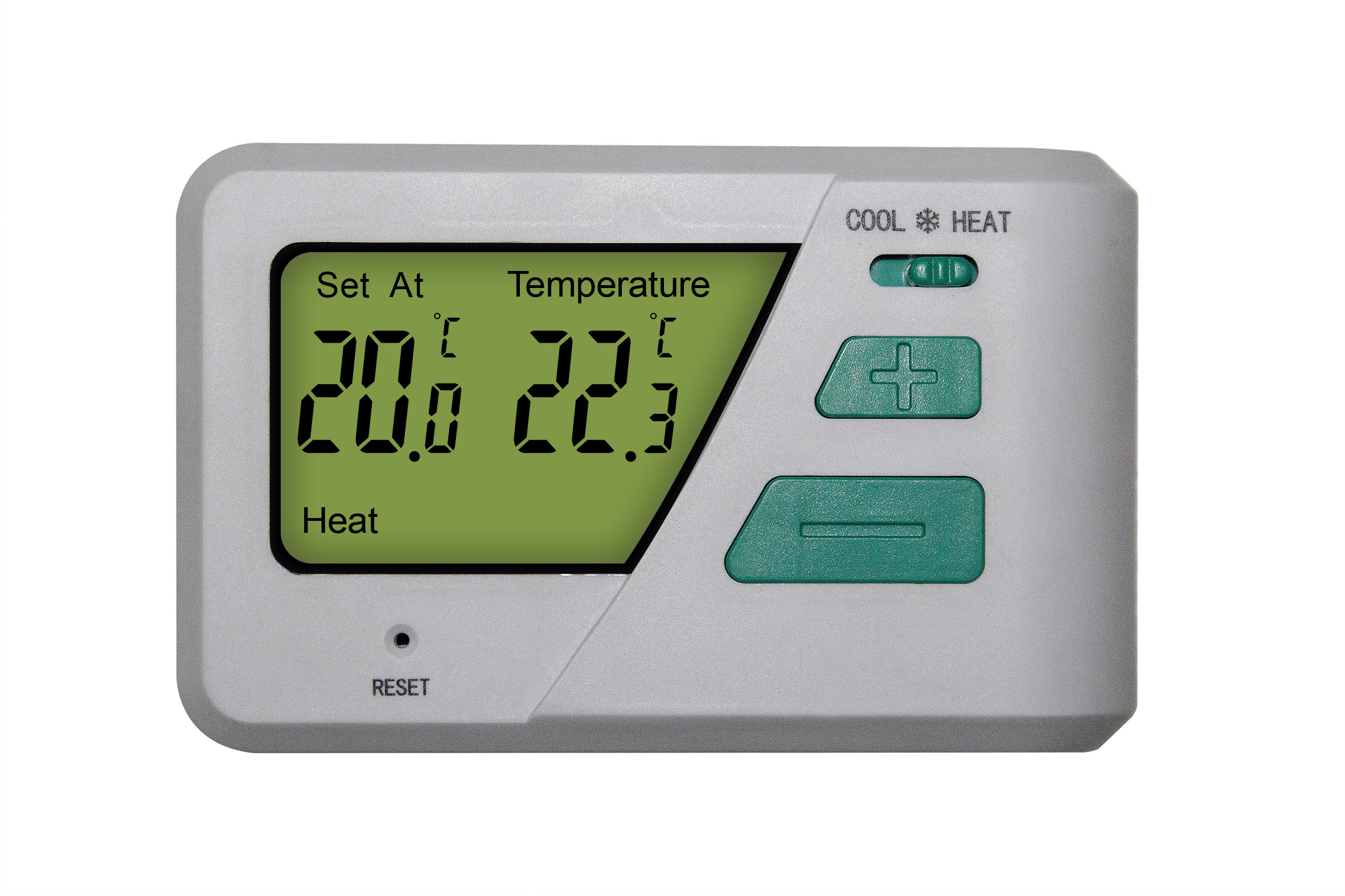

Non - Programmable Boiler Room Thermostat For Heating And Air Conditioning

Basic Information
Place of Origin: CHINA
Brand Name: OEM ODM
Certification: CE LVD EMC
Model Number: S2305RF
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 1 piece in color box,8 pcs in innex box,2 innex boxex in out carton
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detail Information
Metariel: OMRON Programmable: Non-programmable
Backlight: LED Bule Backlight VOLT: 16V
AMP: 10A HEAT/COOL: HEAT/COOL Switch
Key Color: Grey Key Green Key Purple Key
High Light:

gas boiler thermostat

,

combi boiler wireless thermostat


Product Description



 Mode: S2305RF

Transmitter:                                                          Receiver:

1. POWER:2*AA size battery                                  1. AUTO/MANUAL Switch

2. Temperature range:5℃-35℃ in 0.5℃                 2. LED system indicator

3. Control temp.range:10℃-30℃ in 0.5℃               3. Contact rating:8(2)A 230VAC Max

4. 868Mhz for more stable communication

5. HEAT/OFF/COOL switch

6. Bat-low indicator



Model No.:

S2305 RF

Transmitter:



Operating Frequency:

868.35 MHz

Programmability:

Non-Programmable

Temperature Range (°C):

0°C-40°C in 0.1°C

Control Temp.Range (°C):

5°C-35°C in 0.5°C

Temp.Meas.Accuracy:

±1°C (at 20°C)

Defrosting Temperature:

+7°C

Power Method:

2x1.5 V AA alkaline batteries (LR6 type)

Dimensions:

118 x 73 x 34 mm (without holder)

 Receiver:



Power Consumption:

6W

Power Supply Voltage:

230V AC, 50Hz

Switchable Current:

8 A (2 A inductive load)

Transmission Distance:

approx. 50 m in open terrain

·

        Wireless Room Thermostat

        Transmitter:

·       868Mhz with more stable communication

·       Blue/green backlight

        · HEAT (Heating) / COOL (Cooling) / OFF (Frost Protection )

        · Wall mount or base mount

·        Room Temperature Calibration adjustment (in -3~+3)

·        Bat-low indicator

       · Battery power supply

         Receiver:

       · AUTO/MANUAL Switch

·        ON/OFF switch

·        LED system indicator

·        Power supply: 230V AC

·        Contact rating:8(2)A 250VAC Max



Applications:

1. HVAC System

2. Building ventilation systems

3. Industry ventilation systems

4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication  heat/cool

5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%

6. All other ventilation systems
