| Place of Origin: | GuangDong |
|---|---|
| Brand Name: | OCSTAT |
| Certification: | CE,ROHS |
| Model Number: | ST23RF |
| Minimum Order Quantity: | 1pcs |
| Price: | US$20-22/pcs |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 7-50days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs/mouth |
| Type: | Floor Heating Parts, Floor Heating Systems, WIFI Smart Control, Heating, Wireless Thermostat | Floor Heating Part Type: | Floor Heating Thermostats, RF Boiler Thermostats, Floor Heating Panels |
|---|---|---|---|
| Color: | White | Application: | Underfloor Heating System, Water Heating/Electric Heating System/Boiler, Indoor Underfloor Heating, Electric Underfloor Heating System.Radiant Heating Room Thermostat, Water Heating System |
| Dimensions: | 118 X 80 X 26 Mm(without Holder) | Standby Current: | 5uA, Lighting Current ≤ 4.2mA |
| High Light: | Backlight Non Programmable Thermostat,5uA Non Programmable Thermostat,ALKALINE BATTERY Wireless Room Thermostat |
||
Specification

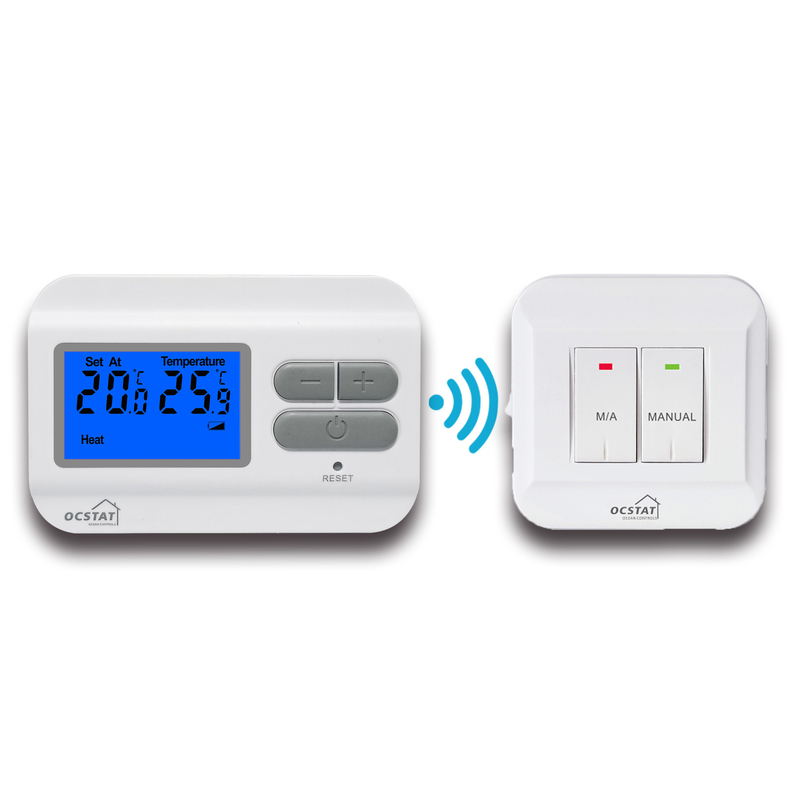

Transmitter / Receiver Wireless Heating / Cooling Non-Programmable, with backlight ST23RF
1.Programmability: Non-programmable
2.Display Temperature Range:0°C~40°C (in 0.1°C increments)
3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)
4.Temperature measurement accuracy: ±1°C (at 20°C)
5.Defrosting Temperature: +7°C
6.Power source: 2x AAA 1.5V ALKALINE BATTERY
RX:230VAC/50HZ
7.Load Rating: 6(2)A, 230V
8.Low Battery Indicator: Display ““ when battery is less than 2.7V
9.Standby current:5uA, Lighting current ≤ 4.2mA
10.Backlight colour: Orange / Blue
11. Operating Frequency:868.35MHZ
12.Transmission Distance: approx. 50m in open terrain
13. Dimensions: 118 x 80 x 26 mm(without holder)
RX: 86 x 86 x 26 mm
LCD Display
Backlight
The backlight will be ON by press any button and OFF if no any press for 15 secs
Running Mode
Switch by press in different mode:
HEAT (Heating): adjust the temperature by press + or -
COOL (Cooling): adjust the temperature by press + or -
OFF (Frost Protection): it will start heating when the room temperature is under 7°C
Settings
1. HEAT SWING: Hold + and - under the “HEAT”mode for 3 secs to enter the interface of Swing setting (in 0.2~2); Press + or - to set the desired value, then press to confirm.
2. COOL SWING: Hold + and - under the “COOL”mode for 3 secs to enter the interface of Swing setting (in 0.2~2); Press + or - to set the desired value, then press to confirm.
3. Calibrate the temperature: Hold + and - under the “OFF”mode for 3 secs to enter the interface of temperature calibration “CAL” (in -3~+3); Press + or - to set the desired value, then press to confirm.
Reset
Press RESET on the front case for 3 secs to restore the factory default settings.
