| Place of Origin: | GuangDong |
|---|---|
| Brand Name: | OCSTAT |
| Certification: | CE,ROHS |
| Model Number: | S2401 |
| Minimum Order Quantity: | 1pcs |
| Price: | US$11-11.5/PCS |
| Delivery Time: | 7-50 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 pcs/month |
| Type: | Other Home Appliance Parts | Color: | White |
|---|---|---|---|
| Floor Heating Part Type: | Floor Heating Thermostats, Floor Heating Cables, Floor Heating Panels, Under Flooring Heating System | Application: | Underfloor Heating System, Water Heating/Electric Heating System/Boiler, Indoor Underfloor Heating, Electric Underfloor Heating System.Radiant Heating Room Thermostat, Water Heating System |
| Dimensions: | 120 X 77 X 28 Mm | Load Rating: | 6(2)A, 230V |
| High Light: | Non Programmable Digital Wired Thermostat,Digital Wired Thermostat With Backlight,1.5V Alkaline Battery Wired Room Thermostat |
||

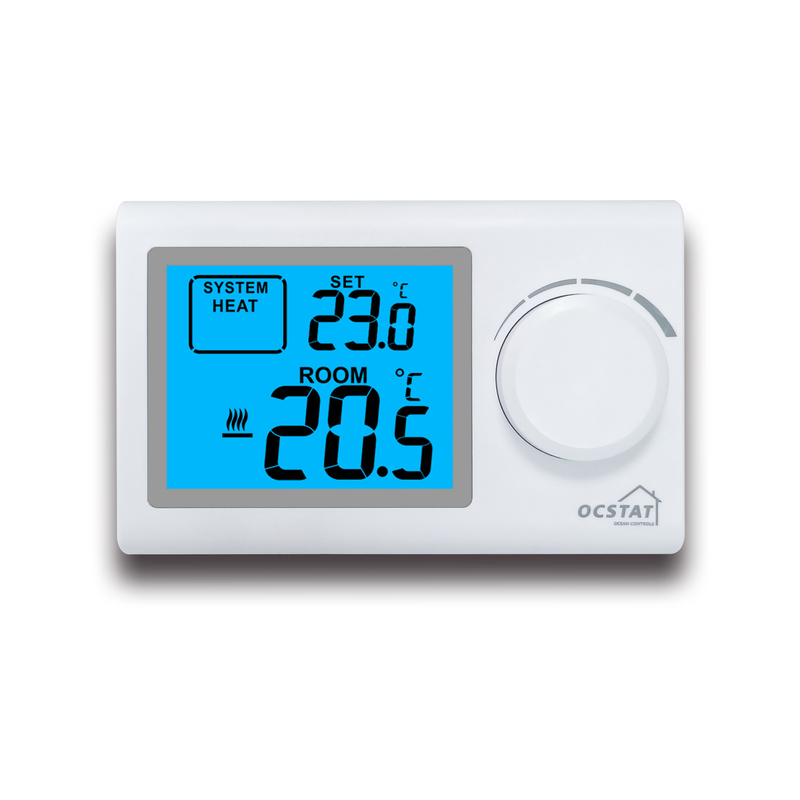

Heating / Cooling Non-Programmable, with backlight S2401 Wired
Specification
1.Programmability: Non-programmable
2.Display Temperature Range:0°C~40°C (in 0.1°C increments)
3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)
4.Temperature measurement accuracy: ±1°C (at 20°C)
5.Power source: TX: 2x AAA 1.5V Alkaline Battery
6.Load Rating: 6(2)A, 230V
7.Low Battery Indicator: Display ““ when battery is less than 2.7V
8.Standby current:25uA, Lighting current ≤5.5mA
9. Dimensions: 120 x 77 x 28 mm
LCD Display
Backlight
The backlight will be ON by turn the dial and OFF if no any operation for 15 seconds.
Manual Setting
1. Turn the dial in clockwise to increase the temperature, and then press the dial to confirm or wait for 5 seconds to automatically confirm.
2. Turn the dial in anti-clockwise to reduce the temperature, and then press the dial to confirm or wait for 5 seconds to automatically confirm.
Running Mode
Hold the dial button for 5 seconds to access the system running mode switch, then turn the dial to choose different mode between:
HEAT (Heating): adjust the temperature by turn the dial
COOL (Cooling): adjust the temperature by turn the dial
OFF (Frost Protection): it will start heating when the room temperature is under 7°C
Then press the dial again to confirm the running mode or wait for 10 seconds to confirm the setting automatically.
